[RUNZEFLUID] SY-03B DK Syringe Pump 시린지펌프 OEM syringe pump
SY03B시리즈

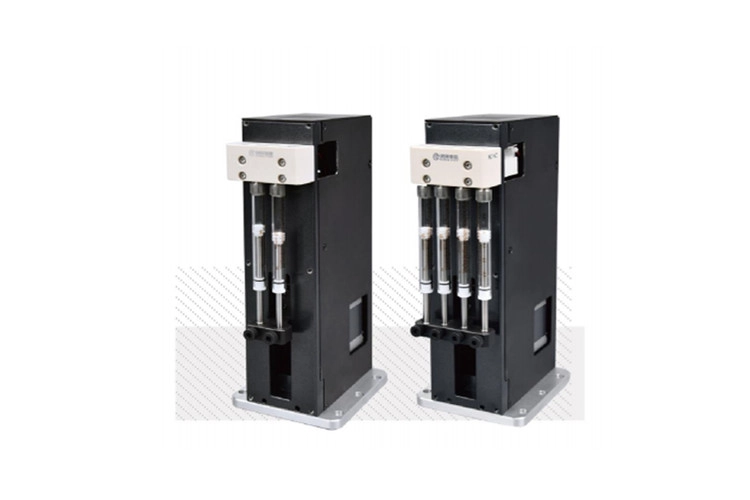

Syringe Pump SY03B in DK Series
SY-03B Dk series product is a kind of micro-syringe pump with multiple syringes working in parallel in high precision developed by Runze Fluid. Use a stepper motor to drive the syringe and the valve to aspirate and dispense quantitative liquid. The syringe is replaceable. It is a fully programmable pump module with the open framework, which handling fluids from microliters to milliliters with extraordinary accuracy and precision. It can be controlled by an external computer or microprocessor, and with functions in automatic pipetting, dilution and dispensing.
SY03B-DK Features at a Glance
Technical Parameter
| Accuracy | <1%@100(rated stroke) |
| Precision(Repeatability) | 0.3%~0.5%@100%(rated stroke) |
| Rated stroke | 60mm |
| Control Steps | 6000 steps(standard mode) / 48000 steps(standard mode) |
| Maximum speed | 900rpm |
| Linear speed | 0.01mm/s ~ 100mm/s |
| Running time(per rated stroke) | 0.67s ~ 6000s |
| Resolution | 0.01mm/1 step |
| Valve type | 3-way solenoid valve |
| Syringe configuration(Optional) | 50μL, 100μL, 250μL, 500μL, 1mL, 1.25mL, 2.5mL, 5mL (Optional Runze K60 Syringe or imported ILS Syringe) |
| Max. Pressure Rating | 0.15Mpa |
| Wetted Material | Borosilicate glass, PTFE, FKM, PPS(PEEK) |
| Actuator | Trapezoidal screw(Lead 6mm) |
| Connection | 1/4-28UNF |
| Baud rate | RS232/RS485: 9600bps / 38400bps |
| Communication address | Up to 15 individual addresses can be provide |
| Power supply | DC24V/3A |
| Operating temperature | 5°C~55°C |
| Operating humidity | <80% relative humidity, non condensing |
| Dimension(L*W*H) | 100*145.5*261.3mm |
| Net weight | 2.2kg |
Video of Syringe Pump SY03B-DK

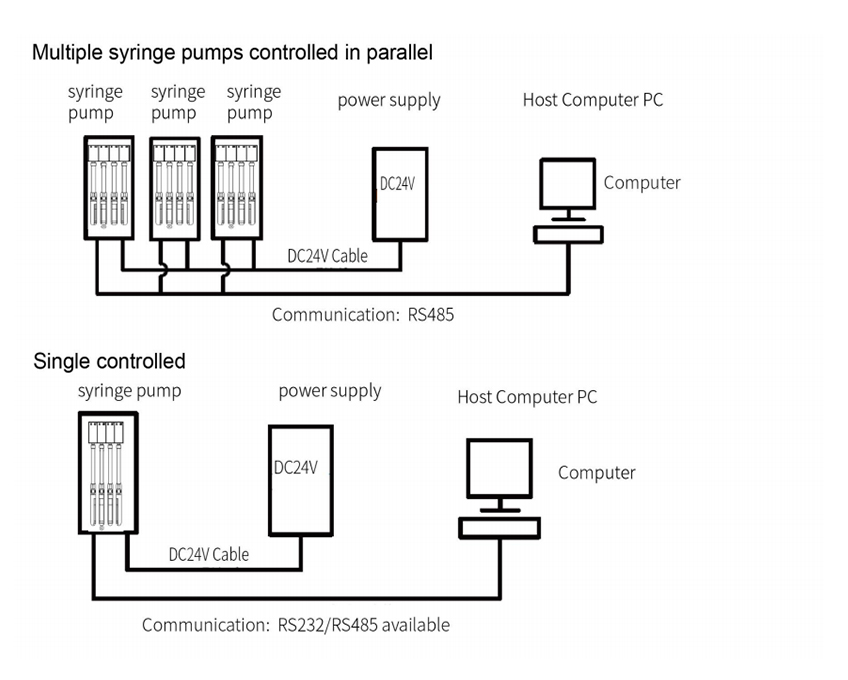

Wiring Diagram

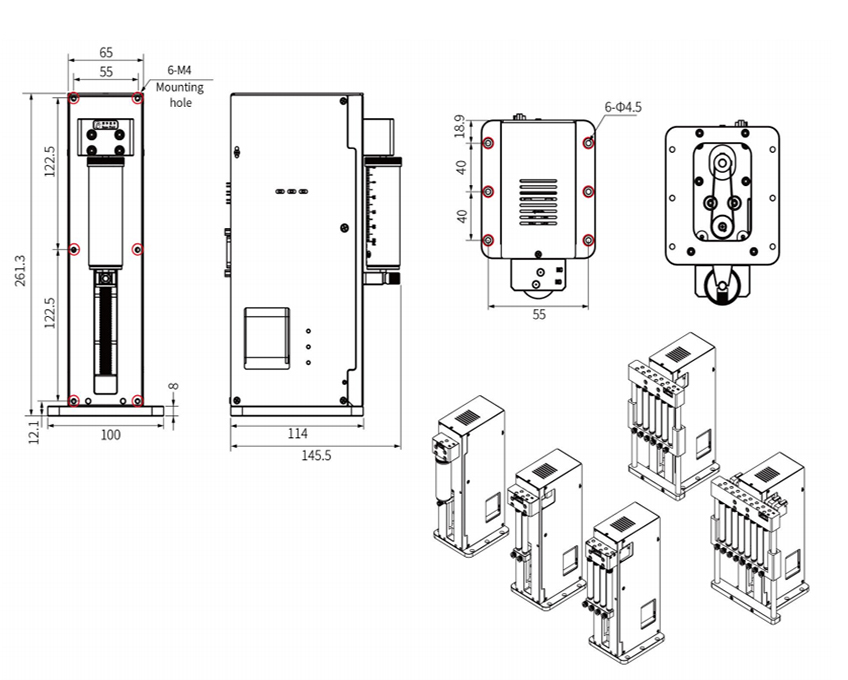

Dimension (unit: mm)
