Designed to divide or gather two fluids together; ideal for pre-assembled tubing
Y-connection geometry reduces turbulence, reduces baseline noise, increases sensitivity, and improves analysis results
Long-term working temperature range -100℃~+250℃
Suitable for standard 10-32UNF conical fittings or 1/4-28UNF flat bottom threaded fittings
REACH and ROHS Certified ,Biocompatibility reports available.
안내사항 |
가격 기재가 되지 않은 별도 문의 상품인 경우 반드시 '온라인 견적문의' 혹은 '전화 문의' 후 구매 부탁드립니다. 설치/교육 신청의 경우 별도의 연락 후 직접 납품 드립니다. |
[Fitting]PEEK Female Thread Y Adapter Fitting Connector UNF 나사탭 아답터 피팅 PEEK 재질 UNF Thread
PEEK Female Thread Y Adapter시리즈
PEEK Female Thread Y Adapter
Peek female thread Y adapter, one of RUNZE newest peek fittings. PEEK is a type of material with high mechanical strength, it is suitable for hydraulic systems that require repeated disassembly and relative high pressure in liquid chromatography and biological analysis instruments.
Features of PEEK Luer Adapter

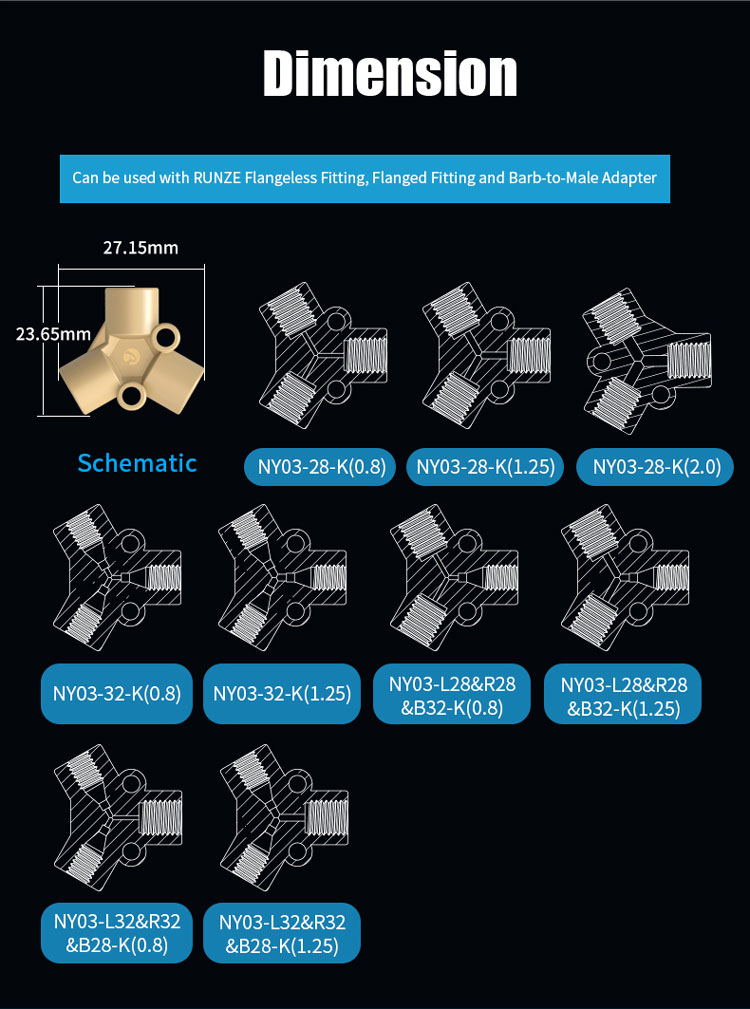

Specifications of PEEK Female Thread Y Adapter
| Photo | Product Code | Product Name | Model No. | Specification | Unit | Material |
 | 1011080007 | PEEK female Y-type tee fitting | NY03-L28&R28&B32-K(1.25) | NY03-L28&R28&B32-K(1.25) | Piece | PEEK |
| 1011080001 | PEEK female Y-type tee fitting | NY03-28-K(0.8) | NY03-28-K(0.8) | Piece | PEEK | |
| 1011080002 | PEEK female Y-type tee fitting | NY03-28-K(1.25) | NY03-28-K(1.25) | Piece | PEEK | |
| 1011080003 | PEEK female Y-type tee fitting | NY03-28-K(2.0) | NY03-28-K(2.0) | Piece | PEEK | |
| 1011080004 | PEEK female Y-type tee fitting | NY03-32-K(0.8) | NY03-32-K(0.8) | Piece | PEEK | |
| 1011080005 | PEEK female Y-type tee fitting | NY03-32-K(1.25) | NY03-32-K(1.25) | Piece | PEEK | |
| 1011080006 | PEEK female Y-type tee fitting | NY03-L28&R28&B32-K(0.8) | NY03-L28&R28&B32-K(0.8) | Piece | PEEK | |
| 1011080008 | PEEK female Y-type tee fitting | NY03-L32&R32&B28-K(0.8) | NY03-L32&R32&B28-K(0.8) | Piece | PEEK | |
| 1011080009 | PEEK female Y-type tee fitting | NY03-L32&R32&B28-K(1.25) | NY03-L32&R32&B28-K(1.25) | Piece | PEEK |
| SKU | Model | Thread | Flow path Diameter | Wetted liquid volume | Material |
| NY03-28-K | |||||
| 1011080001 | NY03-28-K(0.8) | 1/4-28UNF(*3) | 0.8 mm | 7.39mm3 | PEEK natural |
| 1011080002 | NY03-28-K(1.25) | 1/4-28UNF(*3) | 1.25 mm | 17.84mm3 | PEEK natural |
| 1011080003 | NY03-28-K(2.0) | 1/4-28UNF(*3) | 2.0 mm | 44.81mm3 | PEEK natural |
| NT03-32-K | |||||
| 1011080004 | NT03-32-K(0.8) | 10-32UNF(*3) | 0.8 mm | 11.89mm3 | PEEK natural |
| 1011080005 | NT03-32-K(1.25) | 10-32UNF(*3) | 1.25 mm | 15.69mm3 | PEEK natural |
| NY03-L28&R28&B32-K | |||||
| 1011080006 | NY03-L28&R28&B32-K(0.8) | 1/4-28UNF(*2) & 10-32UNF | 0.8 mm | 8.89mm3 | PEEK natural |
| 1011080007 | NY03-L28&R28&B32-K(1.25) | 1/4-28UNF(*2) & 10-32UNF | 1.25 mm | 17.17mm3 | PEEK natural |
| NY03-L32&R32&B28-K | |||||
| 1011080008 | NY03-L32&R32&B28-K(0.8) | 1/4-28UNF & 10-32UNF(*2) | 0.8 mm | 10.93mm3 | PEEK natural |
| 1011080009 | NY03-L32&R32&B28-K(1.25) | 1/4-28UNF & 10-32UNF(*2) | 1.25 mm | 16.41mm3 | PEEK natural |

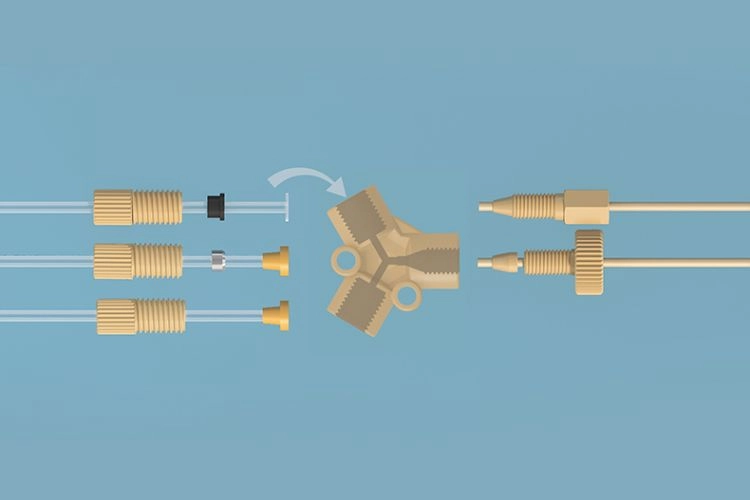

Related Products of PEEK Female Thread Y Adapter
It is recommended to be used with peek fittings and tubes. Please refer to https://www.runzefluid.com/products/peek-fittings/ and https://www.runzefluid.com/products/fluid-tubing/
PEEK flanged fittings- two pieces | 1/4-28UNF thread |
PEEK flangeless fittings- two pieces | 1/4-28UNF thread |
PEEK flangeless fittings- three pieces | 1/4-28UNF thread |
PEEK one-piece hand tightening fittings | 1/4-32UNF thread |
PEEK hand tightening fittings - two pieces | 1/4-32UNF thread |
PEEK capillary tube | |
FEP tube | |
PTFE tube |

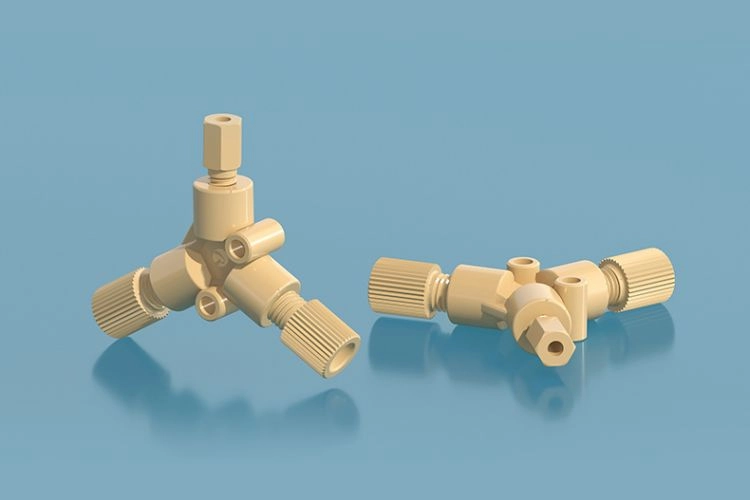

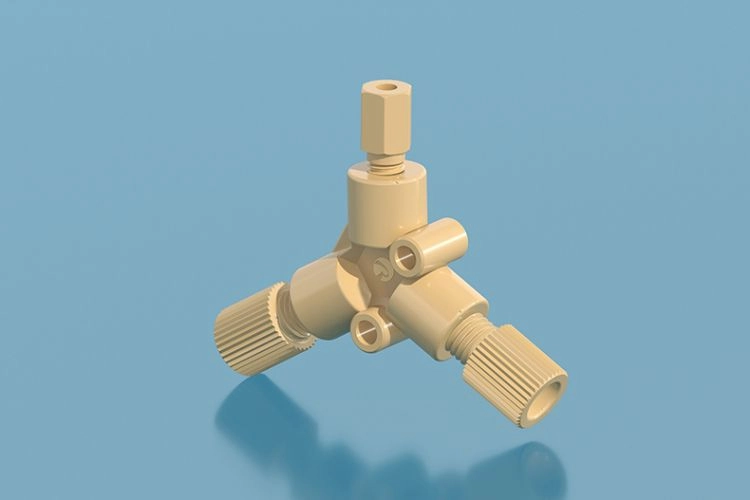

Application of PEEK Female Thread Y Adapter

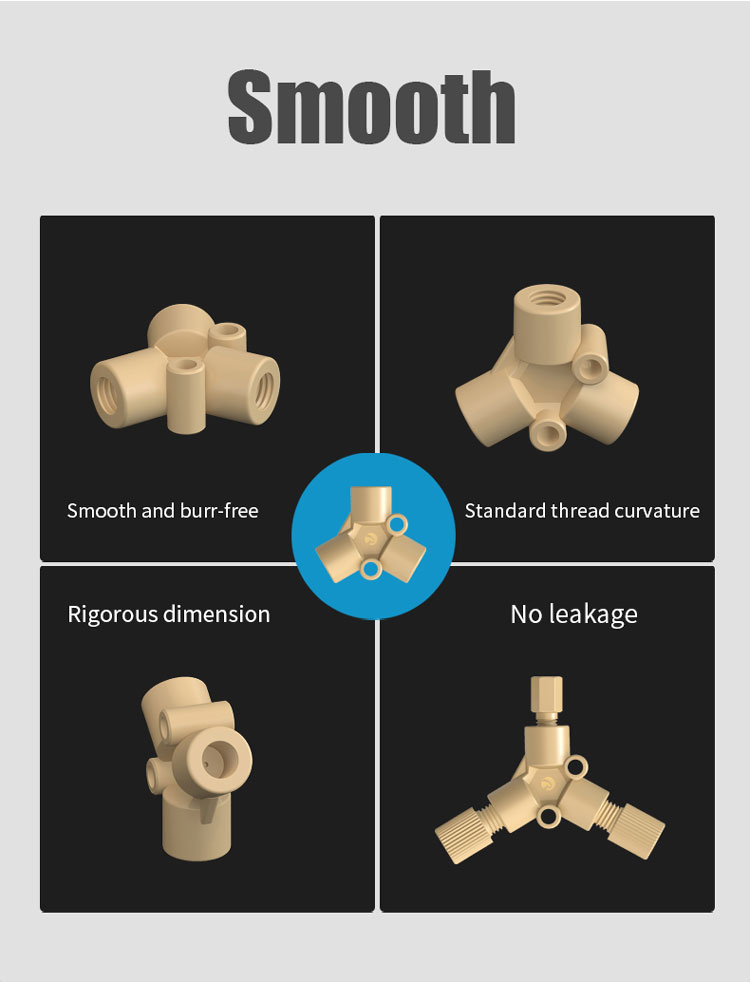

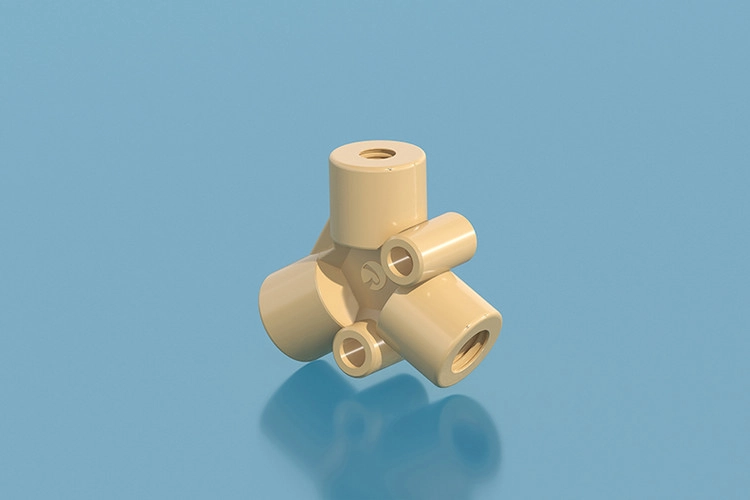

Details of PEEK Female Thread Y Adapter
