Long-term working temperature range -100℃~+250℃
Suitable for standard 10-32UNF conical fittings or 1/4-28UNF flat bottom threaded fittings
REACH and ROHS Certified ,Biocompatibility reports available.
안내사항 |
가격 기재가 되지 않은 별도 문의 상품인 경우 반드시 '온라인 견적문의' 혹은 '전화 문의' 후 구매 부탁드립니다. 설치/교육 신청의 경우 별도의 연락 후 직접 납품 드립니다. |
[Fitting] PEEK Luer Adapter Fitting Connector UNF 나사탭 아답터 피팅 PEEK 재질 UNF Thread
PEEK Luer Adapter시리즈

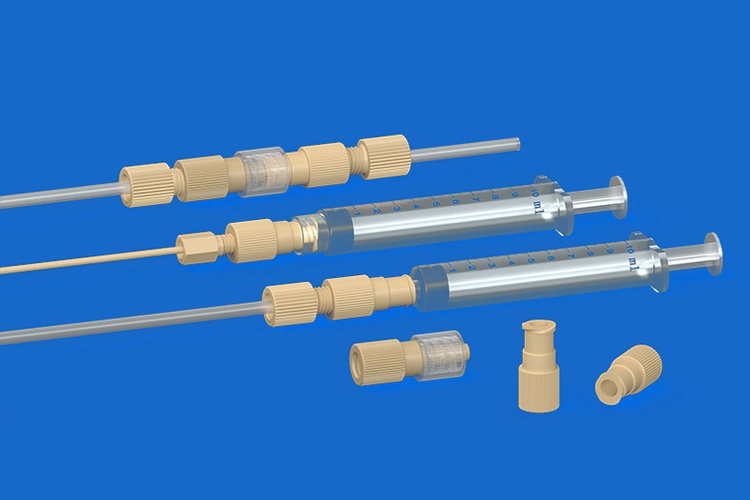

PEEK Luer Adapter

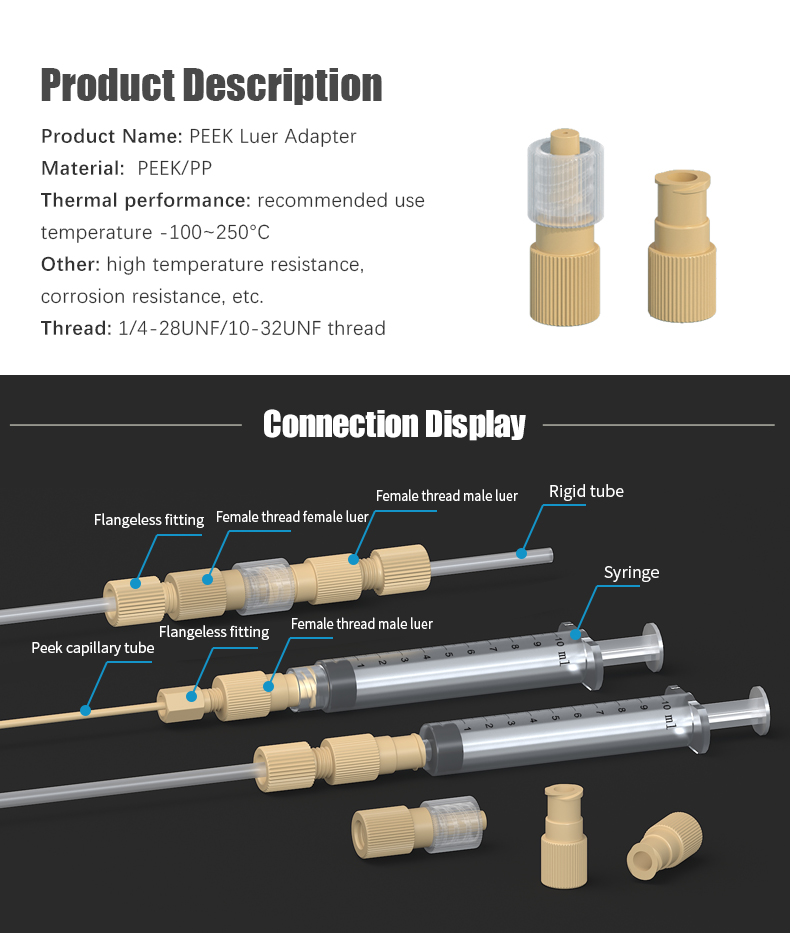

PEEK luer adapter is designed to adapt luer connectors to 10-32 UNF or 1/4-28 UNF threaded ports. The top advantage of PEEK luer adapter is that tubing will not rotate during tightening. It can withstand temperature range -100℃~+250℃ for a long time. PEEK luer adapter is suitable for standard 10-32UNF conical fittings or 1/4-28UNF flat bottom threaded fittings.
PEEK is a type of material with high mechanical strength, it is suitable for hydraulic systems that require repeated disassembly and relative high pressure in liquid chromatography and biological analysis instruments.

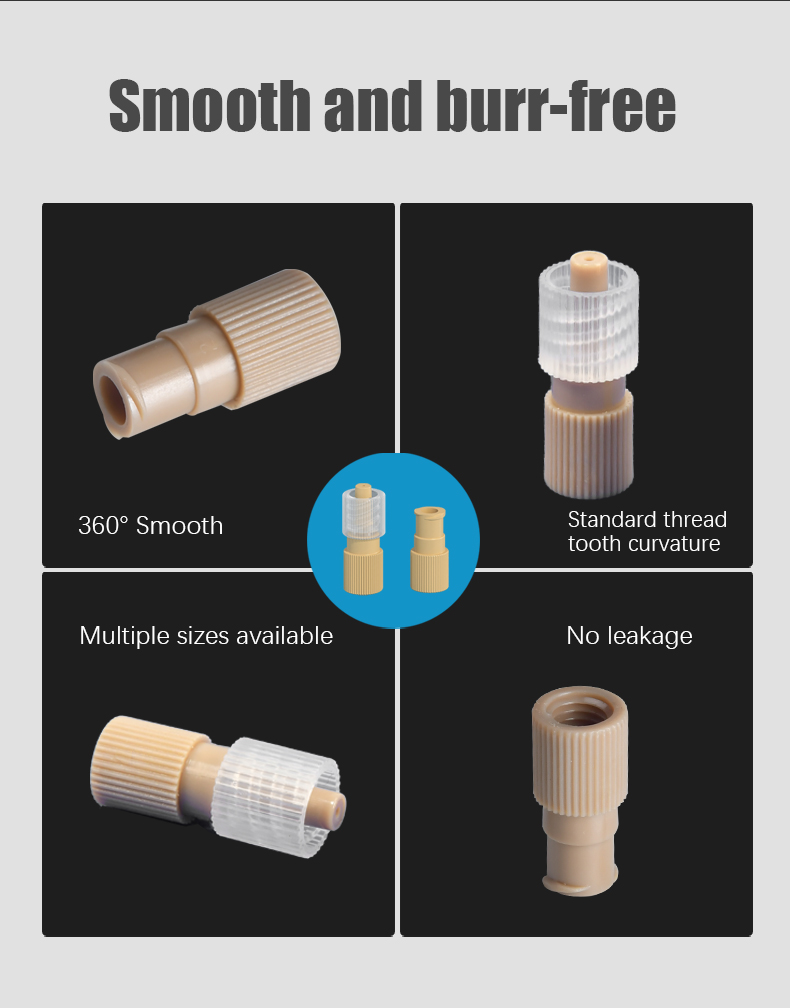

Features of PEEK Luer Adapter
Specifications of PEEK Luer Adapter
| Photo | Product Code | Product Name | Model No. | Specification | Unit | Material |
 | 1011130001 | PEEK Luer internal thread external rotation butt fitting | RH-M-(1/4-28)N-K | RH-M-(1/4-28)N-K | Piece | PEEK |
| 1011130002 | PEEK Luer internal thread external rotation butt fitting | RH-M-(10-32)N-K | RH-M-(10-32)N-K | Piece | PEEK | |
 | 1011130003 | PEEK Luer internal screw butt fitting | RH-G-(1/4-28)N-K(0.8) | RH-G-(1/4-28)N-K(0.8) | Piece | PEEK |
| 1011130004 | PEEK Luer internal screw butt fitting | RH-G-(10-32)N-K(0.8) | RH-G-(10-32)N-K(0.8) | Piece | PEEK | |
| 1011130005 | PEEK Luer internal screw butt fitting | RH-G-(1/4-28)N-K(1.2) | RH-G-(1/4-28)N-K(1.2) | Piece | PEEK | |
| 1011130006 | PEEK Luer internal screw butt fitting | RH-G-(10-32)N-K(1.2) | RH-G-(10-32)N-K(1.2) | Piece | PEEK |
| SKU | Model | Thread | Flow Passage Diameter | Material |
| 1011130001 | RH-M-(1/4-28)N-K | 1/4-28UNF | PEEK natural | |
| 1011130002 | RH-M-(10-32)N-K | 10-32UNF | PEEK natural | |
| 1011130003 | RH-G-(1/4-28)N-K(0.8) | 1/4-28UNF | 0.8 mm | PEEK natural |
| 1011130004 | RH-G-(10-32)N-K(0.8) | 10-32UNF | 0.8 mm | PEEK natural |
| 1011130005 | RH-G-(1/4-28)N-K(1.2) | 1/4-28UNF | 1.2 mm | PEEK natural |
| 1011130006 | RH-G-(10-32)N-K(1.2) | 10-32UNF | 1.2 mm | PEEK natural |

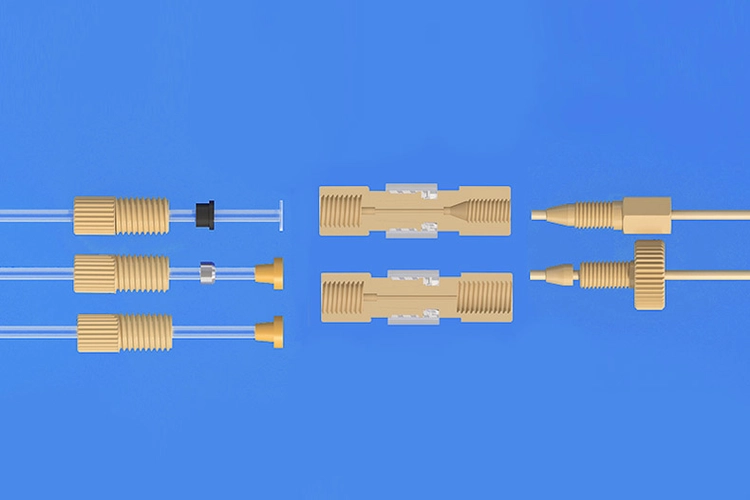

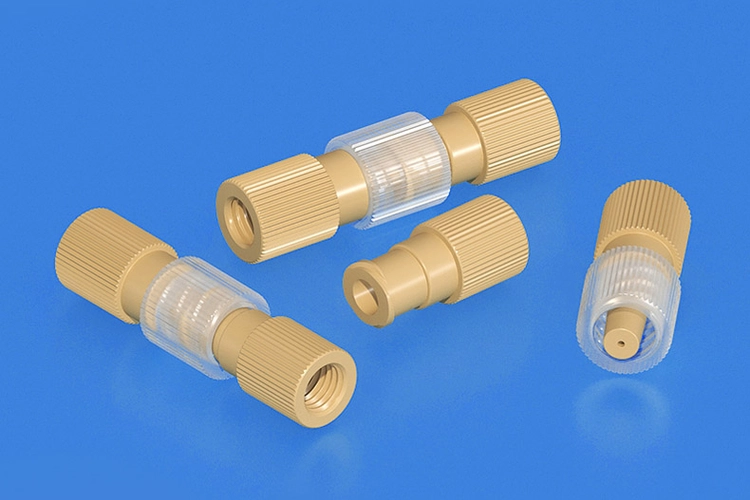

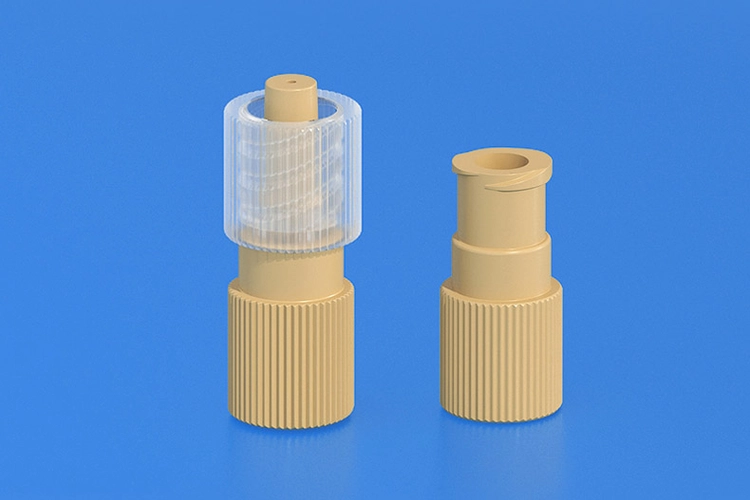

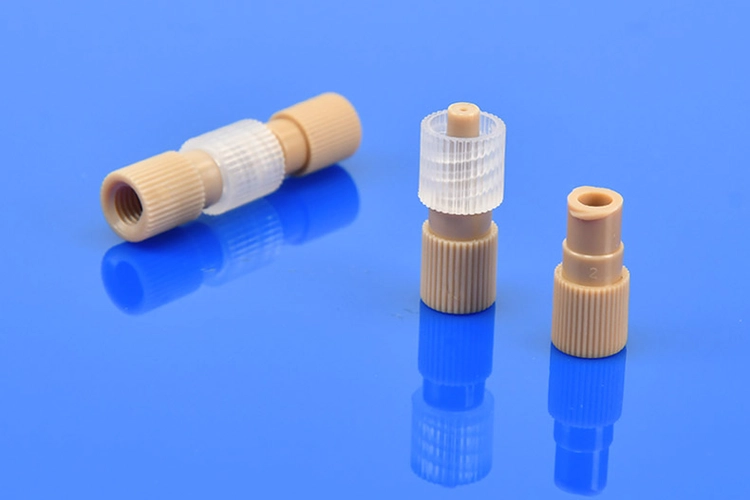

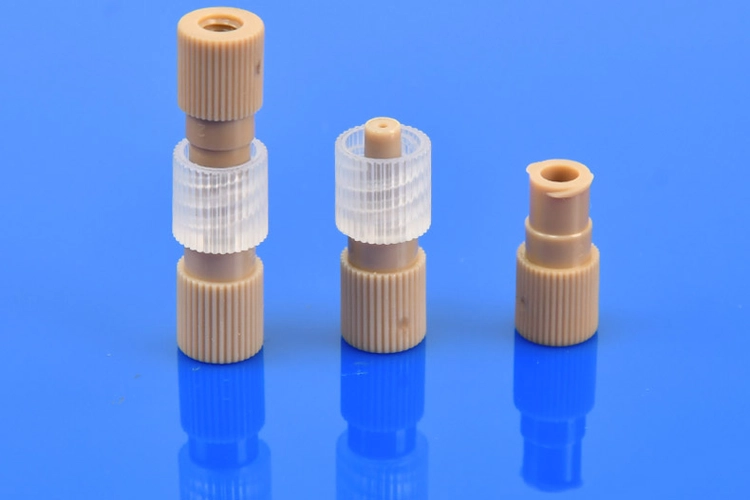

Details of PEEK Luer Adapter

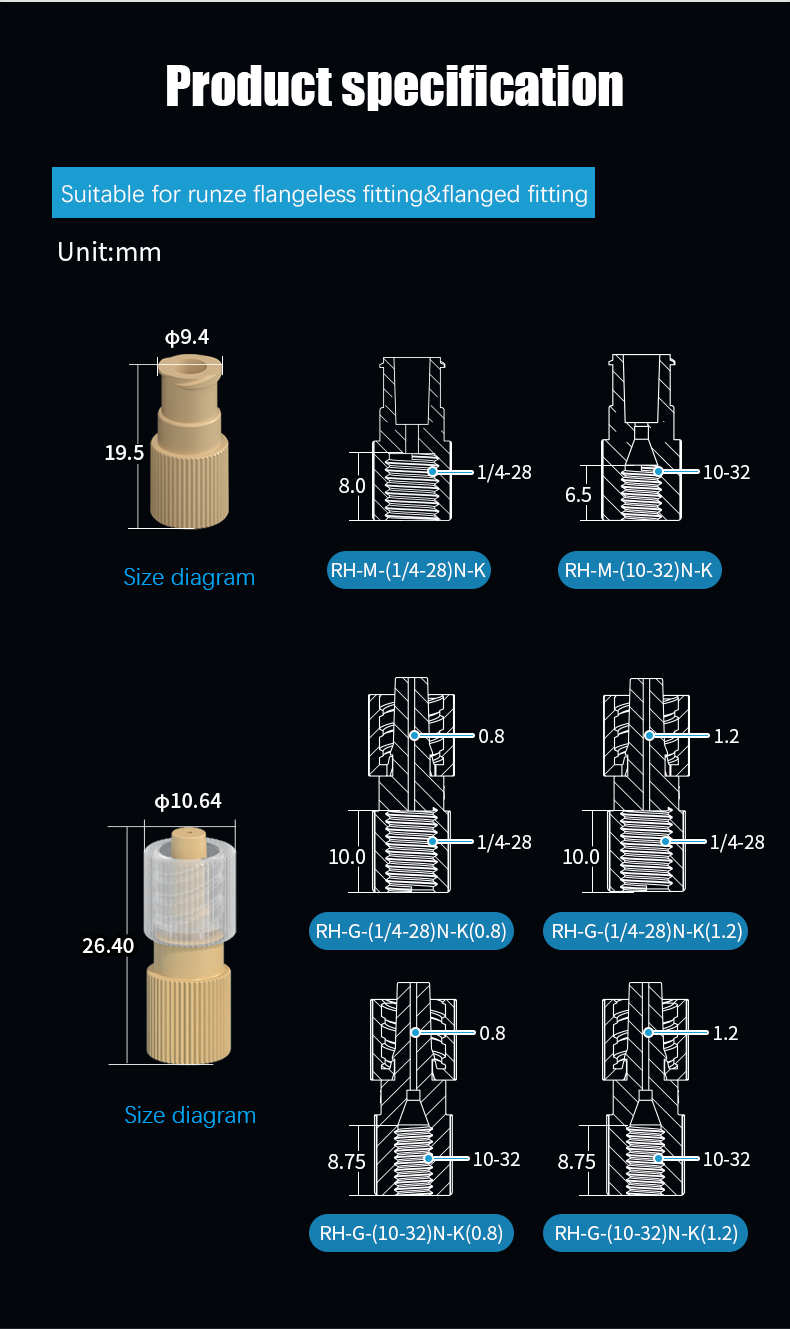

Dimension (unit: mm) of PEEK Luer Adapter
