Simply slip the nut and ferrule on the tube, screwing them into the tube. Need to use with ETFE ferrule.
CUT (Continuous Use Temperature): -80℃~+220℃
Used for standard rigid tubing OD 1.6/2.0/2.5/3.0/3.2mm, easy and fast installation.
Thread: 1/4-28UNF，M6
REACH and ROHS Certified ,Biocompatibility reports available.
안내사항 |
가격 기재가 되지 않은 별도 문의 상품인 경우 반드시 '온라인 견적문의' 혹은 '전화 문의' 후 구매 부탁드립니다. 설치/교육 신청의 경우 별도의 연락 후 직접 납품 드립니다. |
[Fitting] PEEK Flangeless Fittings UNF 나사탭 아답터 피팅 PEEK 재질 1/4-28UNF Thread

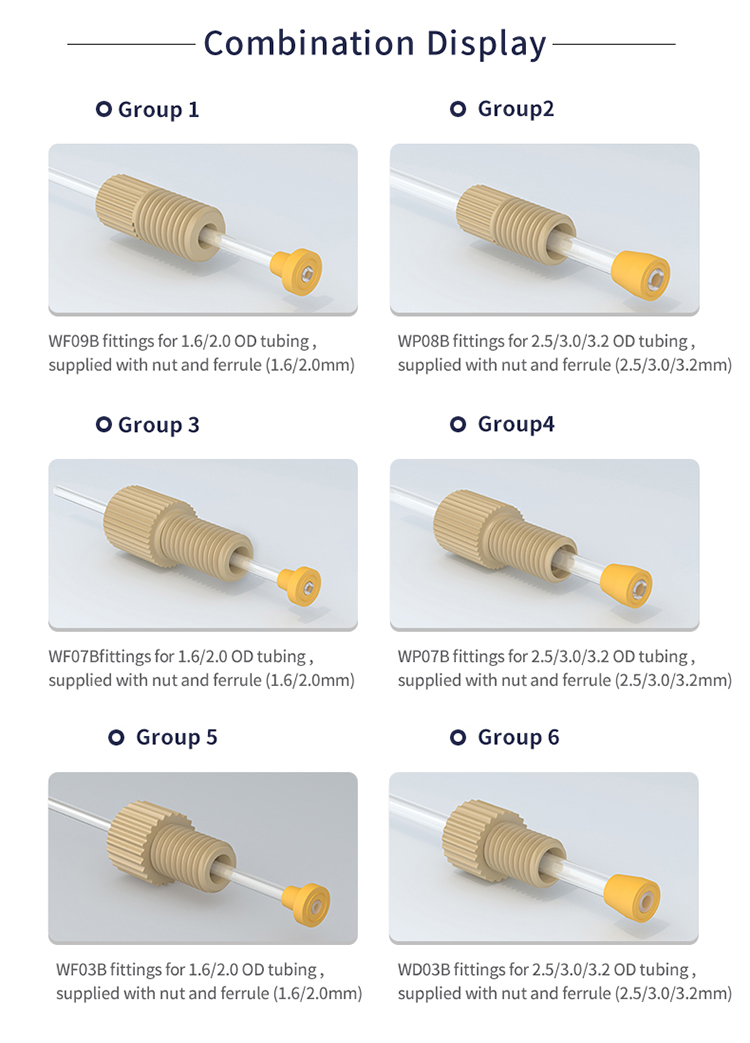

PEEK Flangeless Fittings 시리즈

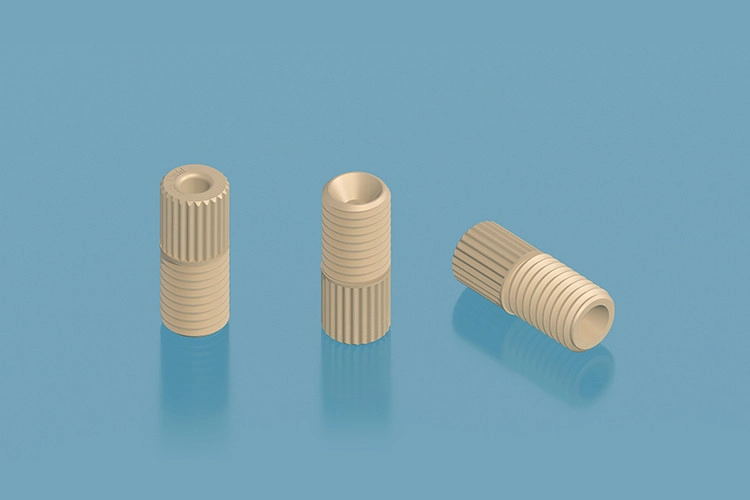

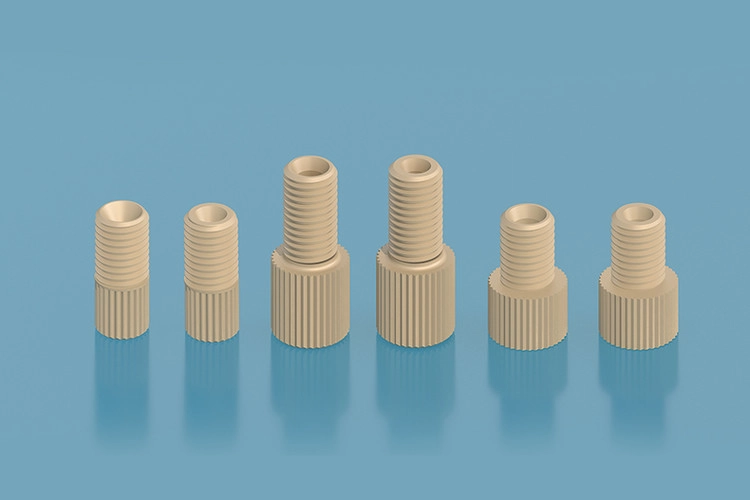

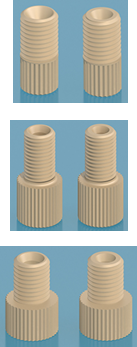

PEEK Flangeless Fittings

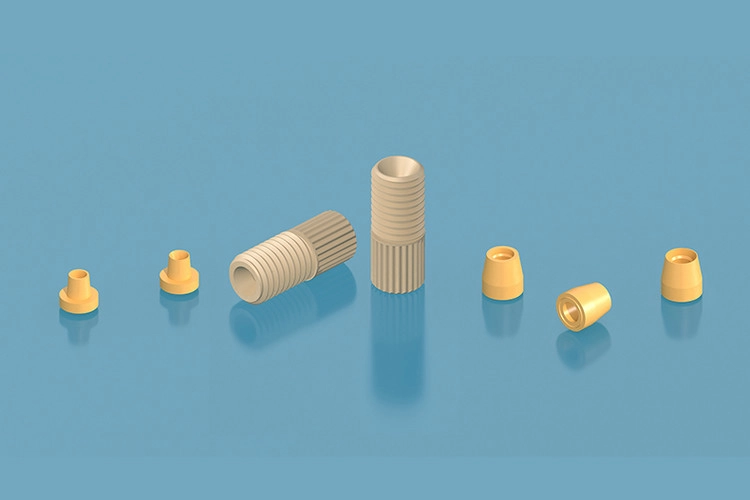

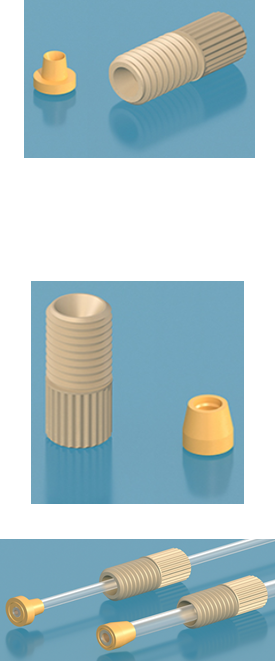

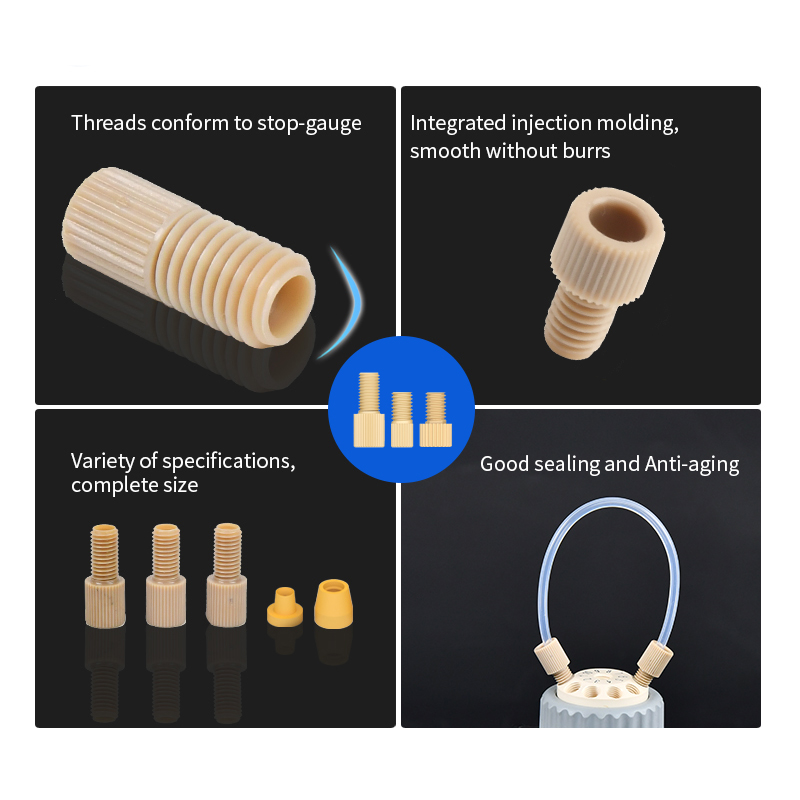

PEEK Flangeless Fittings come with PEEK flangeless nut and ETFE ferrule for your convenience. Flangeless fittings are excellent replacements for flanged fittings, they are dependable, easy to use and easy to replace.
PEEK Super Flangeless Fittings eliminates loosening of fittings due to tubing twist and holds tight even through vibration and increase the reusability with the help of 316 SST sleeves.
Video

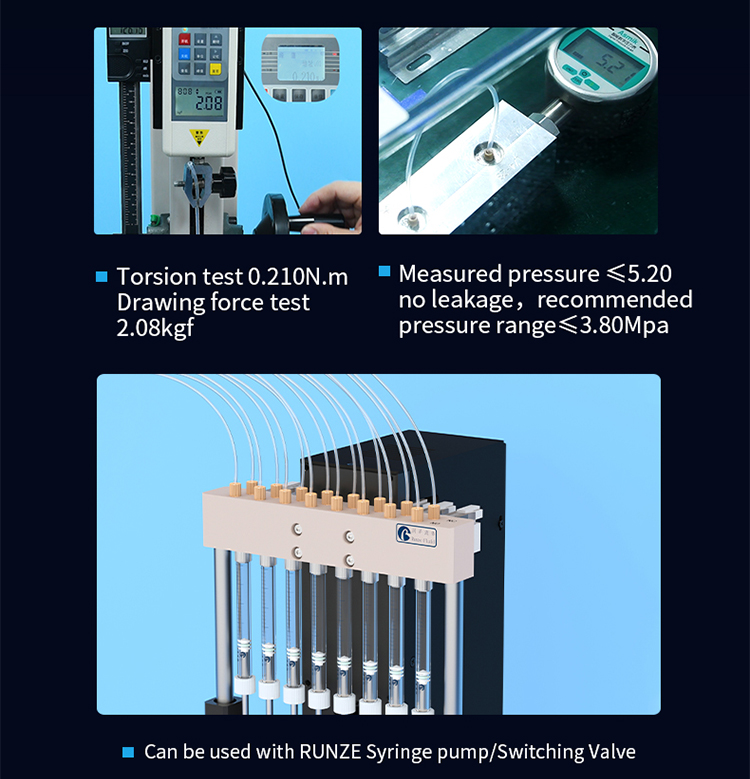

PEEK Flangeless Fittings Features at-a-Glance
PEEK nuts featured with high mechanical strength, solvent resistance (except strong sulphuric acid and strong nitric acid), high temperature resistance, wear resistance with its high friction coefficient, impact resistance Yellow Tefzel (ETFE) Ferrules are excellent for connecting most rigid or semi-rigid tubes, including tubing manufactured from fluoropolymers (FEP, PFA, ETFE, ECTFE, etc.), PEEK. It offers superior chemical resistance. It has a 1/4-28 Flat -Bottom port configuration and is for 1.6/2.0/2.5/3.0/3.175mm OD Tubing.
Long-time operation temperature from - 100℃ to + 250℃
Frequent disassembly supported
Suit for mesolow liquid chromatography, gene detection, high-end bioanalysis
Specification

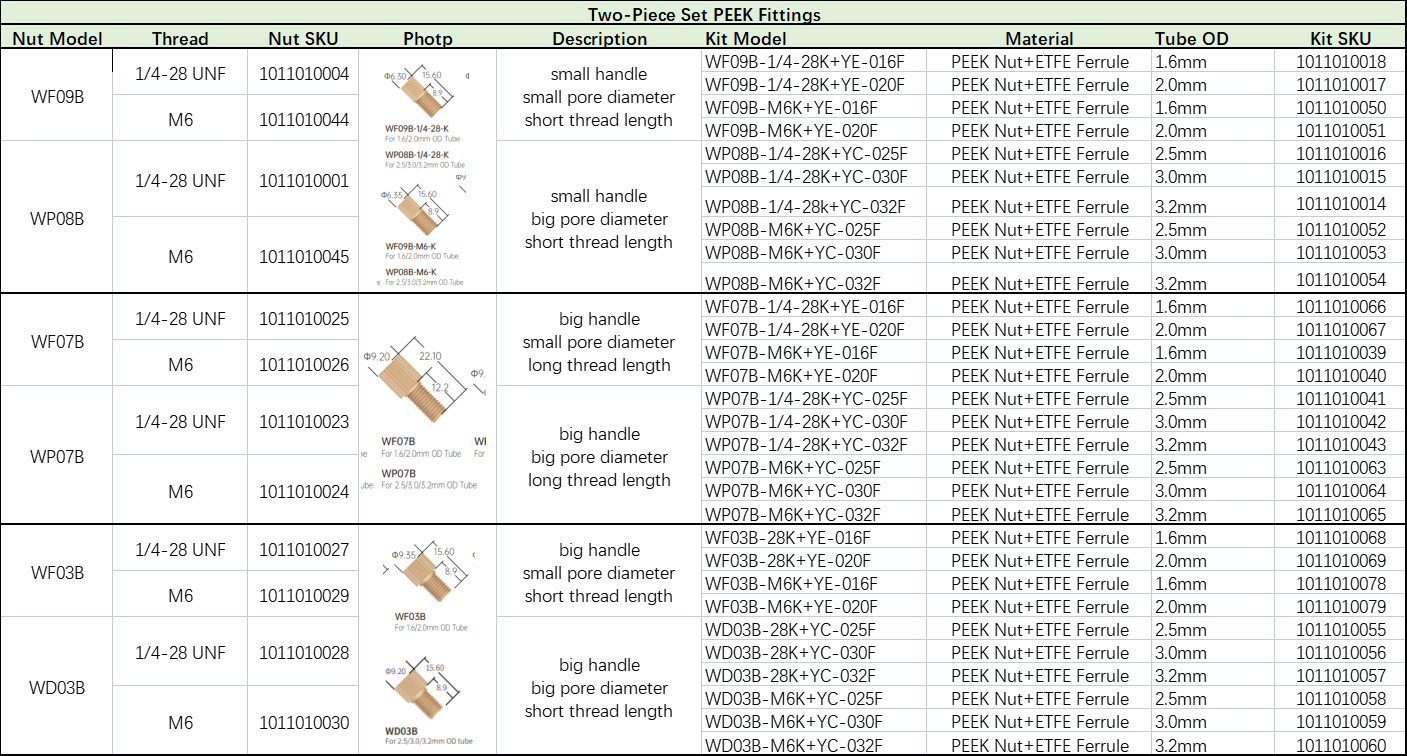

Photo | Product Code | Product Name | Model No. | Specification | Unit | Material |
| 1011010014 | PEEK Flangeless Fittings | WP08B-1/4-28k+YC-032F | 1011010001+1011020001，WP08B-1/4-28k（PEEKNut）+YC-032-F（ETFE링) | Set | PEEK+ETFE |
1011010015 | PEEK Flangeless Fittings | WP08B-1/4-28K+YC-030F | 1011010001+1011020008，WP08B-1/4-28K（PEEKNut）+YC-030-F（ETFE링) | Set | PEEK+ETFE | |
1011010016 | PEEK Flangeless Fittings | WP08B-1/4-28K+YC-025F | 1011010001+1011020007，WP08B-1/4-28K（PEEKNut）+YC-025-F（ETFE링) | Set | PEEK+ETFE | |
1011010017 | PEEK Flangeless Fittings | WF09B-1/4-28K+YE-020F | 1011010004+1011020005，WF09B-1/4-28K（PEEKNut）+YE-020-F（ETFE링) | Set | PEEK+ETFE | |
1011010018 | PEEK Flangeless Fittings | WF09B-1/4-28K+YE-016F | 1011010004+1011020006，WF09B-1/4-28K（PEEKNut）+YE-016-F（ETFE링) | Set | PEEK+ETFE | |
1011010039 | PEEK Flangeless Fittings | WF07B-M6K+YE-016F | 1011010026+1011020006（WF07B-M6-K+YE-016-F) | Set | PEEK+ETFE | |
1011010040 | PEEK Flangeless Fittings | WF07B-M6K+YE-020F | 1011010026+1011020005（WF07B-M6-K+YE-020-F) | Set | PEEK+ETFE | |
1011010041 | PEEK Flangeless Fittings | WP07B-28K+YC-025F | 1011010023+1011020007（WP07B-1/4-28-K+YC-025-F) | Set | PEEK+ETFE | |
1011010042 | PEEK Flangeless Fittings | WP07B-28K+YC-030F | 1011010023+1011020008（WP07B-1/4-28-K+YC-030-F) | Set | PEEK+ETFE | |
1011010043 | PEEK Flangeless Fittings | WP07B-28K+YC-032F | 1011010023+1011020001（WP07B-1/4-28-K+YC-032-F) | Set | PEEK+ETFE | |
1011010050 | PEEK Flangeless Fittings | WF09B-M6K+YE-016F | WF09B-M6-K（PEEKNut）+YE-016-F（ETFE링) | Set | PEEK+ETFE | |
1011010051 | PEEK Flangeless Fittings | WF09B-M6K+YE-020F | WF09B-M6-K（PEEKNut）+YE-020-F（ETFE링) | Set | PEEK+ETFE | |
1011010052 | PEEK Flangeless Fittings | WP08B-M6K+YC-025F | WP08B-M6-K（PEEKNut）+YC-025-F（ETFE링) | Set | PEEK+ETFE | |
1011010053 | PEEK Flangeless Fittings | WP08B-M6K+YC-030F | WP08B-M6-K（PEEKNut）+YC-030-F（ETFE링) | Set | PEEK+ETFE | |
1011010054 | PEEK Flangeless Fittings | WP08B-M6K+YC-032F | WP08B-M6-K（PEEKNut）+YC-032-F（ETFE링) | Set | PEEK+ETFE | |
1011010055 | PEEK Flangeless Fittings | WD03B-28K+YC-025F | WD03B-1/4-28-K（PEEKNut）+YC-025-F（ETFE링) | Set | PEEK+ETFE | |
1011010056 | PEEK Flangeless Fittings | WD03B-28K+YC-030F | WD03B-1/4-28-K（PEEKNut）+YC-030-F（ETFE링) | Set | PEEK+ETFE | |
1011010057 | PEEK Flangeless Fittings | WD03B-28K+YC-032F | WD03B-1/4-28-K（PEEKNut）+YC-032-F（ETFE링) | Set | PEEK+ETFE | |
1011010058 | PEEK Flangeless Fittings | WD03B-M6K+YC-025F | WD03B-M6-K（PEEKNut）+YC-025-F（ETFE링) | Set | PEEK+ETFE | |
1011010059 | PEEK Flangeless Fittings | WD03B-M6K+YC-030F | WD03B-M6-K（PEEKNut）+YC-030-F（ETFE링) | Set | PEEK+ETFE | |
1011010060 | PEEK Flangeless Fittings | WD03B-M6K+YC-032F | WD03B-M6-K（PEEKNut）+YC-032-F（ETFE링) | Set | PEEK+ETFE | |
1011010063 | PEEK Flangeless Fittings | WP07B-M6K+YC-025F | 1011010024+1011020007（WP07B-M6-K+YC-025-F) | Set | PEEK+ETFE | |
1011010064 | PEEK Flangeless Fittings | WP07B-M6K+YC-030F | 1011010024+1011020008（WP07B-M6-K+YC-030-F) | Set | PEEK+ETFE | |
1011010065 | PEEK Flangeless Fittings | WP07B-M6K+YC-032F | 1011010024+1011020001（WP07B-M6-K+YC-032-F) | Set | PEEK+ETFE | |
1011010066 | PEEK Flangeless Fittings | WF07B-28K+YE-016-F | 1011010025+1011020006（WF07B-1/4-28-K+YE-016-F) | Set | PEEK+ETFE | |
1011010067 | PEEK Flangeless Fittings | WF07B-28K+YE-020-F | 1011010025+1011020005（WF07B-1/4-28-K+YE-20-F) | Set | PEEK+ETFE | |
1011010068 | PEEK Flangeless Fittings | WF03B-28K+YE-016F | WF03B-28K（PEEKNut）+YE-016-F（ETFE링) | Set | PEEK+ETFE | |
1011010069 | PEEK Flangeless Fittings | WF03B-28K+YE-020F | WF03B-28K（PEEKNut）+YE-020-F（ETFE링) | Set | PEEK+ETFE | |
| 1011020005 | ETFE Flangeless Ferrule | YE-020-F | Yellow | Piece | ETFE |
1011020006 | ETFE Flangeless Ferrule | YE-016-F | Yellow | Piece | ETFE | |
| 1011020007 | ETFE Flangeless Ferrule | YC-025-F | Yellow | Piece | ETFE |
1011020008 | ETFE Flangeless Ferrule | YC-030-F | Yellow | Piece | ETFE | |
1011020001 | ETFE Flangeless Ferrule | YC-032-F | Yellow | Piece | ETFE | |
| 1011010044 | PEEK Flangeless Fittings | WF09B-M6-K | 소형，M6나사산，사용직경1.6/2.0 | Piece | PEEK |
1011010004 | PEEK Flangeless Fittings | WF09B-1/4-28-K | 소형, 1/4-28K나사산，사용직경1.6，2.0 | Piece | PEEK | |
1011010045 | PEEK Flangeless Fittings | WP08B-M6-K | WP08B-M6-K | Piece | PEEK | |
1011010001 | Peek Flangeless Fittings | WP08B-1/4-28-K | WP08B-1/4-28-K | Piece | PEEK | |
1011010023 | PEEK Flangeless Nut | WP07B-1/4-28-K | 대형1/4-28UNF나사산직경3.2/3.0/2.5ETFE압력링 | Piece | PEEK | |
1011010024 | PEEK Flangeless Nut | WP07B-M6-K | 대형M6나사산직경3.2/3.0/2.5ETFE압력링 | Piece | PEEK | |
1011010025 | PEEK Flangeless Fittings | WF07B-1/4-28-k | WF07B-1/4-28-k | Piece | PEEK | |
1011010026 | PEEK Flangeless Fittings | WF07B-M6-K | WF07B-M6-K | Piece | PEEK | |
1011010027 | PEEK Ferrule | WF03B-1/4-28-K | 1/4-28UNF나사산，사용직경1.6mm、2.0mm | Piece | PEEK | |
1011010028 | PEEK Ferrule | WD03B-1/4-28-K | 대형Short나사산,1/4-28UNF나사산，사용직경2.5mm、3.0mm、3.2mm | Piece | PEEK | |
1011010029 | PEEK Ferrule | WF03B-M6-K | M6나사산，사용직경1.6mm、2.0mm | Piece | PEEK | |
1011010030 | PEEK Ferrule | WD03B-M6-K | 대형Short나사산,M6나사산，사용직경2.5mm、3.0mm、3.2mm | Piece | PEEK |

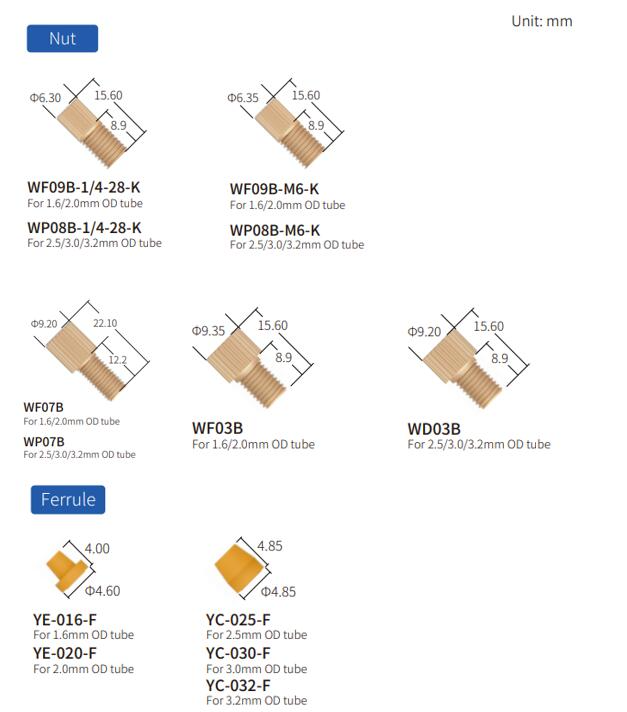

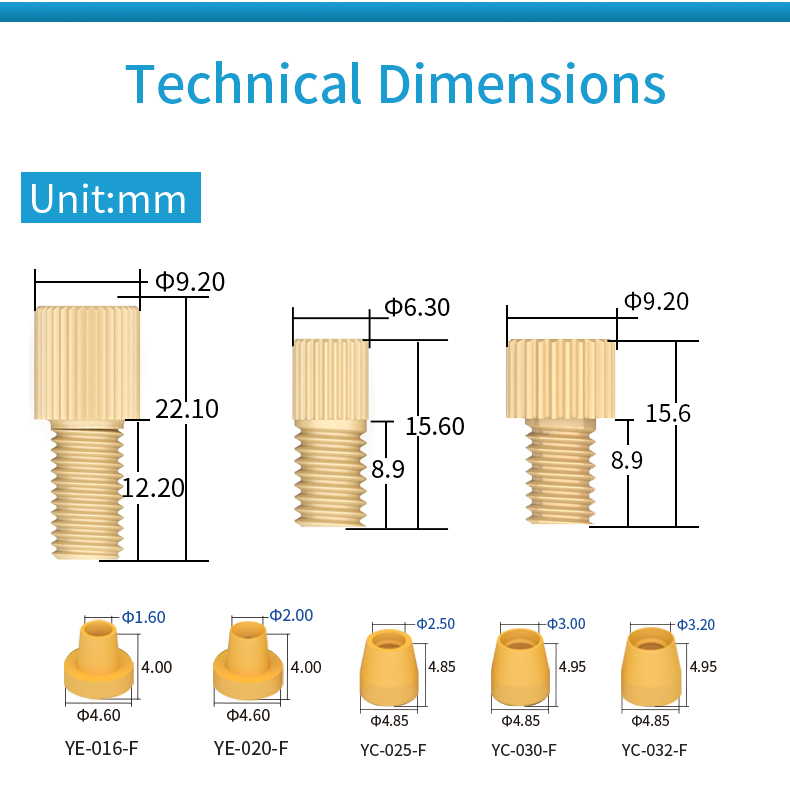

Dimension (unit: mm)
Application Note (PEEK Flangeless Fittings)

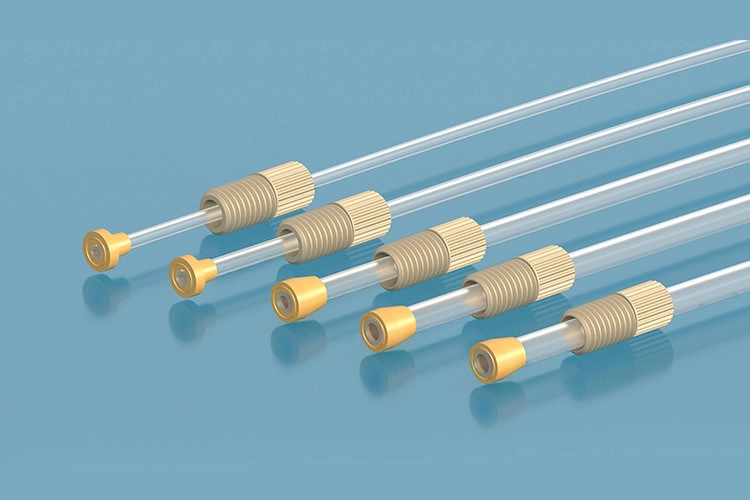

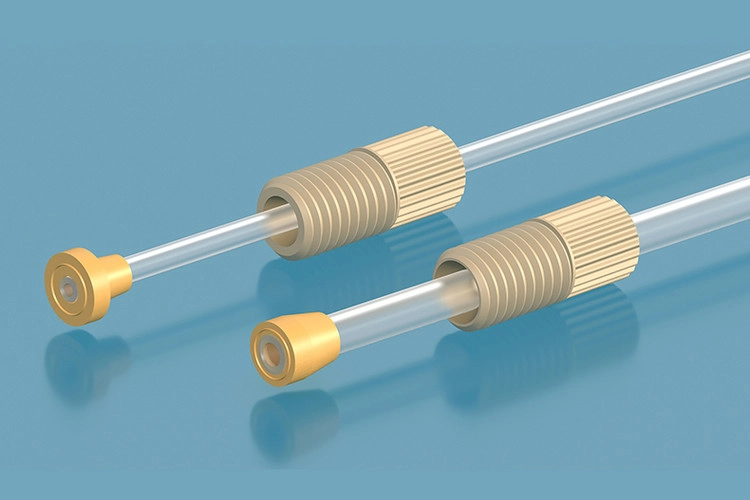

Step 1. Slide the PEEK nut, followed by the ETFE ferrule, at least 3/16"(4.7625mm) from the end of clean cut tubing
Step 2. Insert the assembly into the receiving port, pushing the tubing into the port until it bottoms out
Step 3. Finger tighten the fittings into the port until snug
Step 4. After several uses (especially at high pressure) the ferrules should be replaced
Before connecting fittings, ensure the end of tubing has a clean, square, burr-free cut. This is very important, as the square cut helps the tubing make full contact with the bottom of matching port. Neglecting to properly cut the tubing could lead to dead volume, resulting in peak distortion such as fronting, tailing or broadenin
모바일 환경에서는 표를 좌·우로 스크롤해주세요.
고객센터
배송안내
배송기간
주의사항
안내사항 |
가격 기재가 되지 않은 별도 문의 상품인 경우 반드시 '온라인 견적문의' 혹은 '전화 문의' 후 구매 부탁드립니다. 설치/교육 신청의 경우 별도의 연락 후 직접 납품 드립니다. |
[Fitting] PEEK Flangeless Fittings UNF 나사탭 아답터 피팅 PEEK 재질 1/4-28UNF Thread
PEEK Flangeless Fittings 시리즈
PEEK Flangeless Fittings
PEEK Flangeless Fittings come with PEEK flangeless nut and ETFE ferrule for your convenience. Flangeless fittings are excellent replacements for flanged fittings, they are dependable, easy to use and easy to replace.
PEEK Super Flangeless Fittings eliminates loosening of fittings due to tubing twist and holds tight even through vibration and increase the reusability with the help of 316 SST sleeves.
Video
PEEK Flangeless Fittings Features at-a-Glance
PEEK nuts featured with high mechanical strength, solvent resistance (except strong sulphuric acid and strong nitric acid), high temperature resistance, wear resistance with its high friction coefficient, impact resistance Yellow Tefzel (ETFE) Ferrules are excellent for connecting most rigid or semi-rigid tubes, including tubing manufactured from fluoropolymers (FEP, PFA, ETFE, ECTFE, etc.), PEEK. It offers superior chemical resistance. It has a 1/4-28 Flat -Bottom port configuration and is for 1.6/2.0/2.5/3.0/3.175mm OD Tubing.
Long-time operation temperature from - 100℃ to + 250℃
Frequent disassembly supported
Suit for mesolow liquid chromatography, gene detection, high-end bioanalysis
Specification
Photo | Product Code | Product Name | Model No. | Specification | Unit | Material |
| 1011010014 | PEEK Flangeless Fittings | WP08B-1/4-28k+YC-032F | 1011010001+1011020001，WP08B-1/4-28k（PEEKNut）+YC-032-F（ETFE링) | Set | PEEK+ETFE |
1011010015 | PEEK Flangeless Fittings | WP08B-1/4-28K+YC-030F | 1011010001+1011020008，WP08B-1/4-28K（PEEKNut）+YC-030-F（ETFE링) | Set | PEEK+ETFE | |
1011010016 | PEEK Flangeless Fittings | WP08B-1/4-28K+YC-025F | 1011010001+1011020007，WP08B-1/4-28K（PEEKNut）+YC-025-F（ETFE링) | Set | PEEK+ETFE | |
1011010017 | PEEK Flangeless Fittings | WF09B-1/4-28K+YE-020F | 1011010004+1011020005，WF09B-1/4-28K（PEEKNut）+YE-020-F（ETFE링) | Set | PEEK+ETFE | |
1011010018 | PEEK Flangeless Fittings | WF09B-1/4-28K+YE-016F | 1011010004+1011020006，WF09B-1/4-28K（PEEKNut）+YE-016-F（ETFE링) | Set | PEEK+ETFE | |
1011010039 | PEEK Flangeless Fittings | WF07B-M6K+YE-016F | 1011010026+1011020006（WF07B-M6-K+YE-016-F) | Set | PEEK+ETFE | |
1011010040 | PEEK Flangeless Fittings | WF07B-M6K+YE-020F | 1011010026+1011020005（WF07B-M6-K+YE-020-F) | Set | PEEK+ETFE | |
1011010041 | PEEK Flangeless Fittings | WP07B-28K+YC-025F | 1011010023+1011020007（WP07B-1/4-28-K+YC-025-F) | Set | PEEK+ETFE | |
1011010042 | PEEK Flangeless Fittings | WP07B-28K+YC-030F | 1011010023+1011020008（WP07B-1/4-28-K+YC-030-F) | Set | PEEK+ETFE | |
1011010043 | PEEK Flangeless Fittings | WP07B-28K+YC-032F | 1011010023+1011020001（WP07B-1/4-28-K+YC-032-F) | Set | PEEK+ETFE | |
1011010050 | PEEK Flangeless Fittings | WF09B-M6K+YE-016F | WF09B-M6-K（PEEKNut）+YE-016-F（ETFE링) | Set | PEEK+ETFE | |
1011010051 | PEEK Flangeless Fittings | WF09B-M6K+YE-020F | WF09B-M6-K（PEEKNut）+YE-020-F（ETFE링) | Set | PEEK+ETFE | |
1011010052 | PEEK Flangeless Fittings | WP08B-M6K+YC-025F | WP08B-M6-K（PEEKNut）+YC-025-F（ETFE링) | Set | PEEK+ETFE | |
1011010053 | PEEK Flangeless Fittings | WP08B-M6K+YC-030F | WP08B-M6-K（PEEKNut）+YC-030-F（ETFE링) | Set | PEEK+ETFE | |
1011010054 | PEEK Flangeless Fittings | WP08B-M6K+YC-032F | WP08B-M6-K（PEEKNut）+YC-032-F（ETFE링) | Set | PEEK+ETFE | |
1011010055 | PEEK Flangeless Fittings | WD03B-28K+YC-025F | WD03B-1/4-28-K（PEEKNut）+YC-025-F（ETFE링) | Set | PEEK+ETFE | |
1011010056 | PEEK Flangeless Fittings | WD03B-28K+YC-030F | WD03B-1/4-28-K（PEEKNut）+YC-030-F（ETFE링) | Set | PEEK+ETFE | |
1011010057 | PEEK Flangeless Fittings | WD03B-28K+YC-032F | WD03B-1/4-28-K（PEEKNut）+YC-032-F（ETFE링) | Set | PEEK+ETFE | |
1011010058 | PEEK Flangeless Fittings | WD03B-M6K+YC-025F | WD03B-M6-K（PEEKNut）+YC-025-F（ETFE링) | Set | PEEK+ETFE | |
1011010059 | PEEK Flangeless Fittings | WD03B-M6K+YC-030F | WD03B-M6-K（PEEKNut）+YC-030-F（ETFE링) | Set | PEEK+ETFE | |
1011010060 | PEEK Flangeless Fittings | WD03B-M6K+YC-032F | WD03B-M6-K（PEEKNut）+YC-032-F（ETFE링) | Set | PEEK+ETFE | |
1011010063 | PEEK Flangeless Fittings | WP07B-M6K+YC-025F | 1011010024+1011020007（WP07B-M6-K+YC-025-F) | Set | PEEK+ETFE | |
1011010064 | PEEK Flangeless Fittings | WP07B-M6K+YC-030F | 1011010024+1011020008（WP07B-M6-K+YC-030-F) | Set | PEEK+ETFE | |
1011010065 | PEEK Flangeless Fittings | WP07B-M6K+YC-032F | 1011010024+1011020001（WP07B-M6-K+YC-032-F) | Set | PEEK+ETFE | |
1011010066 | PEEK Flangeless Fittings | WF07B-28K+YE-016-F | 1011010025+1011020006（WF07B-1/4-28-K+YE-016-F) | Set | PEEK+ETFE | |
1011010067 | PEEK Flangeless Fittings | WF07B-28K+YE-020-F | 1011010025+1011020005（WF07B-1/4-28-K+YE-20-F) | Set | PEEK+ETFE | |
1011010068 | PEEK Flangeless Fittings | WF03B-28K+YE-016F | WF03B-28K（PEEKNut）+YE-016-F（ETFE링) | Set | PEEK+ETFE | |
1011010069 | PEEK Flangeless Fittings | WF03B-28K+YE-020F | WF03B-28K（PEEKNut）+YE-020-F（ETFE링) | Set | PEEK+ETFE | |
| 1011020005 | ETFE Flangeless Ferrule | YE-020-F | Yellow | Piece | ETFE |
1011020006 | ETFE Flangeless Ferrule | YE-016-F | Yellow | Piece | ETFE | |
| 1011020007 | ETFE Flangeless Ferrule | YC-025-F | Yellow | Piece | ETFE |
1011020008 | ETFE Flangeless Ferrule | YC-030-F | Yellow | Piece | ETFE | |
1011020001 | ETFE Flangeless Ferrule | YC-032-F | Yellow | Piece | ETFE | |
| 1011010044 | PEEK Flangeless Fittings | WF09B-M6-K | 소형，M6나사산，사용직경1.6/2.0 | Piece | PEEK |
1011010004 | PEEK Flangeless Fittings | WF09B-1/4-28-K | 소형, 1/4-28K나사산，사용직경1.6，2.0 | Piece | PEEK | |
1011010045 | PEEK Flangeless Fittings | WP08B-M6-K | WP08B-M6-K | Piece | PEEK | |
1011010001 | Peek Flangeless Fittings | WP08B-1/4-28-K | WP08B-1/4-28-K | Piece | PEEK | |
1011010023 | PEEK Flangeless Nut | WP07B-1/4-28-K | 대형1/4-28UNF나사산직경3.2/3.0/2.5ETFE압력링 | Piece | PEEK | |
1011010024 | PEEK Flangeless Nut | WP07B-M6-K | 대형M6나사산직경3.2/3.0/2.5ETFE압력링 | Piece | PEEK | |
1011010025 | PEEK Flangeless Fittings | WF07B-1/4-28-k | WF07B-1/4-28-k | Piece | PEEK | |
1011010026 | PEEK Flangeless Fittings | WF07B-M6-K | WF07B-M6-K | Piece | PEEK | |
1011010027 | PEEK Ferrule | WF03B-1/4-28-K | 1/4-28UNF나사산，사용직경1.6mm、2.0mm | Piece | PEEK | |
1011010028 | PEEK Ferrule | WD03B-1/4-28-K | 대형Short나사산,1/4-28UNF나사산，사용직경2.5mm、3.0mm、3.2mm | Piece | PEEK | |
1011010029 | PEEK Ferrule | WF03B-M6-K | M6나사산，사용직경1.6mm、2.0mm | Piece | PEEK | |
1011010030 | PEEK Ferrule | WD03B-M6-K | 대형Short나사산,M6나사산，사용직경2.5mm、3.0mm、3.2mm | Piece | PEEK |
Dimension (unit: mm)
Application Note (PEEK Flangeless Fittings)
Step 1. Slide the PEEK nut, followed by the ETFE ferrule, at least 3/16"(4.7625mm) from the end of clean cut tubing
Step 2. Insert the assembly into the receiving port, pushing the tubing into the port until it bottoms out
Step 3. Finger tighten the fittings into the port until snug
Step 4. After several uses (especially at high pressure) the ferrules should be replaced
Before connecting fittings, ensure the end of tubing has a clean, square, burr-free cut. This is very important, as the square cut helps the tubing make full contact with the bottom of matching port. Neglecting to properly cut the tubing could lead to dead volume, resulting in peak distortion such as fronting, tailing or broadenin
