Simply slide the nut and ferrule on the tube, screwing them into the tube. Need to use with ETFE ferrule.
With stainless steel sleeve, the rigid pipe does not follow the rotation during screwing flangeless nut. Effective elimination of loose fittings in the tube caused by twisting, can be tighten even when vibrating.
High pressure fittings, ideal for pre-assembled tubing and where disconnections are often required
Long-term working temperature range -80°C~+220°C
Used for standard rigid tubing OD 1.6/2.0/2.5/3.0/3.2mm, easy and fast installation.
Thread：1/4-28UNF，M6
REACH and ROHS Certified ,Biocompatibility reports available.
안내사항 |
가격 기재가 되지 않은 별도 문의 상품인 경우 반드시 '온라인 견적문의' 혹은 '전화 문의' 후 구매 부탁드립니다. 설치/교육 신청의 경우 별도의 연락 후 직접 납품 드립니다. |
[Fitting] Super Flangeless Fittings three-piece set UNF 나사탭 아답터 피팅 PEEK 재질 1/4-28UNF Thread HPLC용
Super Flangeless Fittings 시리즈

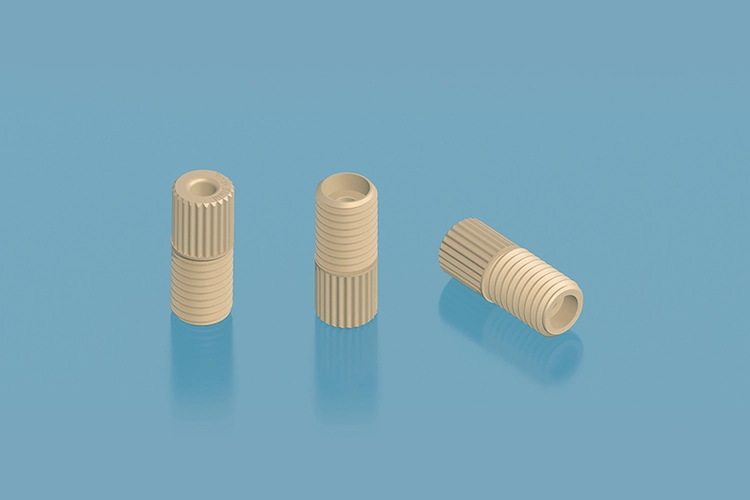

Super Flangeless Fittings

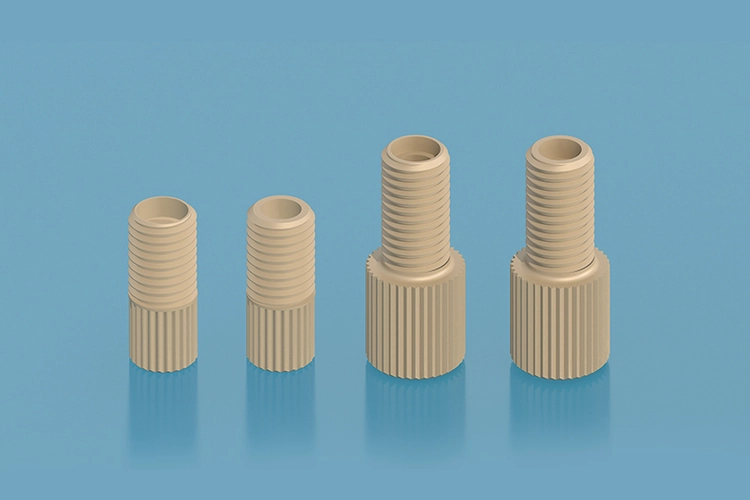

Super Flangeless Fittings, an advanced type of our flangeless fittings, are made of two different configurations with the difference of with or without lock ring, all of them are workable for tubing OD1.6/2.0/.5/3.0/3.175/3.2mm. PEEK is a type of material with hard mechanical strength, it is suitable for hydraulic systems that require repeated disassembly and relative high pressure in liquid chromatography and biological analysis instruments.
Video
PEEK Flanged Fittings Features at-a-Glance
1. High coefficient of friction, better than PTFE in terms of impact resistance, etc.; high mechanical strength, fittings show no loosening after tightening.
2. Can be used with 1.6/2.0/2.5/3.0/3.2mm OD rigid tubing can be disassembled repeatedly without affecting its sealing.
3. Prevent pipe deformation to realize stable velocity
4. Resist tubing twist when hand screwing
5. Frequent disassembly Supported
6. PEEK material, insoluble in almost all solvents except concentrated sulphuric acid. High Pressure and Corrosion resistance. Good aging resistance.

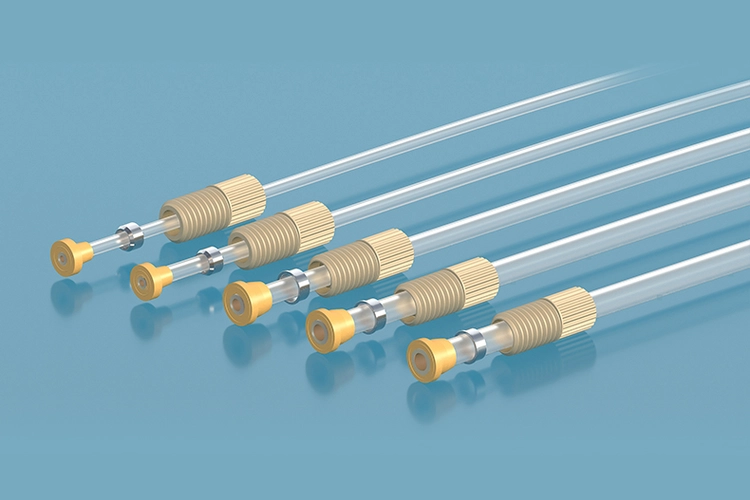

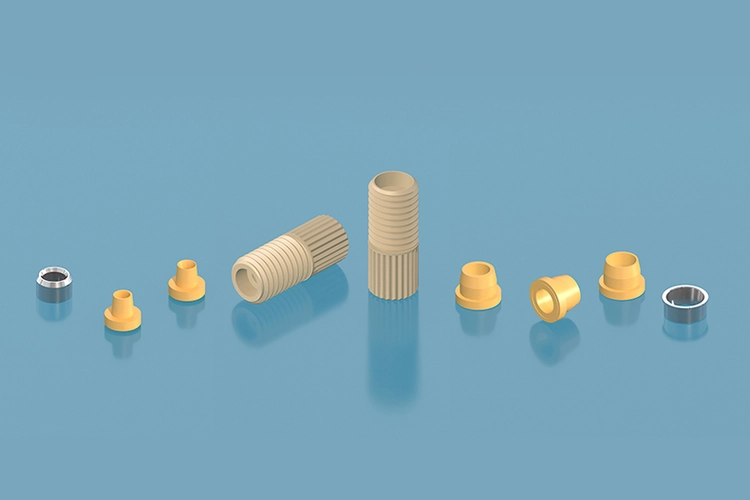

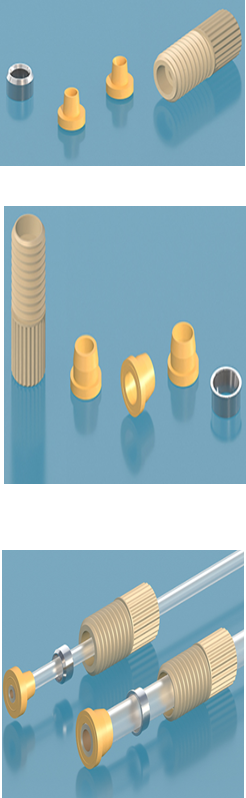

Super Flangeless Fittings --3 piece set

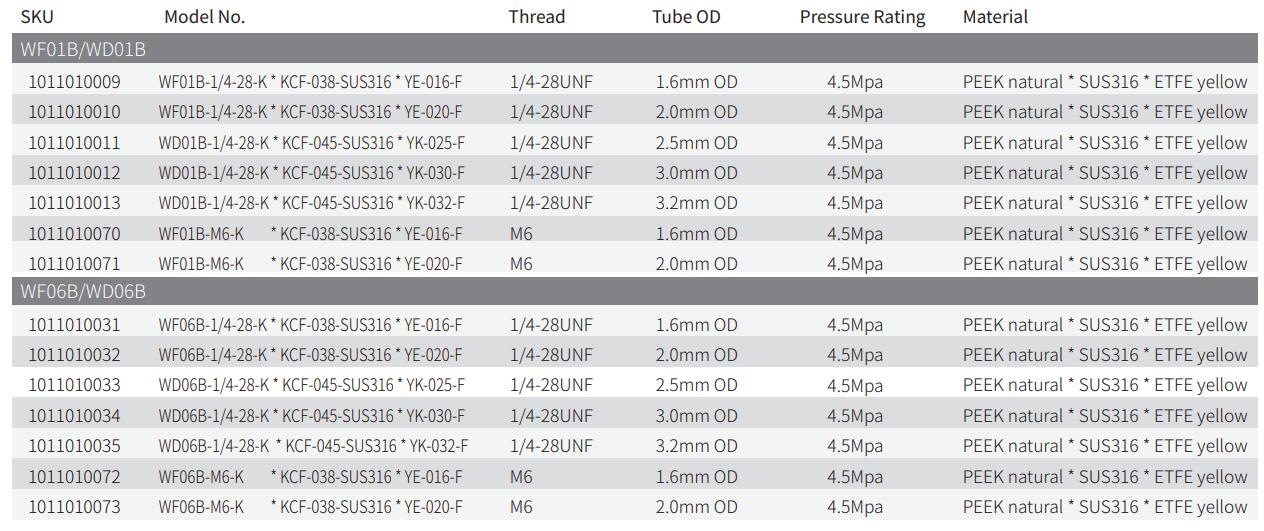

Specification
| Photo | Product Code | Product Name | Model No. | Specification | Unit | Material | Tubing Size (mm) |
 | 1011010009 | PEEK Flangeless Fittings | WF01B-1/4-28-K+YE-016-F+KCF-038-SUS316 | WF01B-1/4-28-K고압용+1.6금속링이포함 3set | Set | PEEK+ETFE+SUS316 | OD 1.6mm |
| 1011010010 | PEEK Flangeless Fittings | WF01B-1/4-28-K+YE-020-F+KCF-038-SUS316 | WF01B-1/4-28-K고압용+2.0금속링이포함 3set | Set | PEEK+ETFE+SUS316 | OD 2.0mm | |
| 1011010011 | PEEK Flangeless Fittings | WD01B-1/4-28-K+YK-025-F+KCF-045-SUS316 | WD01B-1/4-28-K고압용+2.5금속링이포함 3set | Set | PEEK+ETFE+SUS316 | OD 2.5mm | |
| 1011010012 | PEEK Flangeless Fittings | WD01B-1/4-28-K+YK-030-F+KCF-045-SUS316 | WD01B-1/4-28-K+3.0금속링이포함 3set | Set | PEEK+ETFE+SUS316 | OD 3.0mm | |
| 1011010013 | PEEK Flangeless Fittings | WD01B-1/4-28-K+YK-032-F+KCF-045-SUS316 | WD01B-1/4-28-K+3.2금속링이포함 3set | Set | PEEK+ETFE+SUS316 | OD 3.2mm | |
| 1011010031 | PEEK Flangeless Fittings | WF06B-28K+YE-016F+KCF-038SUS316 | WF06B-1/4-28-K（PEEKNut）+YE-016-F（ETFE링）+KCF-038-SUS316ferrule | Set | PEEK+ETFE+SUS316 | OD 1.6mm | |
| 1011010032 | PEEK Flangeless Fittings | WF06B-28K+YE-020F+KCF-038SUS316 | WF06B-1/4-28-K（PEEKNut）+YE-020-F（ETFE링）+KCF-038-SUS316ferrule | Set | PEEK+ETFE+SUS316 | OD 2.0mm | |
| 1011010033 | PEEK Flangeless Fittings | WD06B-28K+YK-025F+KCF-045SUS316 | WD06B-1/4-28-K（PEEKNut）+YK-025-F（ETFE링）+KCF-045-SUS316ferrule | Set | PEEK+ETFE+SUS316 | OD 2.5mm | |
| 1011010034 | PEEK Flangeless Fittings | WD06B-28K+YK-030F+KCF-045SUS316 | WD06B-1/4-28-K（PEEKNut）+YK-030-F（ETFE링）+KCF-045-SUS316ferrule | Set | PEEK+ETFE+SUS316 | OD 3.0mm | |
| 1011010035 | PEEK Flangeless Fittings | WD06B-28K+YK-032F+KCF-045SUS316 | WD06B-1/4-28-K（PEEKNut）+YK-032-F（ETFE링）+KCF-045-SUS316ferrule | Set | PEEK+ETFE+SUS316 | OD 3.2mm | |
| 1011010070 | PEEK Flangeless Fittings | WF01B-M6K+YE-016-F+KCF-038-SUS316 | WF01B-M6K 고압용 1.6금속링이포함 3set | Set | PEEK+ETFE+SUS316 | OD 1.6mm | |
| 1011010071 | PEEK Flangeless Fittings | WF01B-M6K+YE-020-F+KCF-038-SUS316 | WF01B-M6K 고압용 2.0금속링이포함 3set | Set | PEEK+ETFE+SUS316 | OD 2.0mm | |
| 1011010072 | PEEK Flangeless Fittings | WF06B-M6-K+YE-016F+KCF-038SUS316 | WF06B-M6-K（PEEKNut）+YE-016-F（ETFE링）+KCF-038-SUS316ferrule | Set | PEEK+ETFE+SUS316 | OD 1.6mm | |
| 1011010073 | PEEK Flangeless Fittings | WF06B-M6K+YE-020F+KCF-038SUS316 | WF06B-M6-K（PEEKNut）+YE-020-F（ETFE링）+KCF-038-SUS316ferrule | Set | PEEK+ETFE+SUS316 | OD 2.0mm |
Application Note
* Ensure the end of tubing has a clean, square, burr-free cut .

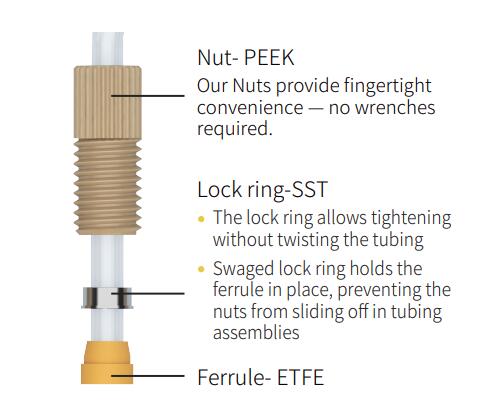

* Make sure the locking ring is oriented correctly! The flattened end of the ring should face towards the nut with the narrow end of the ferrule towards the ring.

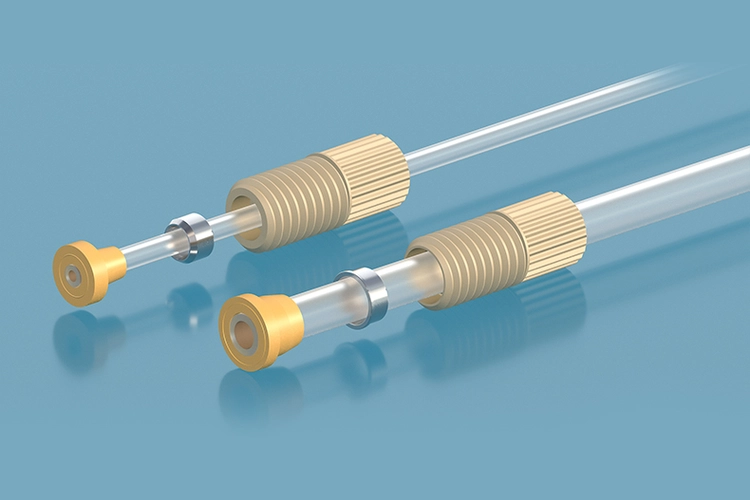

Step 1. Slide the PEEK nut, followed by the 316 SST sleeve and ETFE ferrule, at least 3/16" (4.7625m m) from the end of clean cut tubing
Step 2. Insert the assembly into the receiving port, pushing the tubing into the port until it bottoms out
Step 3. Finger tighten the fittings into the port until snug
Specification of Super Flangeless Fittings

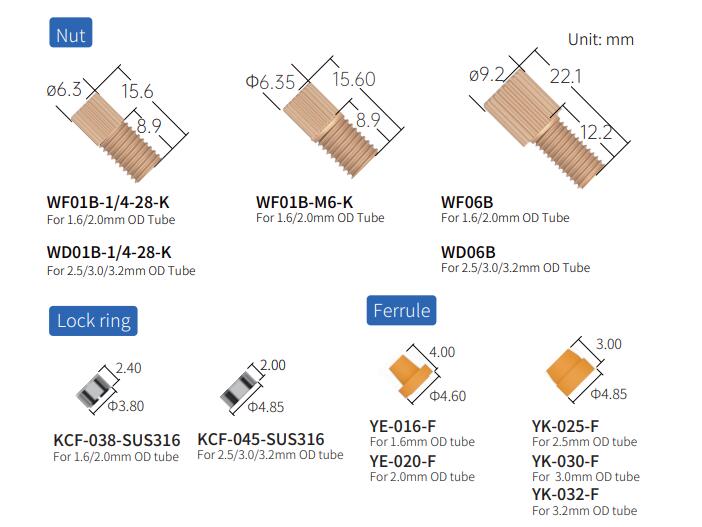

Dimension (unit: mm) of Super Flangeless Fittings
모바일 환경에서는 표를 좌·우로 스크롤해주세요.
