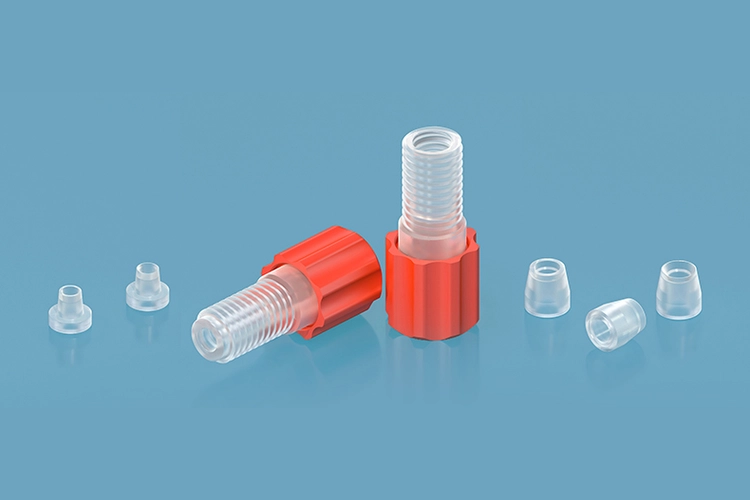

[Fitting] Pre-torque Flangeless Fittings two-piece set UNF나사탭 연결 아답터 피팅 PP,PTFE 재질 1/4-28UNF Thread HPLC용
SALE

4,900원 6,000원

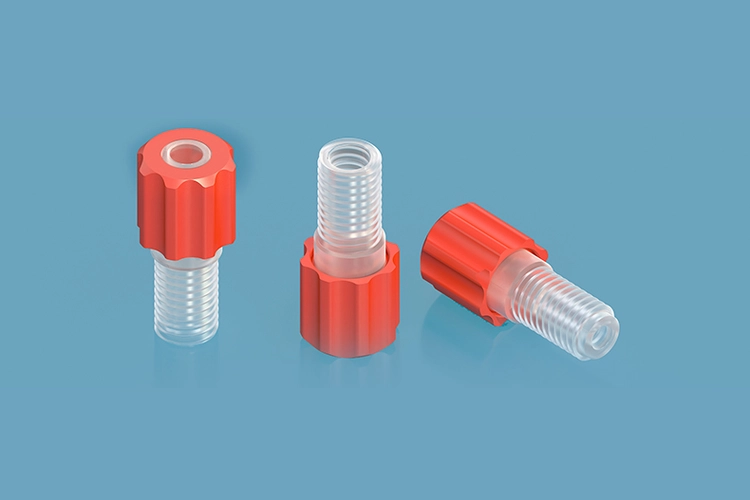

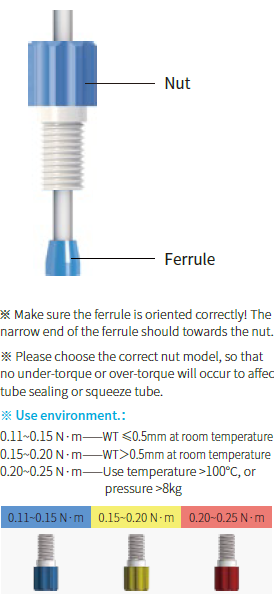

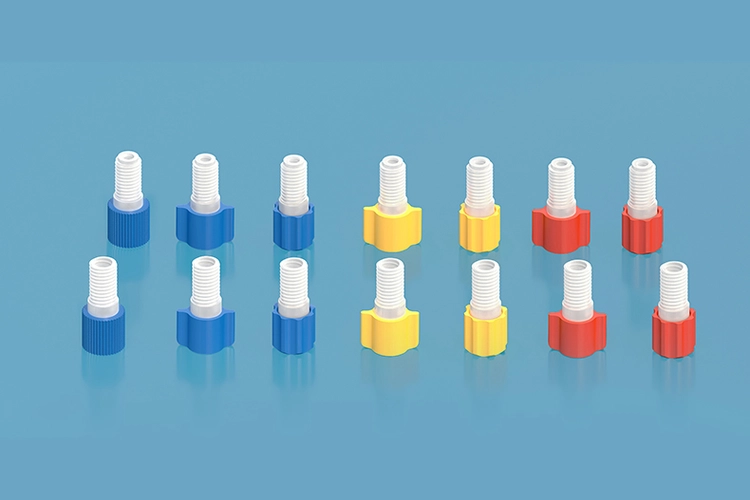

Pre-torque flangeless fittings offers a unique system for hand-tight fittings. As the fitting is tightened, the resistance of the cap increases until the correct torque is reached at which point the cap clicks. The user is able to hand-tighten the fittings without tools or guesswork and be confident that the fitting is properly seated, creating a secure seal without damaging the port through over-tightening. The fitting can be unscrewed and reused dozens of times.
Resistant to chemical corrosion and various organic substances, including PTFE and PP materials.

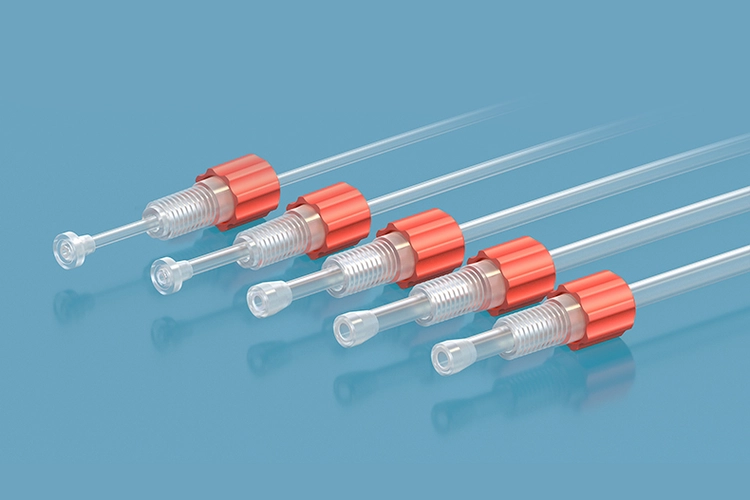

Used for standard rigid tubing OD 1.6/2.0/2.5/3.0/3.2mm, easy and fast installation.
Thread：1/4-28UNF，M6
REACH and ROHS Certified ,Biocompatibility reports available.

0

상품

원산지 CHINA

적립

490 포인트 적립예정 적립예정

구매

최소 구매 수량 10

배송

택배 · 기본 4,000원 · 도서산간 배송비 popover

120,000원 이상 구매 시 무료배송

구매평

Q&A

반품/교환

구매하기 장바구니 0

장바구니

구매하기 구매하기

구매평

Q&A

반품/교환

상품이 없습니다.

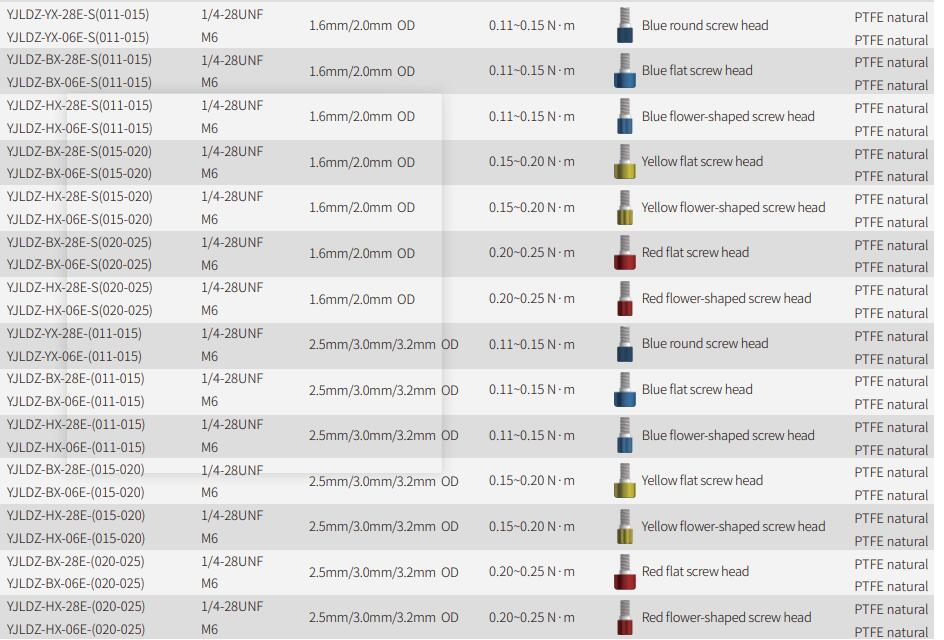

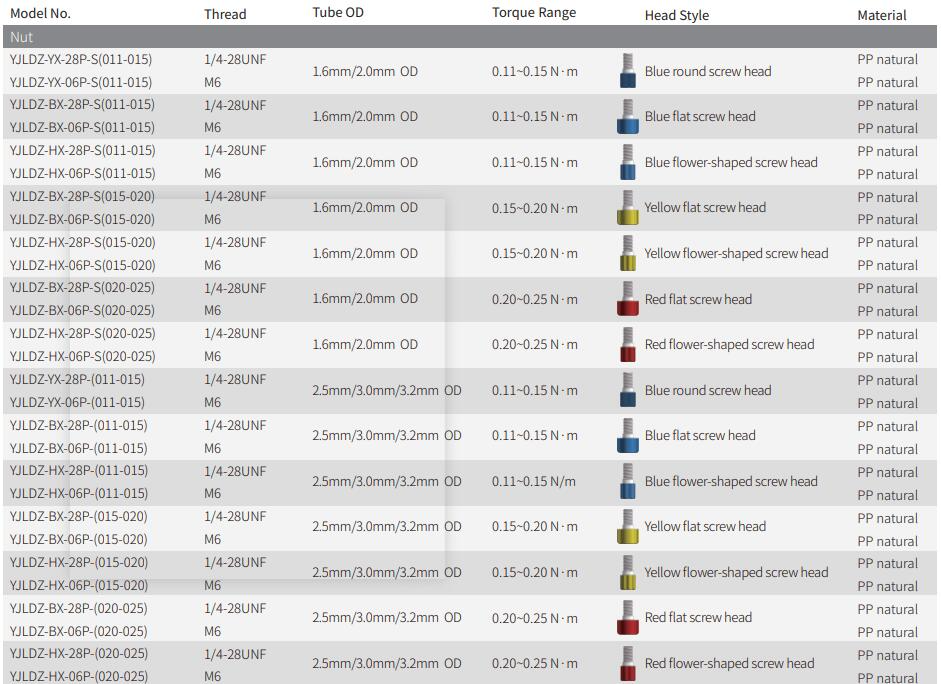

Photo	Product Code	Product Name	Model No.	Specification (CN)	Unit	Material	Tubing Size (mm)
	1006020001	Pre-torque Flangeless Fittings	YJLDZ-YX-28E（011/015）	1/4-28PTFE（0.11-0.15N/M）	Piece	PTFE	OD 2.5/3.0/3.2
	1006020002	Pre-torque Flangeless Fittings	YJLDZ-YX-28P（011/015）	1/4-28PP（0.11-0.15N/M）	Piece	PP	OD 2.5/3.0/3.2
	1006020003	Pre-torque Flangeless Fittings	YJLDZ-YX-06E（011/015）	M6PTFE（0.11-0.15N/M）	Piece	PTFE	OD 2.5/3.0/3.2
	1006020004	Pre-torque Flangeless Fittings	YJLDZ-YX-06P（011/015）	M6PP（0.11-0.15N/M）	Piece	PP	OD 2.5/3.0/3.2
	1006020005	Pre-torque Flangeless Fittings	YJLDZ-BX-28E（011/015）	1/4-28PTFE（0.11-0.15N/M）	Piece	PTFE	OD 2.5/3.0/3.2
	1006020006	Pre-torque Flangeless Fittings	YJLDZ-BX-28P（011/015）	1/4-28PP（0.11-0.15N/M）	Piece	PP	OD 2.5/3.0/3.2
	1006020009	Pre-torque Flangeless Fittings	YJLDZ-HX-28E（011/015）	1/4-28PTFE（0.11-0.15N/M）	Piece	PTFE	OD 2.5/3.0/3.2
	1006020010	Pre-torque Flangeless Fittings	YJLDZ-HX-28P（011/015）	1/4-28PP（0.11-0.15N/M）	Piece	PP	OD 2.5/3.0/3.2
	1006020011	Pre-torque Flangeless Fittings	YJLDZ-HX-06E（011/015）	M6PTFE（0.11-0.15N/M）	Piece	PTFE	OD 2.5/3.0/3.2
	1006020013	Pre-torque Flangeless Fittings	YJLDZ-YX-28E-S（011/015）	1/4-28PTFE（0.11-0.15N/M）	Piece	PTFE	OD 1.6/2.0
	1006020014	Pre-torque Flangeless Fittings	YJLDZ-YX-28P-S（011/015）	1/4-28PP（0.11-0.15N/M）	Piece	PP	OD 1.6/2.0
	1006020015	Pre-torque Flangeless Fittings	YJLDZ-YX-06E-S（011/015）	M6PTFE（0.11-0.15N/M）	Piece	PTFE	OD 1.6/2.0
	1006020016	Pre-torque Flangeless Fittings	YJLDZ-YX-06P-S（011/015）	M6PP（0.11-0.15N/M）	Piece	PP	OD 1.6/2.0
	1006020018	Pre-torque Flangeless Fittings	YJLDZ-BX-28P-S（011/015）	1/4-28PP（0.11-0.15N/M）	Piece	PP	OD 1.6/2.0
	1006020019	Pre-torque Flangeless Fittings	YJLDZ-BX-06E-S（011/015）	M6PTFE（0.11-0.15N/M）	Piece	PTFE	OD 1.6/2.0
	1006020021	Pre-torque Flangeless Fittings	YJLDZ-HX-28E-S（011/015）	1/4-28PTFE（0.11-0.15N/M）	Piece	PTFE	OD 1.6/2.0
	1006020022	Pre-torque Flangeless Fittings	YJLDZ-HX-28P-S（011/015）	1/4-28PP（0.11-0.15N/M）	Piece	PP	OD 1.6/2.0
	1006020023	Pre-torque Flangeless Fittings	YJLDZ-HX-06E-S（011/015）	M6PTFE（0.11-0.15N/M）	Piece	PTFE	OD 1.6/2.0

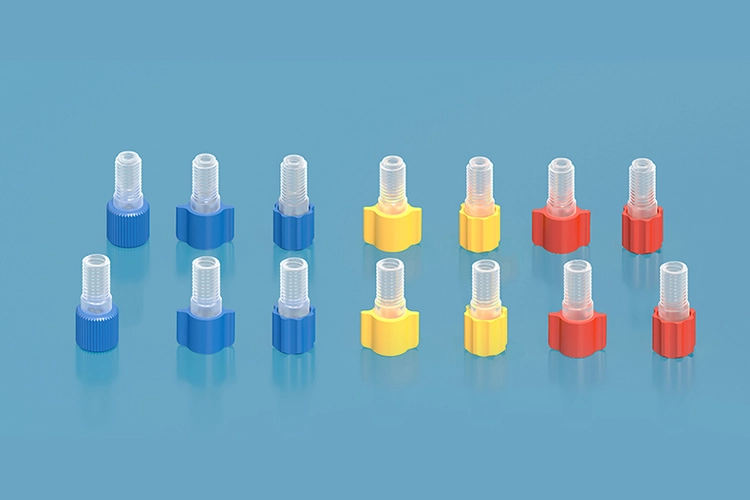

	1006020025	Pre-torque Flangeless Fittings	YJLDZ-YX-28E（015/020）-Yellow	1/4-28PTFE（0.15-0.20N/M）	Piece	PTFE	OD 2.5/3.0/3.2
	1006020026	Pre-torque Flangeless Fittings	YJLDZ-YX-28E（020/025）-Red	1/4-28PTFE（0.20-0.25N/M）	Piece	PTFE	OD 2.5/3.0/3.2
	1006020027	Pre-torque Flangeless Fittings	YJLDZ-YX-28P（015/020）-Yellow	1/4-28PP（0.15-0.20N/M）	Piece	PP	OD 2.5/3.0/3.2
	1006020028	Pre-torque Flangeless Fittings	YJLDZ-YX-28P（020/025）-Red	1/4-28PP（0.20-0.25N/M）	Piece	PP	OD 2.5/3.0/3.2
	1006020033	Pre-torque Flangeless Fittings	YJLDZ-BX-28E（015/020）-Yellow	1/4-28PTFE（0.15-0.20N/M）	Piece	PTFE	OD 2.5/3.0/3.2
	1006020034	Pre-torque Flangeless Fittings	YJLDZ-BX-28E（020/025）-Red	1/4-28PTFE（0.20-0.25N/M）	Piece	PTFE	OD 2.5/3.0/3.2
	1006020035	Pre-torque Flangeless Fittings	YJLDZ-BX-28P（015/020）-Yellow	1/4-28PP（0.15-0.20N/M）	Piece	PP	OD 2.5/3.0/3.2
	1006020036	Pre-torque Flangeless Fittings	YJLDZ-BX-28P（020/025）-Red	1/4-28PP（0.20-0.25N/M）	Piece	PP	OD 2.5/3.0/3.2
	1006020041	Pre-torque Flangeless Fittings	YJLDZ-HX-28E（015/020）-Yellow	1/4-28PTFE（0.15-0.20N/M）	Piece	PTFE	OD 2.5/3.0/3.2
	1006020042	Pre-torque Flangeless Fittings	YJLDZ-HX-28E（020/025）-Red	1/4-28PTFE（0.20-0.25N/M）	Piece	PTFE	OD 2.5/3.0/3.2
	1006020043	Pre-torque Flangeless Fittings	YJLDZ-HX-28P（015/020）-Yellow	1/4-28PP（0.15-0.20N/M）	Piece	PP	OD 2.5/3.0/3.2
	1006020044	Pre-torque Flangeless Fittings	YJLDZ-HX-28P（020/025）-Red	1/4-28PP（0.20-0.25N/M）	Piece	PP	OD 2.5/3.0/3.2
	1006020047	Pre-torque Flangeless Fittings	YJLDZ-HX-06P（015/020）-Yellow	M6PP（0.15-0.20N/M）	Piece	PP	OD 2.5/3.0/3.2
	1006020048	Pre-torque Flangeless Fittings	YJLDZ-HX-06P（020/025）-Red	M6PP（0.20-0.25N/M）	Piece	PP	OD 2.5/3.0/3.2
	1006020051	Pre-torque Flangeless Fittings	YJLDZ-YX-28P-S（015/020）-Yellow	1/4-28PP小孔（0.15-0.20N/M）	Piece	PP	OD 1.6/2.0
	1006020052	Pre-torque Flangeless Fittings	YJLDZ-YX-28P-S（020/025）-Red	1/4-28PP（0.20-0.25N/M）	Piece	PP	OD 1.6/2.0
	1006020065	Pre-torque Flangeless Fittings	YJLDZ-HX-28E-S（015/020）-Yellow	1/4-28PTFE（0.15-0.20N/M）	Piece	PTFE	OD 1.6/2.0
	1006020066	Pre-torque Flangeless Fittings	YJLDZ-HX-28E-S（020/025）-Red	1/4-28PTFE（0.20-0.25N/M）	Piece	PTFE	OD 1.6/2.0
	1006020067	Pre-torque Flangeless Fittings	YJLDZ-HX-28P-S（015/020）-Yellow	1/4-28PP（0.15-0.20N/M）	Piece	PP	OD 1.6/2.0
	1006020068	Pre-torque Flangeless Fittings	YJLDZ-HX-28P-S（020/025）-Red	1/4-28PP（0.20-0.25N/M）	Piece	PP	OD 1.6/2.0

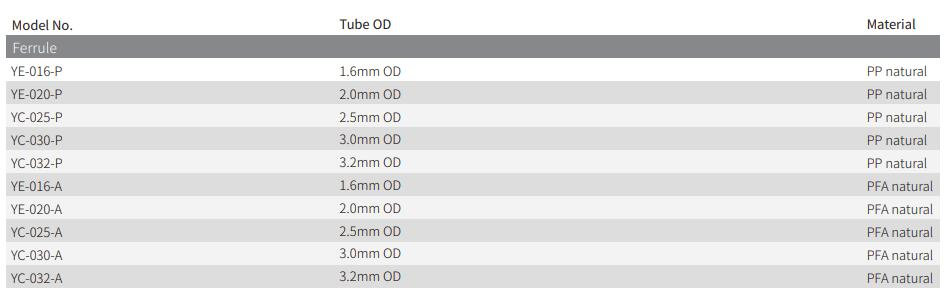

	1006110001	Flangeless Ferrule	YC-032-P		Piece	pp	OD 3.2
	1006110002	Flangeless Ferrule	YC-030-P		Piece	pp	OD 3.0
	1006110003	Flangeless Ferrule	YC-025-P		Piece	pp	OD 2.5
	1006110004	Flangeless Ferrule	YC-020-P		Piece	pp	OD 2.0
	1006110005	Flangeless Ferrule	YC-016-P		Piece	pp	OD 1.6
	1006110006	Flangeless Ferrule	YC-032-E		Piece	PTFE	OD 3.2
	1006110007	Flangeless Ferrule	YC-030-E		Piece	PTFE	OD 3.0
	1006110008	Flangeless Ferrule	YC-025-E		Piece	PTFE	OD 2.5
	1006110009	Ferrule	YC-020-E		Piece	PTFE	OD 2.0
	1006110010	Ferrule	YC-016-E		Piece	PTFE	OD 1.6
	1006110017	Flangeless Ferrule	YC-025-A		Piece	PFA	OD 2.5
	1006110018	Flangeless Ferrule	YC-030-A		Piece	PFA	OD 3.0
	1006110019	Flangeless Ferrule	YC-032-A		Piece	PFA	OD 3.2
	1006110020	Ferrule	YC-032-P-Yellow		Piece	pp	OD 3.2
	1006110011	Flangeless Ferrule	YE-016-P		Piece	pp	OD 1.6
	1006110013	Flangeless Ferrule	YE-016-A		Piece	PFA	OD 1.6
	1006110014	Flangeless Ferrule	YE-020-P		Piece	pp	OD 2.0
	1006110016	Flangeless Ferrule	YE-020-A		Piece	PFA	OD 2.0
