[Fitting] Barbed Union 스트레이트 피팅 바브드유니온 레듀서 피팅 reducer fitting straight 일자연결피팅

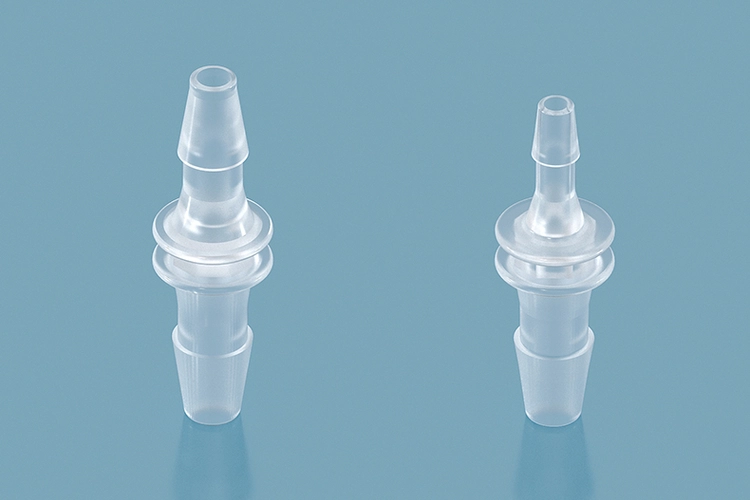

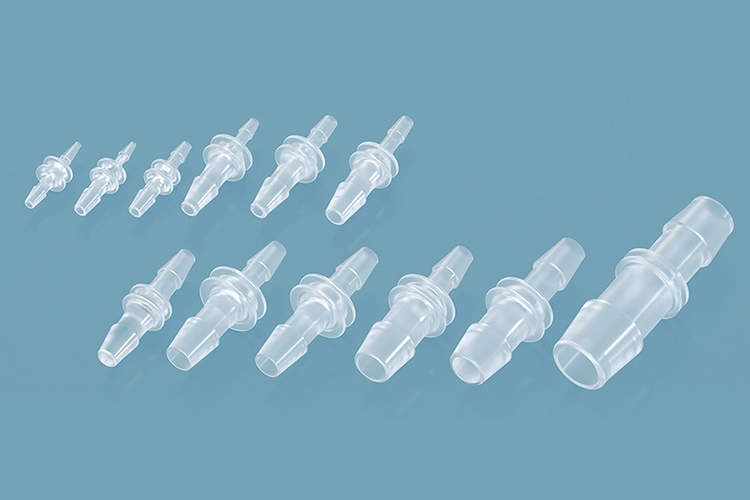

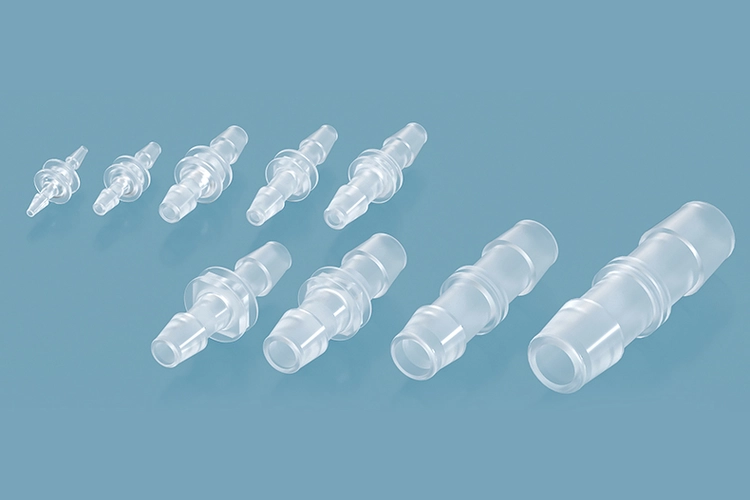

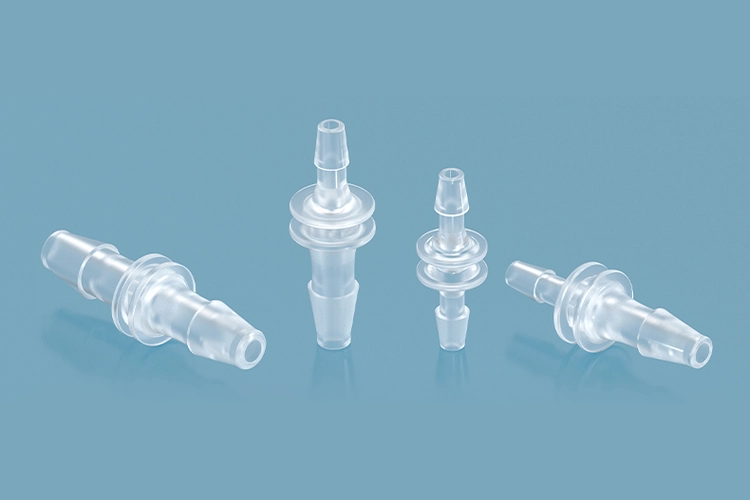

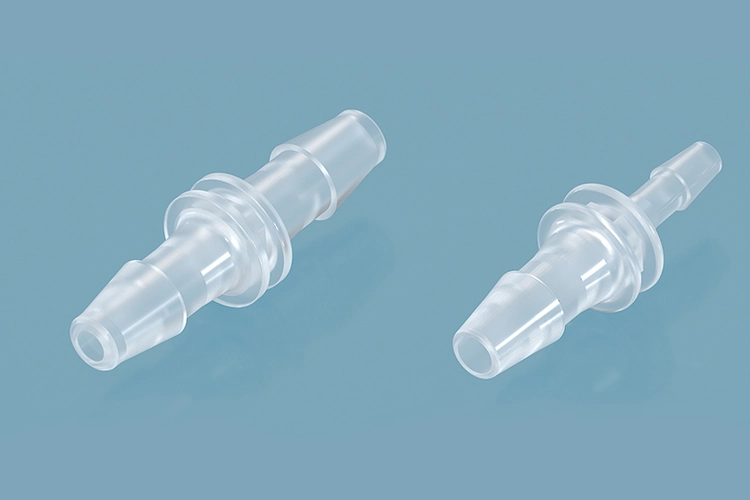

Barbed Union

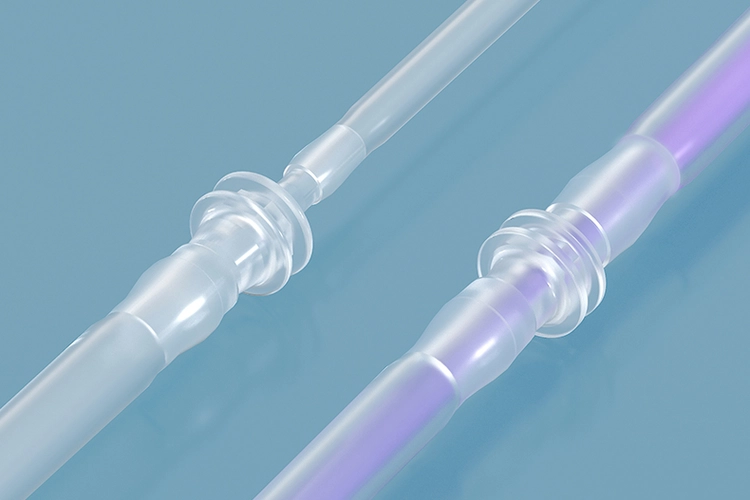

Barbed unions are made of food grade Polypropylene, which can be sterilized via gamma radiation. This type of tube fitting is available in a variety of standard sizes from 1/6″ to 11/32″ for low pressure plumbing applications with various types of hoses. The barbs grip the inside of the flexible tube to create a seal and easily connect fluid paths without the use of tools.
Video of Barbed Union
Specification of Barbed Union
| Photo | Product Code | Product Name | Model No. | Specification (CN) | Material | Tubing Size (mm) |
 | 1008020001 | Equal Union | DI-016 | RZ-1/16（mm1.6） | PP | ID1.0-1.6 |
| 1008020002 | Equal Union | DI-024 | RZ-3/32（mm2.4） | PP | ID1.6-2.4 | |
| 1008020003 | Equal Union | DI-032 | RZ-1/8（mm3.2） | PP | ID2.4-3.2 | |
| 1008020004 | Equal Union | DI-040 | RZ-5/32（mm4.0） | PP | ID3.2-4.0 | |
| 1008020005 | Equal Union | DI-048 | RZ-3/16（mm4.8） | PP | ID4.0-4.8 | |
| 1008020006 | Equal Union | DI-064 | RZ-1/4（mm6.4） | PP | ID4.8-6.4 | |
| 1008020007 | Equal Union | DI-087 | RZ-11/32（mm8.7） | PP | ID6.4-8.7 | |
| 1008020031 | Equal Union | DI-095 | ID9.5-16.6mm | PP | ID8.7-9.5 | |
| 1008020032 | Equal Union | DI-127 | RZ-1/4（mm127） | PP | ID9.5-12.7 | |
 | 1008020008 | Reducing Union | BI-016/024 | 1/16*3/32 | PP | ID(1.0-1.6)*(1.6-2.4) |
| 1008020009 | Reducing Union | BI-016/032 | 1/16*1/8 | PP | ID(1.0-1.6)*(2.4-3.2) | |
| 1008020010 | Reducing Union | BI-024/032 | 3/32*1/8 | PP | ID(1.6-2.4)*(2.4-3.2) | |
| 1008020011 | Reducing Union | BI-024/040 | 3/32*5/32 | PP | ID(1.6-2.4)*(3.2-4.0) | |
| 1008020012 | Reducing Union | BI-032/040 | 1/8*5/32 | PP | ID(2.4-3.2)*(3.2-4.0) | |
| 1008020013 | Reducing Union | BI-032/048 | 1/8*3/16 | PP | ID(2.4-3.2)*(4.0-4.8) | |
| 1008020014 | Reducing Union | BI-040/048 | 5/32*3/16 | PP | ID(3.2-4.0)*(4.0-4.8) | |
| 1008020015 | Reducing Union | BI-040/064 | 5/32*1/4 | PP | ID(3.2-4.0)*(4.8-6.4) | |
| 1008020016 | Reducing Union | BI-048/064 | 3/16*1/4 | PP | ID(4.0-4.8)*(4.8-6.4) | |
| 1008020017 | Reducing Union | BI-048/087 | 3/16*11/32 | PP | ID(4.0-4.8)*(6.4-8.7) | |
| 1008020018 | Reducing Union | BI-064/087 | 1/4*11/32 | PP | ID(4.8-6.4)*(6.4-8.7) | |
| 1008020033 | Reducing Union | BI-095/127 | ID9.5-16.6mm/12.7-19.7mm | PP | ID(8.7-9.5)*(9.5-12.7) |

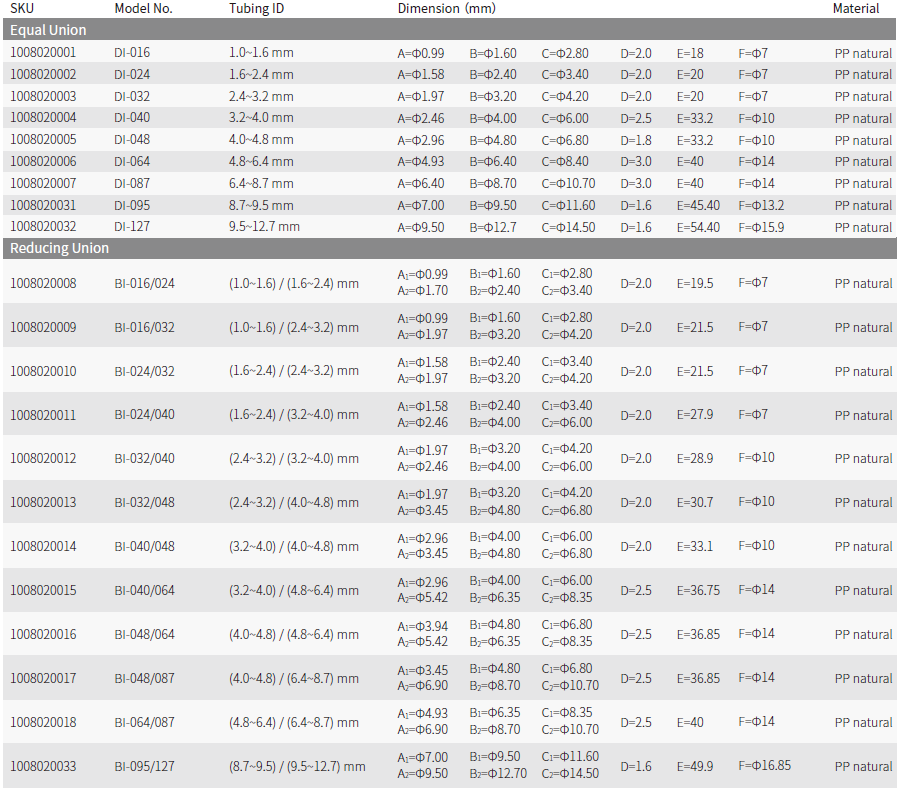

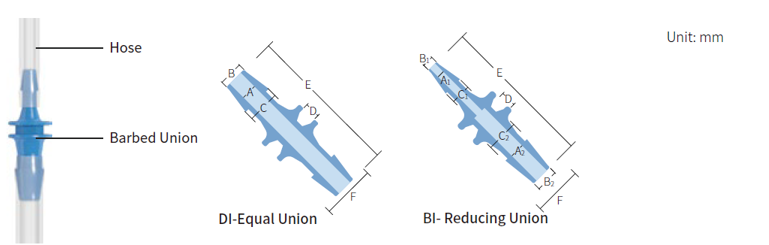

Dimension (unit: mm) of Barbed Union
Equal Barbed Union

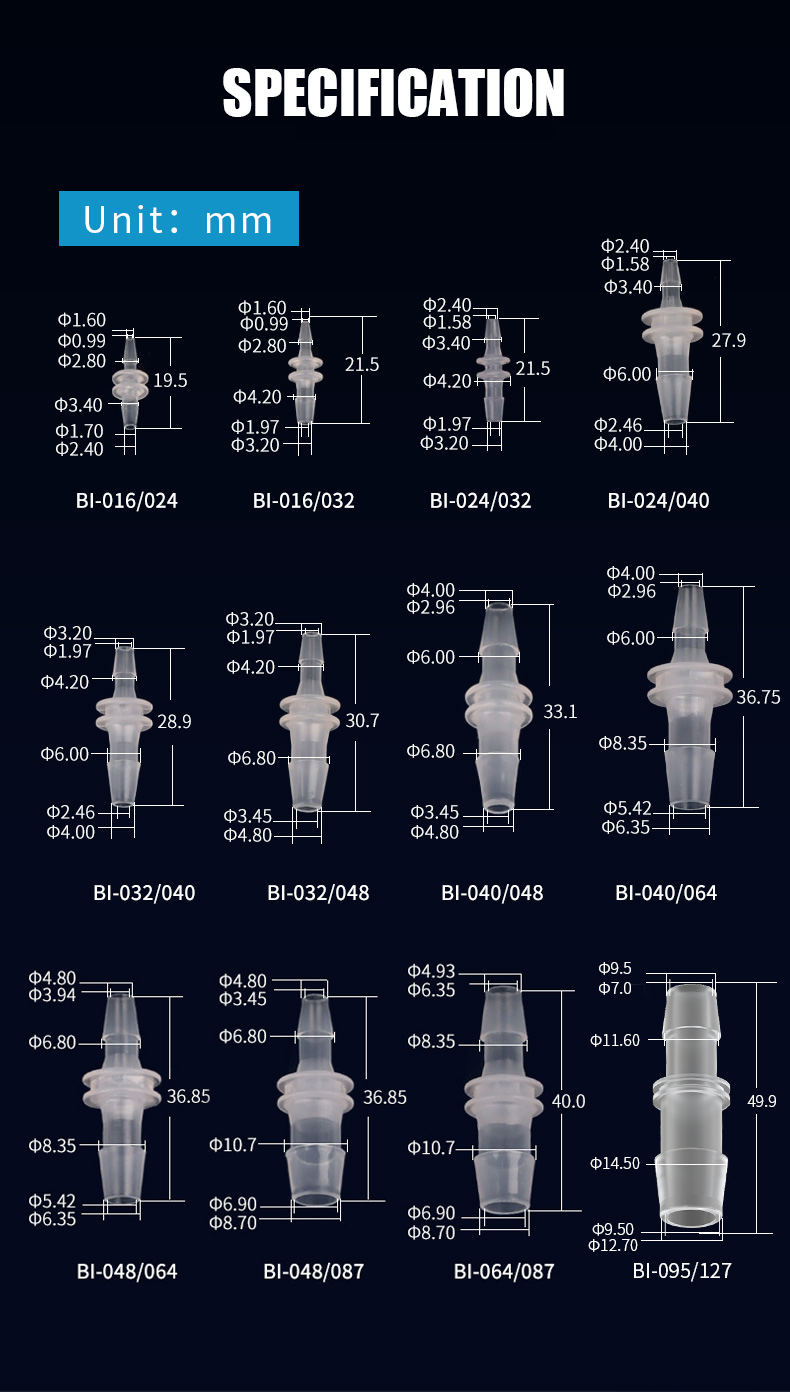

Barbed Reducer Connector
모바일 환경에서는 표를 좌·우로 스크롤해주세요.
