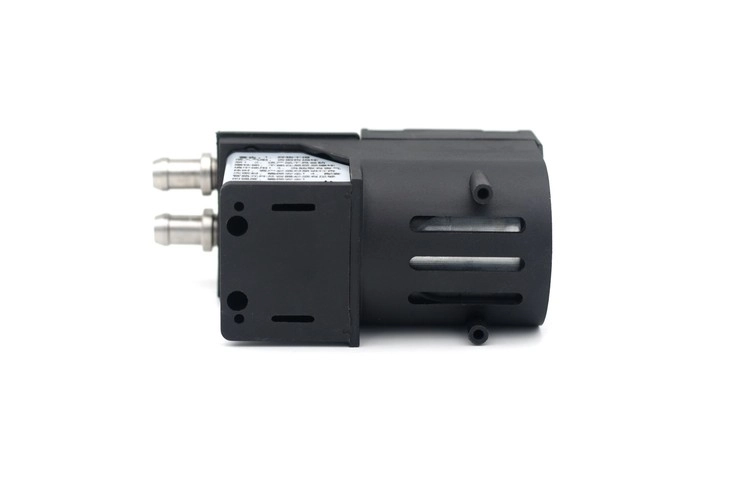

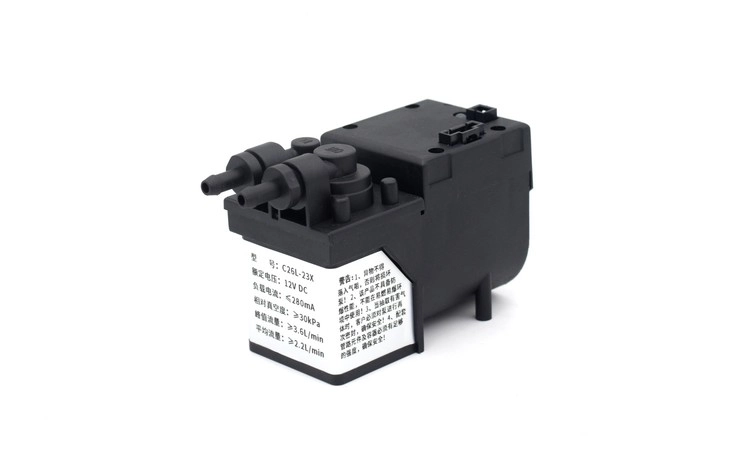

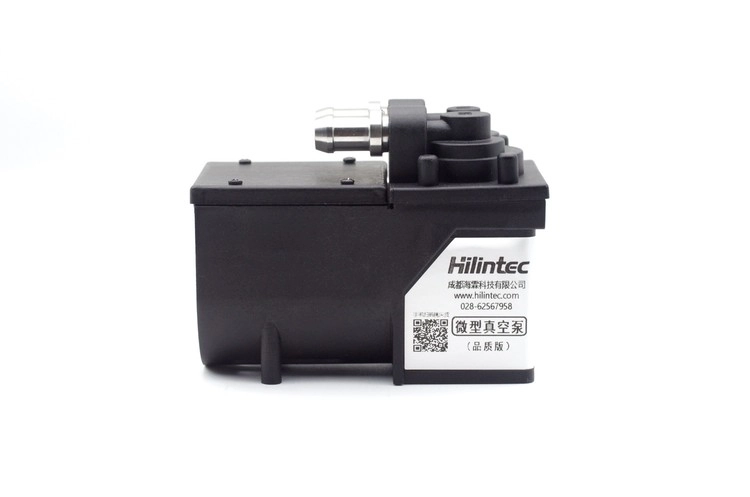

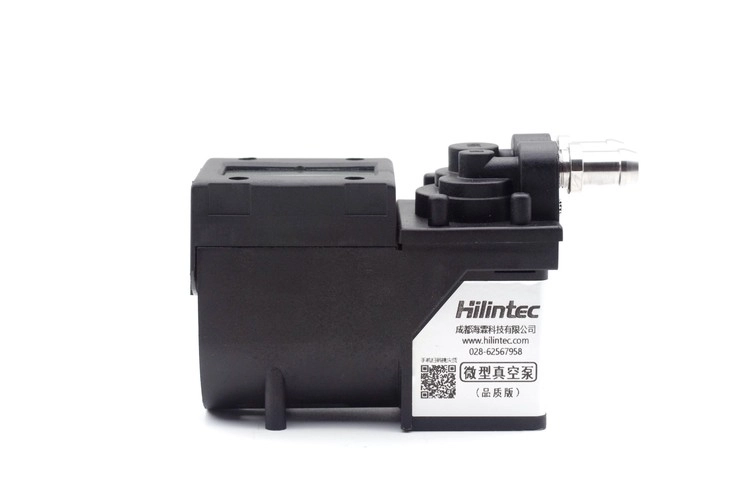

[Hilintec] C26 Diaphragm Micro Vacuum Pump for Gas
C26 is a micro vacuum pump for gas. It is a high-end micro air pump with BLDC motor. It has features like long service life, low vibration and low noise level. It is especially suitable for scenarios constant gas sampling is required. It also has benifits like low electromagnetic interference, and controllabe flow rate. It supports 12V or 24V DC power supply, with EPDM and FKM two elastomer material options. Its maximum average flow rate is 2.4L/min. If you need more flow under the same volume, or need to output positive pressure. You can refer to C30 vacuum pump or D35 air pump vacuum and compressor.

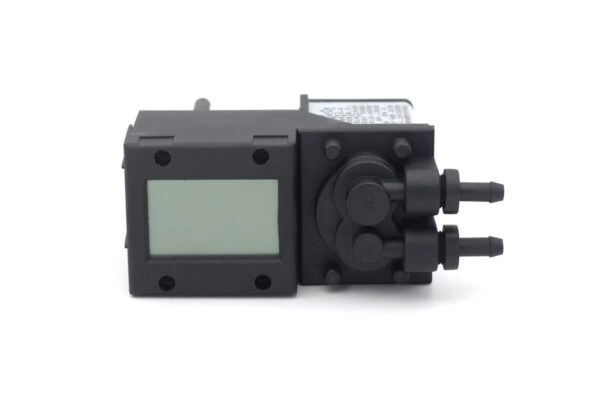

The knob speed control type and frequency speed control type are equipped with working status indicator lights. This indicatior can directly feed back the working status of the pump. The top configuration type is equipped with an LCD touch screen that can display working status and fault codes.
By default, we provide EPDM rubber diaphragms and check valves. Depending on the medium, you can also choose FKM diaphragms and check valves.

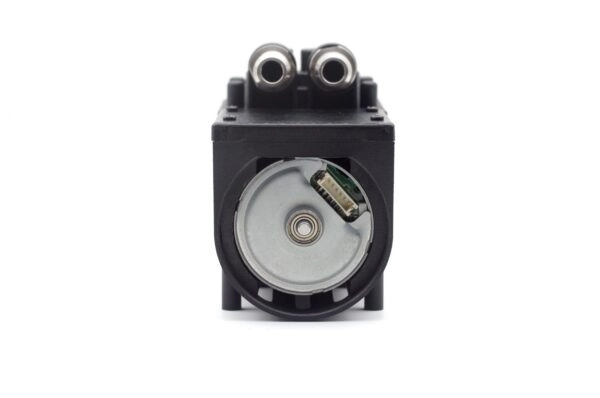

This model is driven by brush-less motor which has the advantages of long service life, low interference and high reliability. This micro pump can run continuously under the maximum load, and the continuous operating life of the quality version can reach 12000 hours
Equipped with overheating protection, overload protection, power supply under-voltage protection, over-voltage protection and reverse connection protection function (except the basic type). These protections can prevent accidental damage to the pump.
This series of micro vacuum pumps has Rc1/8 internal thread interface. This micro pump can be installed with stainless steel push-in connectors (6mm and 8mm inner diameter), reinforced nylon hose connector, stainless steel hose connectors and PP hose connectors. This product is equipped with reinforced nylon hose connectors as standard. The standard reinforced nylon hose connector is recommended to match 4*8 silicone tube. The optional plastic and stainless steel hose connectors are recommended to match with 7*13 silicone hose. The size of the tube can be appropriately changed according to the softness and hardness of the hose. There are two options of stainless steel push-in connectors for matching with 6*8 or 4*6mm hard tubes. The user can select the corresponding pneumatic connectors according to the pipeline situation when ordering.
The flow rate of the micro vacuum pump can be changed by adjusting the motor speed. The top configuration type is equipped with an LCD touch screen and speed regulation connector. This LCD screen can be used to start,stop and control the motor speed through the LCD touch screen, and also through frequency signals. Knob speed control type models have an external speed control knob. It can control the speed, start and stop of the pump. Frequency speed control type models can be controlled by user inputting frequency signal. The basic type has no speed control function. Please refer to Chapter 5 Electrical Connection for specific usage of different speed control methods.
When the mini pump is stopped due to abnormal power failure, the pump will continue to run according to the state and speed of the last power-off when the power supply is recovered. When using the knob or touch switch to start a normal working pump, the pump will continue to run at the speed before the last shutdown. (Note: This function can only work on the frequency speed control type, knob speed control type and LCD speed control of top configuration type.)
Model | C26L | |||
Material Option | Diaphragm: EPDM Valves: EPDM Pump Head: Fiber reinforced nylon | Diaphragm: EPDM Valves: EPDM Pump Head: Fiber reinforced nylon | Diaphragm: FKM Valves: FKM Pump Head: Fiber reinforced nylon | Diaphragm: FKM Valves: FKM Pump Head: Fiber reinforced nylon |
Voltage（V DC） | 24 | 12 | 24 | 12 |
Max. Load Current（mA） | ≤210 | ≤350 | ||
Max. Average Flow rate（L/min) | ≥2.4 | ≥2.2 | ||
Max. Peak Flow rate（L/min) | ≥3.6 | ≥3.6 | ||
Max. Vacuum (-kPa) | ≥30 | ≥30 | ||
Model | C26M | C26S | ||
Material Option | Diaphragm: EPDM Valves: EPDM Pump Head: Fiber reinforced nylon | Diaphragm: EPDM Valves: EPDM Pump Head: Fiber reinforced nylon | Diaphragm: EPDM Valves: EPDM Pump Head: Fiber reinforced nylon | Diaphragm: EPDM Valves: EPDM Pump Head: Fiber reinforced nylon |
Voltage（V DC） | 24 | 12 | 24 | 12 |
Max. Load Current（mA） | ≤210 | ≤330 | ≤210 | ≤330 |
Max. Average Flow rate（L/min) | ≥1.8 | ≥1.5 | ≥1.2 | ≥1.1 |
Max. Peak Flow rate（L/min) | ≥3.0 | ≥2.8 | ≥2.0 | ≥1.8 |
Max. Vacuum (-kPa) | ≥26 | ≥26 | ≥19 | ≥19 |
Material Options | |
Pump Head | Fiber reinforced PA6 |
Diaphragm | EPDM FKM |
Valves | EPDM FKM |
Motor | BLDC |
Connector Options | |
Default PA hose connector/ PP hose connector/ Stainless steel hose connector/ PC6 push-in quick connector/ PC8 push-in quick connector/ PA Rc1/8 inside thread | |
Function Options | |
Basic type Knob speed control Frequency speed control Top configuration |
Models | C26L/C26M/C26S | ||
Versions | Simplified | Standard | Premium |
Fully Loaded Lifetime（hrs） | 5000 | 8000 | 12000 |
Unloaded Lifetime（hrs） | 8000 | 12000 | 18000 |
Motor Lifetime（hrs） | 10000 | 15000 | 20000 |
Test conditions | In a clean and non-corrosive laboratory, the pump is fully loaded (the outlet is blocked, the inlet is directly connected to the atmosphere) or unloaded (the inlet and outlet are directly connected to the atmosphere), and runs continuously around the clock; ambient temperature: 5℃～33 ℃, relative humidity: 50%-85%, fluctuates with the climate. | ||
Working Condition | |||
Operating temperature | Permissible ambient temperature is 0℃～50℃, it is not suitable to be exposed to the sun, and it should work in a clean and ventilated environmen | ||
Medium | Permissible temperature of the medium is 5℃～50℃, the transferring gas is allowed to be rich in water vapor, but cannot contain solid particles | ||
Wetted materials | EPDM, FKM as optional; fiber reinforced nylon, | ||
