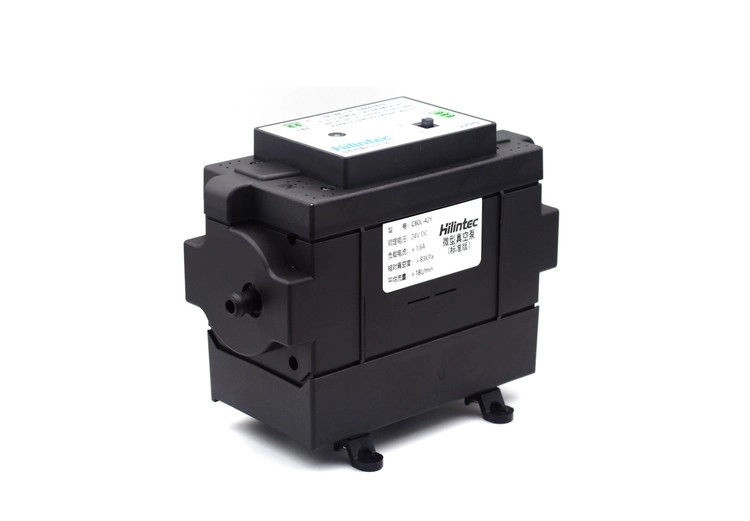

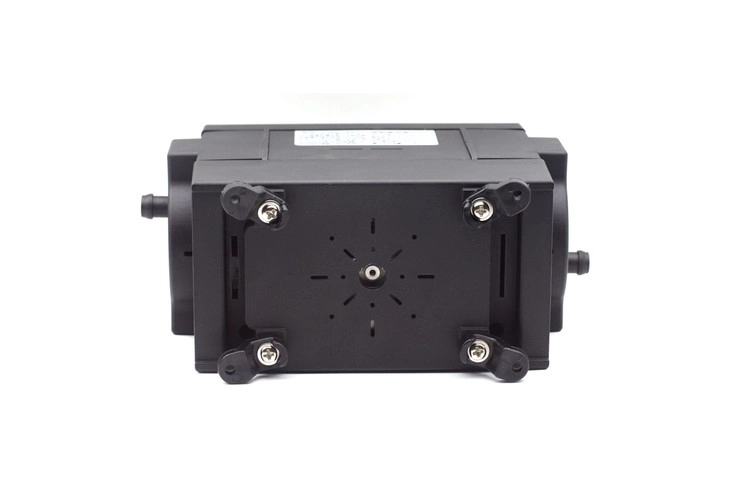

[Hilintec] C60 Diaphragm Mini Air Pump Vacuum
C60 is a durable electric diaphragm pump vacuum, equipped with BLDC motor. it is powered by 24 volt DC. This model have a big and controllable flow-rate, which is used for long-distance and large-flow gas sampling and negative pressure suction. This diaphragm pump can be configured with different pneumatic connectors and materials of elastomer.
Only the remote control type and basic type are equipped with working status indicator lights, which can visually feed back the working status of the pump. The touch control type and top configuration type are equipped with an LCD touch screen that can display working status and fault codes.
This model is driven by brush-less motors which have the advantages of long service life, low interference and high reliability.
Its maximum relative vacuum can reach -88kPa, and the flow–rate can be adjusted by adjusting the motor speed. Hilintec can also provide a higher flow-rate product selection under the same product dimensions, please refer to C61 Mini Vacuum Pump
Its diaphragm and check valves can be made of EPDM or FKM according to the requirements of the medium. Together with the PA6 pump head, it has good corrosion resistance.
Equipped with overheating protection, overload protection, power supply under-voltage and over-voltage protection and reverse connection protection function, which to the greatest extent prevents accidental damage to the pump.
The design of this series of pumps adopts modular connectors,using non-detachable reinforced nylon hose connectors as standard accessory.Customers can also choose Rc1/8 internal thread interface (materials can be reinforced nylon or stainless steel). This interface can be used with PC6 or PC8 stainless steel quick-change connectors, plastic (PP) hose connector, and stainless steel hose connectors.
The standard non-detachable reinforced nylon hose connectors and stainless steel hose connectors are recommended to be used with 7*13mm hoses; there are two options for quick-change connectors, matching hard tubes with outer diameters of 6mm and 8mm; plastic hose connectors are recommended to match 6*10mm hoses; customers can choose corresponding pneumatic connectors when ordering according to the specific pipeline situation. For ordering options, see section 3.5.

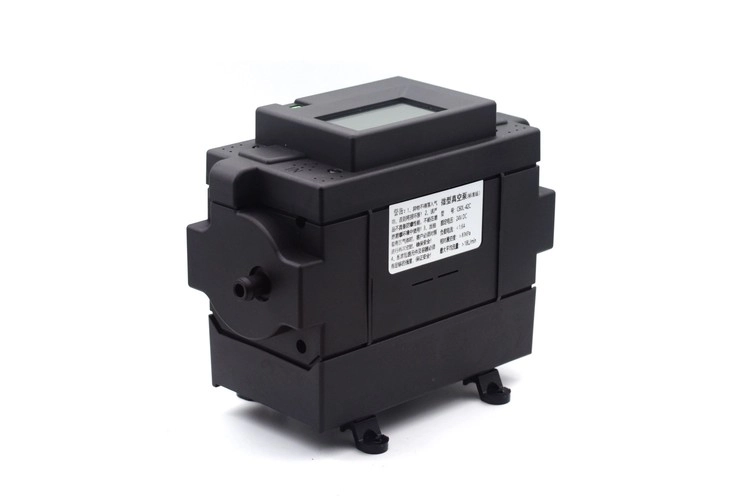

Only the touch control type and top configuration type are equipped with an LCD touch screen, which can control the start-stop and speed of the pump through the LCD touch screen. Flow rate can be easily adjusted through the speed control function. In addition, the top configuration type is also equipped with remote frequency speed control and remote voltage speed control functions.
With RS-485 serial port communication function, the running status of the pump can be monitored in real time through the serial port, which is convenient for checking working conditions and fault history query and control.
The Modbus communication protocol based on RS-485 can be customized for top configuration type products, through which users can monitor the pump speed, start-stop control and working status.
When the pump is stopped due to abnormal power failure, it will continue to run according to the state and speed of the last power-off when the power supply is recovered. When the pump can work normally, touch the screen to start the pump, it will continue to run at the speed before the last shutdown. (Note: This function is only valid on the touch control type and top configuration type.)
The flow rate of the pump can be changed by adjusting the motor speed. The touch control type and top configuration type are equipped with an LCD touch screen which can realize the start-stop control and motor speed control. In addition, the top configuration type also supports remote frequency speed control and remote voltage speed control. Through the wiring of the speed regulation connector (refer to Chapter 5 Electrical Connection), remote start-stop and speed control of the pump can be realized.
1.The basic type and remote control type are equipped with working status indicator lights. Users can understand the working status of the equipment through the color change of the indicator lights:
2.The touch control type and top configuration type are equipped with an LCD touch screen. Alarm codes will be displayed when different faults occur, which makes fault handling more convenient. (The figure below is for illustration only, please refer to Chapter 5 Alarms and Troubleshooting for details.)
Model | C60L | |
Material Option | Diaphragm: EPDM Valves: EPDM Pump Head: Fiber reinforced nylon | Diaphragm: FKM Valves: FKM Pump Head: Fiber reinforced nylon |
Voltage（V DC） | 24 | 24 |
Max. Load Current（A） | ≤1.6 | |
Max. Average Flow rate（L/min) | ≥17.5 | |
Max. Peak Flow rate（L/min) | ≥26.5 | |
Max. Vacuum (-kPa) | ≥88 | |
Material Options | |
Pump Head | Fiber reinforced PA6 |
Diaphragm | EPDM FKM |
Valves | EPDM FKM |
Motor | BLDC |
Connector Options | |
Default PA hose connector/ PP hose connector/ Stainless steel hose connector/ PC6 push-in quick connector/ PC8 push-in quick connector/ PA Rc1/8 inside thread/ Stainless steel Rc1/8 inside thread | |
Function Options | |
Basic wired control type Knob speed control Frequency speed control Touchscreen speed control Top configuration |
Models | C60L | ||
Versions | Simplified | Standard | Premium |
Fully Loaded Lifetime（hrs） | 5000 | 7500 | 10000 |
Unloaded Lifetime（hrs） | 8000 | 12000 | 15000 |
Motor Lifetime（hrs） | 10000 | 15000 | 20000 |
Test conditions | In a clean and non-corrosive laboratory, the pump is fully loaded (the outlet is blocked, the inlet is directly connected to the atmosphere) or unloaded (the inlet and outlet are directly connected to the atmosphere), and runs continuously around the clock; ambient temperature: 5℃～33 ℃, relative humidity: 50%-85%, fluctuates with the climate. | ||
Working Condition | |||
Operating temperature | Permissible ambient temperature is 0℃～50℃, it is not suitable to be exposed to the sun, and it should work in a clean and ventilated environmen | ||
Medium | Permissible temperature of the medium is 5℃～50℃, the transferring gas is allowed to be rich in water vapor, but cannot contain solid particles | ||
Wetted materials | EPDM, FKM as optional; fiber reinforced nylon, | ||
