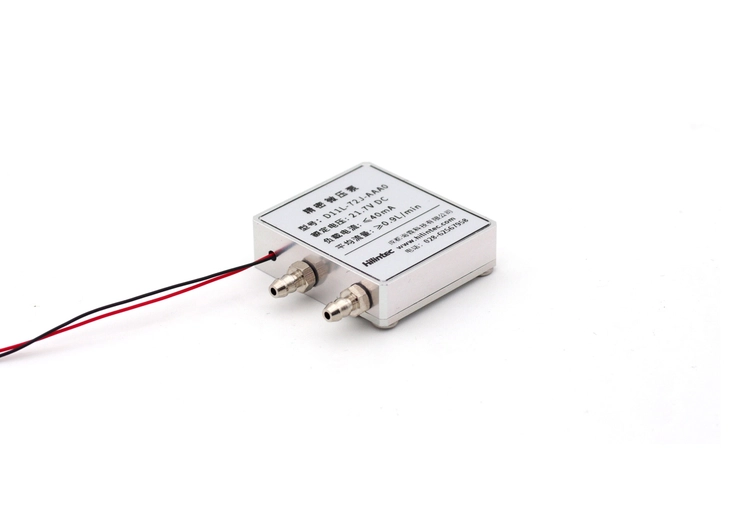

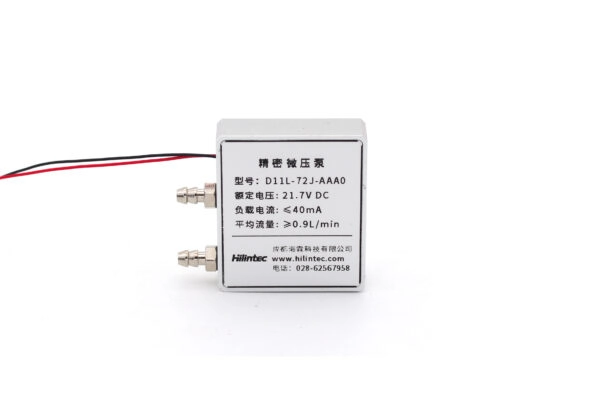

[Hilintec] D11 Precision Micro Pressure Gas Pump
The D11 is a compact precision micro pressure pump with flow control function.It has a small dimensions, long service life, low vibration and low noise level.the maximum average gas flow rate is 0.9L/min,The flow rate can be controlled by adjusting the input voltage.and the flow pulsation is extremely small.so it’s very suitable for scenes that require small volume, large flow, low pressure.If you are looking for small pump with lower flow-rate, please refer to C15 mini diaphragm pump product information
The overall size of the product is about 40*35*10mm; and the weight is about 30g, it is suitable for applications that require a very small space of air pumps.
Due to the completely different working mode from traditional air pumps, It has a flow output stability far exceeding that of diaphragm pumps, and the flow pulsation is extremely small.
The outer shell is made of aluminum alloy, which has a certain protection ability against external impact and has good air tightness.
Generally, small-volume air pumps have limited flow rate and service life. The D11 is designed for industrial applications and has the advantage of high reliability and large flow.
The flow rate can be controlled by adjusting the input voltage, and the flow rate has no obvious saltatory fluctuations during adjustment, a wide range of adjustments from 0L/min to 0.9L/min can be realized

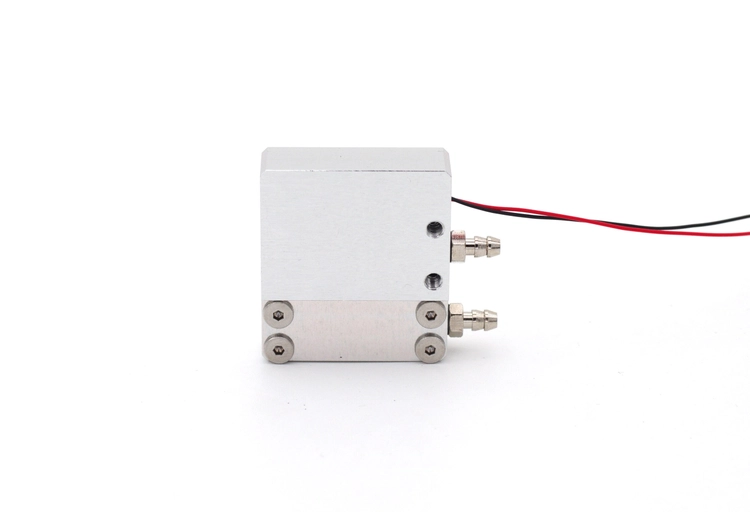

Under the premise of a small volume, a replaceable pneumatic connector is available, which can be equipped with copper hose connectors and M3 internal thread connectors.
Model | D11M |
Material Option | Pump Head: Ceramic Nitrile Polypropylene Pump Casing:Aluminum Alloy |
Voltage (V DC) | 21.7 |
Max. Load Current (mA) | ≤40 |
Max. Average Flow rate (L/min) | ≥0.9 |
Max. Peak Flow rate | ≥0.9 |
Note | The working voltage is 11V~21.7V,and the change of input voltage will affect the load current and flow. |
Material Options | |
Pump Head | Ceramic Nitrile Polypropylene |
Pump Casing | Aluminum Alloy |
Connector Options | |
Default copper hose connector/M3 internal thread |
Models | D11M |
Versions | Premium |
Lifetime（hrs） | 5000（Estimated） |
Test conditions | The pump inlet and outlet are directly connected to the atmosphere(dust-free and clean air),so that the pump works continuously under normal pressure for 24 hours without stopping.In a clean and non-corrosive laboratory, the ambient temperature fluctuates with the climate from 5 to 33°C. |
Working Condition | |
Operating temperature | The working ambient temperature of the pump is 0℃～40℃,the relative humidity is ≤90%,no |
Medium | Non-corrosive,oil-free and dust-free gas. |
Wetted materials | Ceramic,nitrile,polypropylene,aluminum alloy,copper etc; |
