[Hilintec] D15 Dual-Head Positive Negative Pressure Mini Gas Pump

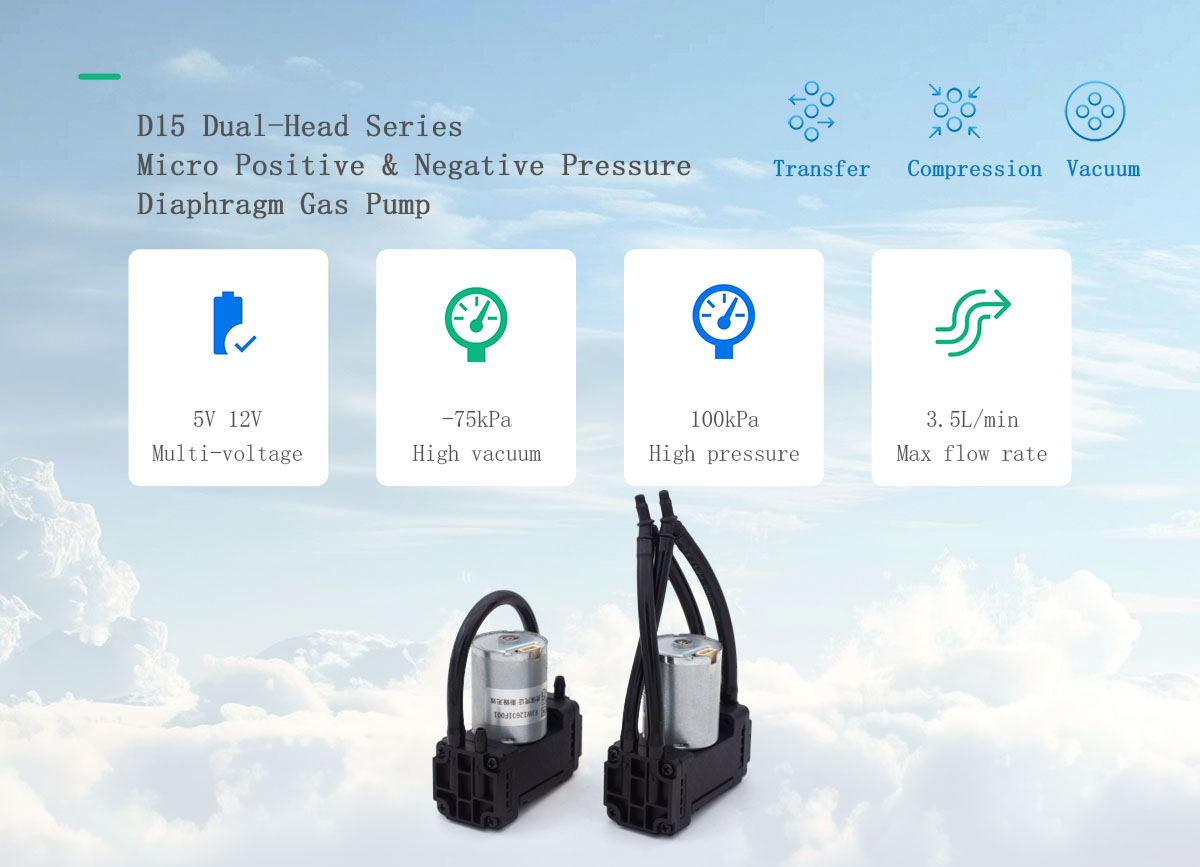

Overall Descriptions
The D15 series is a high-performance Mini gas pump engineered for continuous operation in demanding environments. Designed with a dual-head configuration (available in series for high pressure or parallel for high flow), this pump delivers exceptional vacuum and pressure capabilities within a remarkably compact footprint. Powered by a long-life brushless DC motor, the D15 is built for 7/24 continuous duty, offering industrial-grade reliability for applications such as gas sampling, analytical instruments, medical devices, and industrial automation.
![[Hilintec] D15 Dual-Head Positive Negative Pressure Mini Gas Pump](https://cdn.imweb.me/upload/S20230222eba237754dd0e/fc93a664811f6.jpg)
Dual‑Head High Performance (High Flow / High Pressure Versions)
The D15 series comes in two optimized configurations to match different application demands. The D15PB (series) model delivers exceptional positive pressure (100 kPa) and strong vacuum (-75 kPa), making it ideal for applications requiring high sealing force or strong suction. The D15HB (parallel) model prioritizes volume, achieving a peak flow rate of 3.2 L/min (average 2.0 L/min) for applications requiring rapid sampling or inflation. This flexibility allows you to select the perfect balance of pressure and flow for your specific use case.If you need a single-head pump of this series, please visit D15L
Compact Vacuum Pump & Compressor
The overall size of the this high efficiency micro diaphragm pump(equipped with a brushless BL tpye motor) is about 56x49x25mm,it is suitable for applications that require a very small space of air pumps.

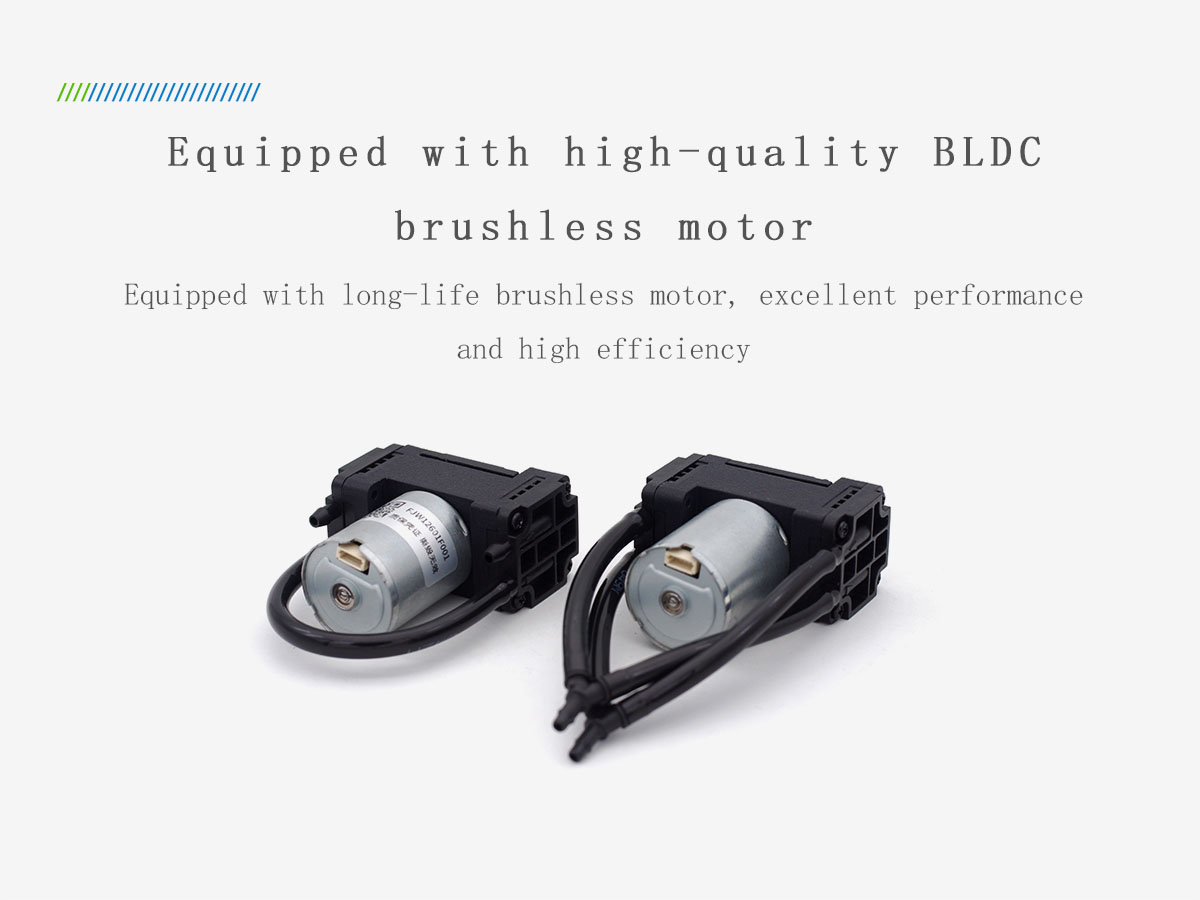

Premium Brushless DC Motor Drive
Equipped with a long‑life BLDC motor, the pump offers low electromagnetic interference, low heat generation, and high efficiency. It supports full‑load restart capability and stable continuous operation even under maximum pressure or vacuum load, ensuring consistent performance in demanding environments.
![[Hilintec] D15 Dual-Head Positive Negative Pressure Mini Gas Pump](https://cdn.imweb.me/upload/S20230222eba237754dd0e/f97b75d0eb548.jpg)
Complete Self‑Protection Mechanism
The pump integrates multiple safety protections: over‑current protection, locked‑rotor protection, and reverse‑polarity protection. These prevent damage from miswiring, excessive load, or system faults, improving overall system stability and service life.

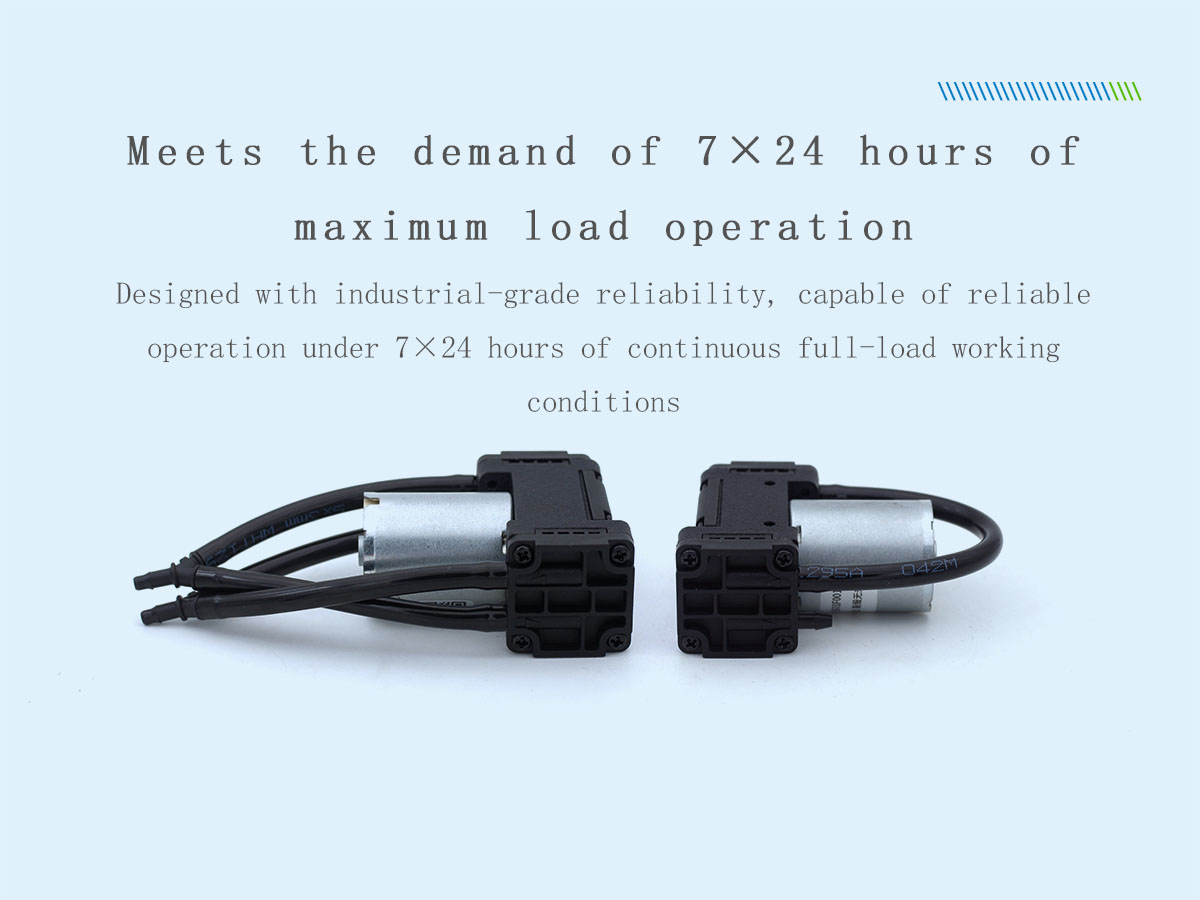

Industrial-grade Reliability
Unlike pumps designed for intermittent home use, the D15 is built for the rigors of industrial applications. It has passed rigorous life tests at our dedicated aging and life laboratory. The pump is designed for 7/24 continuous duty under maximum load (e.g., fully stalled inlet or outlet). It achieves a 6,000-hour full-load lifespan, an 8,000-hour no-load lifespan, and the BLDC motor itself has a design life of 10,000 hours. This reliability ensures minimal downtime and a longer operational life for your equipment.
![[Hilintec] D15 Dual-Head Positive Negative Pressure Mini Gas Pump](https://cdn.imweb.me/upload/S20230222eba237754dd0e/5fac233ec8ef6.jpg)
Speed Control Function for Mini Gas Pump
For brushless motor version, the flow rate of the pump can be changed by adjusting the motor speed through PWM signal.
Speed Control Feature
For brushless motor version, the flow rate of the pump can be changed by adjusting the motor speed through PWM signal.

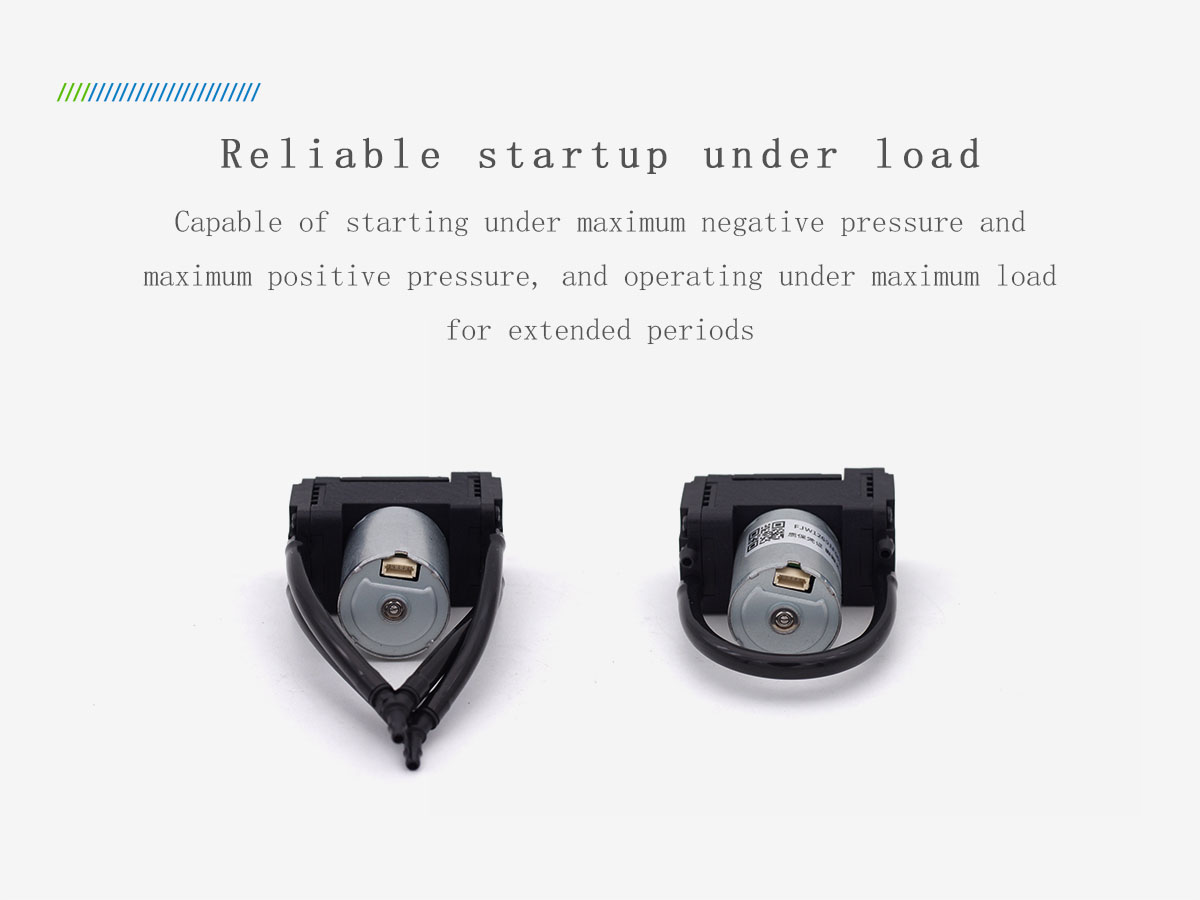

Reliable Start-Up Under Full Load
A common issue with many miniature pumps is the inability to start under a significant pressure differential. The D15 excels in this area. It is designed for stable and reliable start-up even when operating at maximum positive pressure (100 kPa) or maximum vacuum (-75 kPa). Furthermore, it can run continuously under these extreme loads without damage, providing exceptional robustness for your most challenging applications.
![[Hilintec] D15 Dual-Head Positive Negative Pressure Mini Gas Pump](https://cdn.imweb.me/upload/S20230222eba237754dd0e/a7a103dbdbe85.jpg)
Wide Voltage Compatibility
Available in 5 V DC and 12 V DC versions with ±10% voltage tolerance, supporting flexible power supply from batteries, adapters, or industrial control systems. Low current draw ensures energy efficiency.

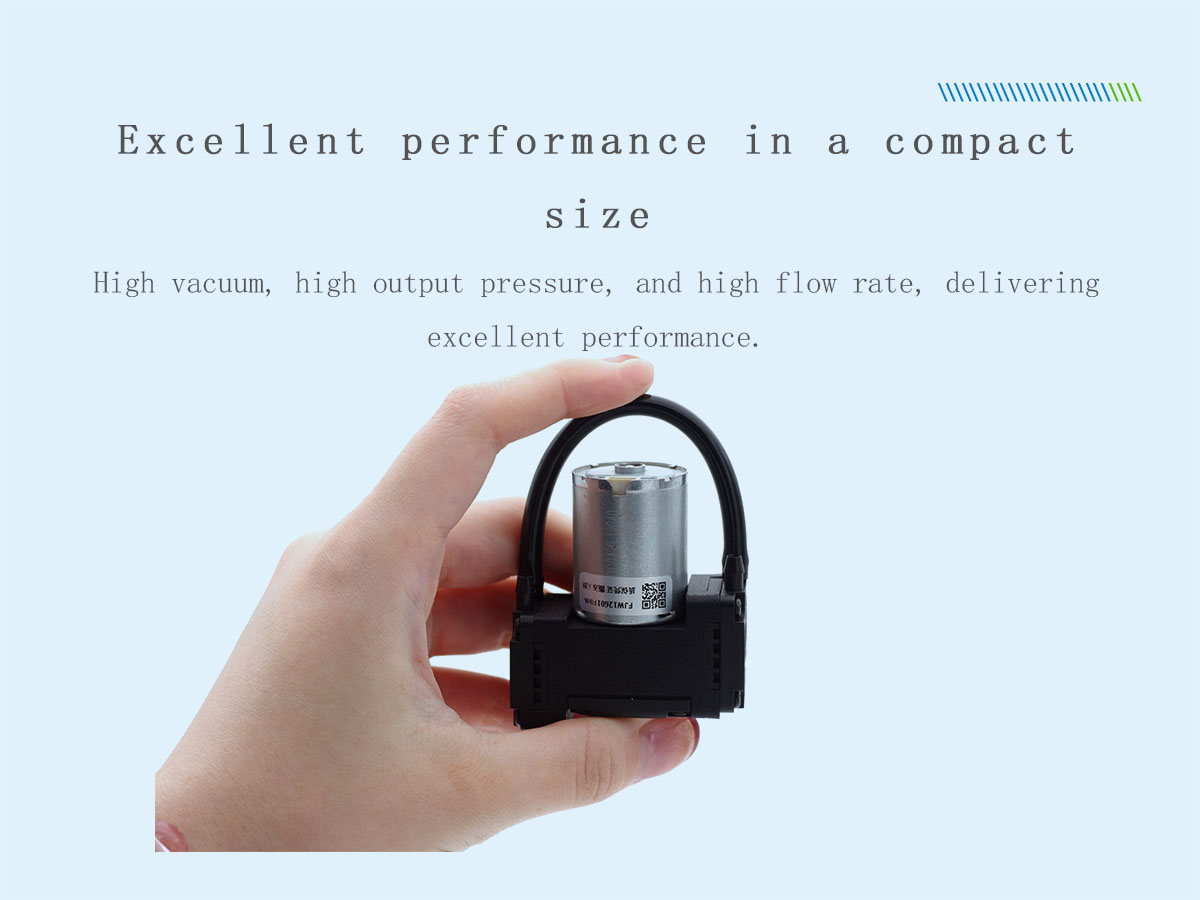

Compact, Lightweight & Easy Installation
Weighing only 80g, the pump has a miniaturized outline for tight‑space integration. It supports anti‑vibration mounting feet to reduce noise and transfer. Standard 3 mm ID hose barb connectors allow fast, secure tubing connection.
![[Hilintec] D15 Dual-Head Positive Negative Pressure Mini Gas Pump](https://cdn.imweb.me/upload/S20230222eba237754dd0e/157d6e6dc8c74.jpg)
D15 PERFORMANCE DATA
Model | D15HB-BL5 | D15HB-BL2 | D15PB-BL5 | D15PB-BL2 |
Material Option | Diaphragm: EPDM Valves: EPDM Pump Head: PA6 | Diaphragm: EPDM Valves: EPDM Pump Head: PA6 | Diaphragm: EPDM Valves: EPDM Pump Head: PA6 | Diaphragm: EPDM Valves: EPDM Pump Head: PA6 |
Voltage(V DC) | 5 | 12 | 5 | 12 |
Max. Load Current (A) | <0.4 | <0.2 | <0.4 | <0.2 |
Max. Average Flow rate(L/min) | >2 | >2 | >1.6 | >1.6 |
Max. Peak Flow rate | >3.2 | >3.2 | >2.6 | >2.6 |
Max. Vacuum (-kPa) | >45 | >45 | >75 | >75 |
Max. Pressure(kPa) | >45 | >45 | >100 | >100 |
D15 CONFIGRATION OPTIONS
Material Options | |
Pump Head | Fiber reinforced PA |
Diaphragm | EPDM |
Valves | EPDM |
Motor | Brushless DC |
Connector Options | |
Default hose connector |
D15 RELIABILITY DATA
Models | D15PB with BL brushless motor | D15HB with BL brushless motor |
Versions | Standard | Standard |
Fully Loaded Lifetime(hrs) | 6000 | 6000 |
Unloaded Lifetime(hrs) | 8000 | 8000 |
Motor Lifetime(hrs) | 10000 | 10000 |
Test conditions | In a clean and non-corrosive laboratory, the pump is fully loaded (the outlet is blocked, the inlet is directly connected to the atmosphere) or unloaded (the inlet and outlet are directly connected to the atmosphere), and runs continuously around the clock; ambient temperature: 5~33 degrees, relative humidity: 50%-85%, fluctuates with the climate. | |
Working Condition | ||
Operating temperature | Permissible ambient temperature is 0~50 degrees, it is not suitable to be exposed to the sun, and it should work in a clean and ventilated environment | |
Medium | Permissible temperature of the medium is 0~40 degrees, the transferring gas is allowed to be rich in water vapor, but cannot contain solid particles | |
Wetted materials | EPDM, fiber reinforced PA, tolerance to alcohol, acid, alkali, etc. (except strong acid, concentrated acid, lipids, benzene, gasoline, etc.) | |
