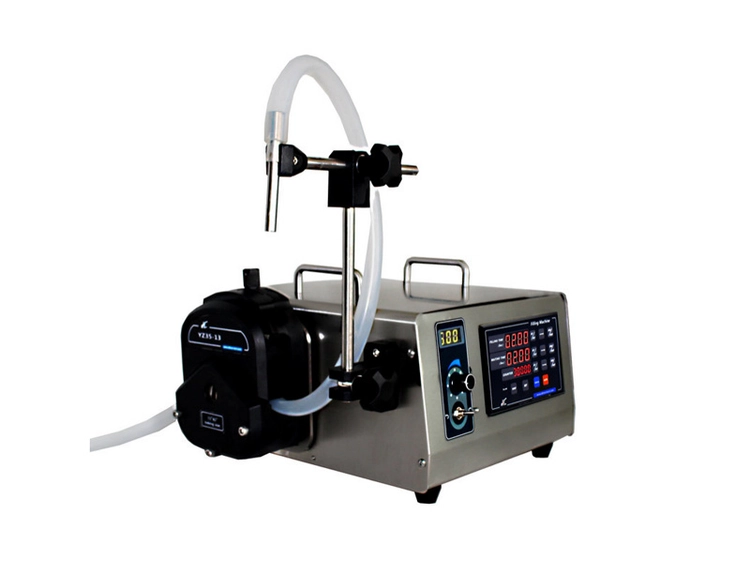

[Ditron-tech] GR1-3Z Plus

Name: [Ditron-tech] GR1-3Z Plus
Brand: Ditron-tech
Availability: InStock

0원

Flow range: 0–12 L/min (per channel)

Filling volume range: 0.1–200 L (per channel)

상품

원산지 CHINA

적립

0 포인트 적립예정 적립예정

배송

택배 · 기본 4,000원 · 도서산간 배송비 popover

120,000원 이상 구매 시 무료배송

구매평

Q&A

반품/교환

구매하기 장바구니 0

장바구니

구매하기 구매하기

구매평

Q&A

반품/교환

상품이 없습니다.

Number of Filling Nozzles	1	2
Filling Volume Setting Range	0.1-200L
Traffic Range	0-12L/min
Filling Mode	Three working modes are available: manual filling, automatic filling, and preset filling.
Display Function	4-digit LED display for filling operation time, 4-digit LED display for filling interval time, and 5-digit LED display for filling count.
Filling Time Setting	Set range: 0.01 seconds to 999.9 seconds
Interval Time Setting	Set range: 0.01 seconds to 999.9 seconds
Number of fillings	Displayed 59,999 times
Filling Cycle Setting	Two modes are available: cumulative count and preset count.
Method of Operation	Membrane button control offers convenience, speed, and reliability; the rotary encoder switch allows for precise flow rate adjustment.
Power-loss memory function	After power is restored, the parameters will remain unchanged from their pre-power-off state. Simply press the start button (or activate the foot switch) to resume operation using the previously set parameters.
Footswitch Control	Foot switch controls start and stop.
Filling Bracket	Standard filling bracket equipped, adjustable in height and length direction.
Filling nozzle	304 Stainless Steel Nozzle, Standard Configuration with 8mm Inner Diameter Nozzle
Power Consumption	<400W
Applicable Power Supply	AC 200–260 V, 50 Hz
Work environment	0–40°C, with humidity below 80% to prevent condensation.

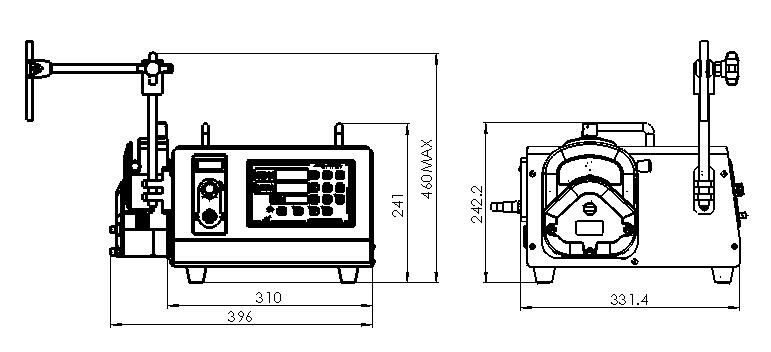

Dimensions	400mm × 330mm × 240mm (excluding the filling bracket)
Weight	18KG
Protection Level	IP31
