Simply slide the nut and ferrule on the tube, screwing them into the tube. The fittings need to use with ferrule.
Resistant to chemicals and organics, including PP, PTFE, PPS, POM and other materials
Used for standard rigid tubing OD 1.6/2.0/2.5/3.0/3.2mm, easy and fast installation.
Thread：1/4-28UNF，M6
REACH and ROHS Certified ,Biocompatibility reports available.
안내사항 |
가격 기재가 되지 않은 별도 문의 상품인 경우 반드시 '온라인 견적문의' 혹은 '전화 문의' 후 구매 부탁드립니다. 설치/교육 신청의 경우 별도의 연락 후 직접 납품 드립니다. |
[Fitting] Flangeless Fitting two-piece set M6나사탭 연결 아답터 피팅 PP 재질 M6Thread HPLC용 fitting
Flangeless fitting 시리즈
Flangeless Fitting two-piece set

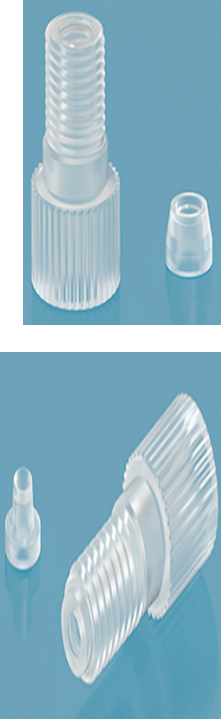

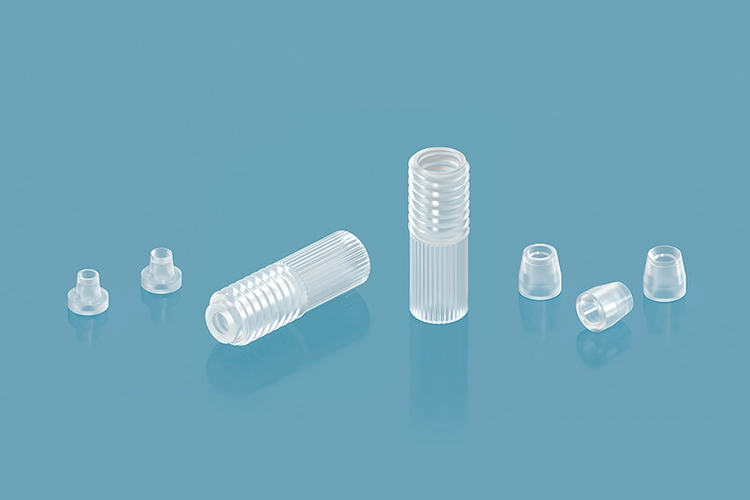

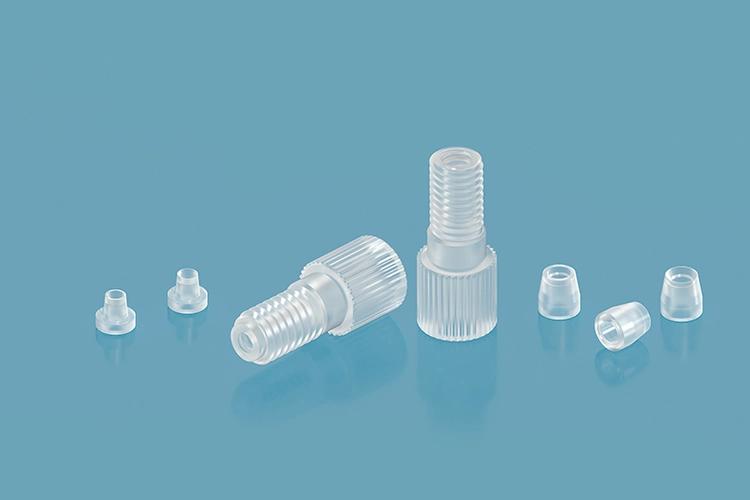

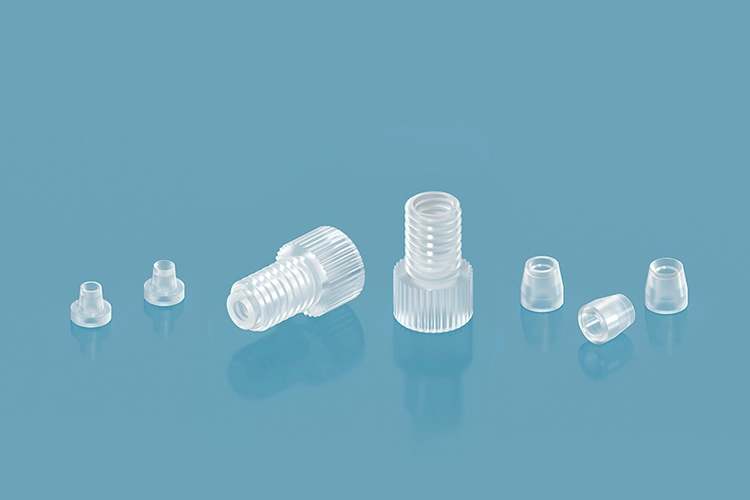

Flangeless Fittings benefits a lot for low pressure and gastight removable systems which comes with a nut and a ferrule as a unit set to connect rigid tubing of outer diameter 1.6/2.0/2.5/3.0/3.175/3.2mm into a same thread receiving port, it is very convenient to use by hand tightened without any tools and easy to mounting into fluid systems.
Video of Flangeless Fittings
Specification of Flangeless Fittings
| Photo | Product Code | Product Name | Model No. | Unit | Material | Tubing Size (mm) |
 | 1006010166 | Two-set Flangeless Fittings | WD10A-28P+YC-032P | Set | PP | OD 2.5/3.0/3.2 |
| 1006010167 | Two-set Flangeless Fittings | WD10A-28P+YC-030P | Set | PP | OD 2.5/3.0/3.2 | |
| 1006010168 | Two-set Flangeless Fittings | WD10A-28P+YC-025P | Set | PP | OD 2.5/3.0/3.2 | |
| 1006010169 | Two-set Flangeless Fittings | WF10A-28P+YE-020P | Set | PP | OD 1.6/2.0 | |
| 1006010170 | Two-set Flangeless Fittings | WF10A-28P+YE-016P | Set | PP | OD 1.6/2.0 | |
| 1006010171 | Two-set Flangeless Fittings | WD10A-28E+YC-032A | Set | PTFE*PFA | OD 2.5/3.0/3.2 | |
| 1006010172 | Two-set Flangeless Fittings | WD10A-28E+YC-030A | Set | PTFE*PFA | OD 2.5/3.0/3.2 | |
| 1006010173 | Two-set Flangeless Fittings | WD10A-28E+YC-025A | Set | PTFE*PFA | OD 2.5/3.0/3.2 | |
| 1006010174 | Two-set Flangeless Fittings | WF10A-28E+YE-020A | Set | PTFE*PFA | OD 1.6/2.0 | |
| 1006010175 | Two-set Flangeless Fittings | WF10A-28E+YE-016A | Set | PTFE*PFA | OD 1.6/2.0 | |
| 1006010176 | Flangeless Fittings | WD10A-M6-P-dark black | piece | PP | OD 2.5/3.0/3.2 | |
| 1006010177 | Flangeless Fittings | WD10A-M6-P-dark brown | piece | PP | OD 2.5/3.0/3.2 | |
| 1006010238 | Flangeless Fittings | WD10A-06P+YC-032P | Set | PP | OD 2.5/3.0/3.2 | |
| 1006010239 | Flangeless Fittings | WD08B-28P+YC-032P | Set | PP | OD 2.5/3.0/3.2 | |
| 1006010240 | Flangeless Fittings | WD10A-28E-Purple+YC-032E | Set | PTFE | OD 2.5/3.0/3.2 | |
| 1006010241 | Flangeless Fittings | WF10A-M6E+YE-016A | Set | PTFE*PFA | OD 1.6/2.0 | |
| 1006010242 | Flangeless Fittings | WF10A-M6E+YE-020A | Set | PTFE*PFA | OD 1.6/2.0 | |
| 1006010243 | Flangeless Fittings | WD10A-M6E+YC-025A | Set | PTFE*PFA | OD 2.5/3.0/3.2 | |
| 1006010244 | Flangeless Fittings | WD10A-M6E+YC-030A | Set | PTFE*PFA | OD 2.5/3.0/3.2 | |
| 1006010245 | Flangeless Fittings | WD10A-M6E+YC-032A | Set | PTFE*PFA | OD 2.5/3.0/3.2 | |
| 1006010246 | Flangeless Fittings | WF10A-M6P+YE-016P | Set | PP | OD 1.6/2.0 | |
| 1006010247 | Flangeless Fittings | WF10A-M6P+YE-020P | Set | PP | OD 1.6/2.0 | |
| 1006010248 | Flangeless Fittings | WD10A-M6P+YC-025P | Set | PP | OD 2.5/3.0/3.2 | |
| 1006010249 | Flangeless Fittings | WD10A-M6P+YC-030P | Set | PP | OD 2.5/3.0/3.2 | |
 | 1006010252 | Flangeless Fittings | WF08B-28P+YE-016P | Set | PP | OD 1.6/2.0 |
| 1006010253 | Flangeless Fittings | WF08B-28P+YE-020P | Set | PP | OD 1.6/2.0 | |
 | 1006010254 | Flangeless Fittings | WF03G-28P+YE-016P | Set | PP | OD 1.6/2.0 |
| 1006010255 | Flangeless Fittings | WF03G-28P+YE-020P | Set | PP | OD 1.6/2.0 |

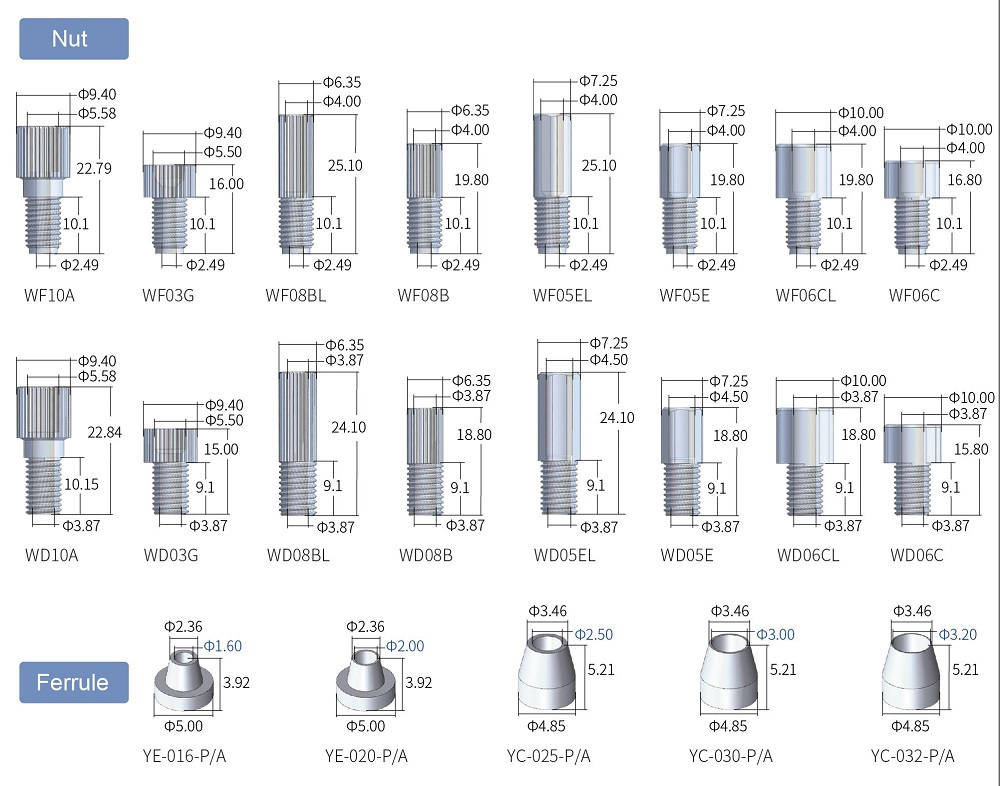

Dimension (unit: mm)
Application Note of Flangeless Fittings

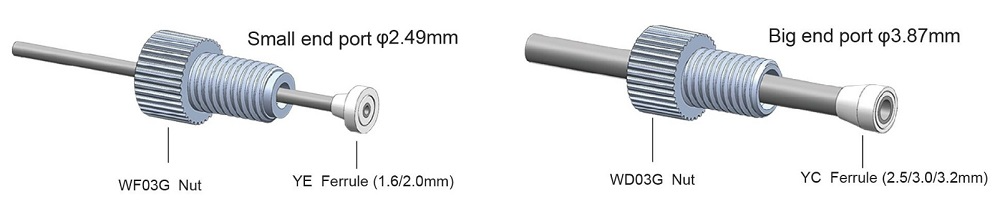

1. Choose 1/4-28 nut when receiving port is 1/4-28; Choose M6 nut when receiving port is M6.
2. Before connecting fittings, ensure the end of the tubing has a clean, square, burr-free cut. This is very important, as the square cut helps the tubing make full contact with the bottom of the mating port. Neglecting to properly cut the tubing could lead to dead volume, resulting in peak distortion such as fronting, tailing or broadening.
3. Two-Piece Fittings Installation Steps:

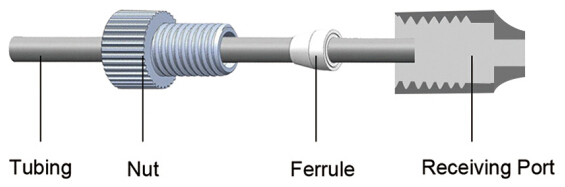

a. Slide the nut, followed by the ferrule, at least 3/16” (4.7625mm) from the end of the clean cut tubing
b. Insert the assembly into the receiving port, pushing the tubing into the port until it bottoms out.
c. Finger tighten the nut into the port until snug.
d. After several uses (especially at high pressure) the ferrule should be replaced.
