[CHONRY] UTF04 Filling System Machine Servo Motor
개요

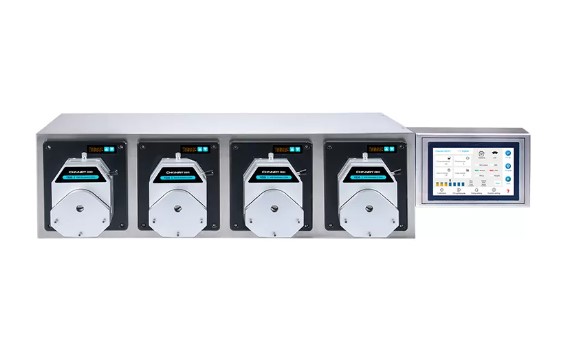

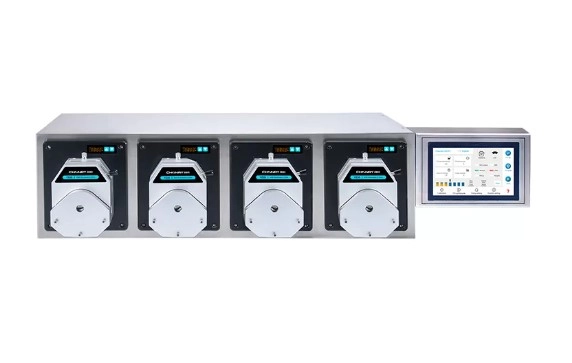

UTF04 is an intelligent filling system peristaltic pump independently developed by Chonry Pump Industry.
The UTF04 dispensing filling system adopts a servo motor. Stable flow rate.

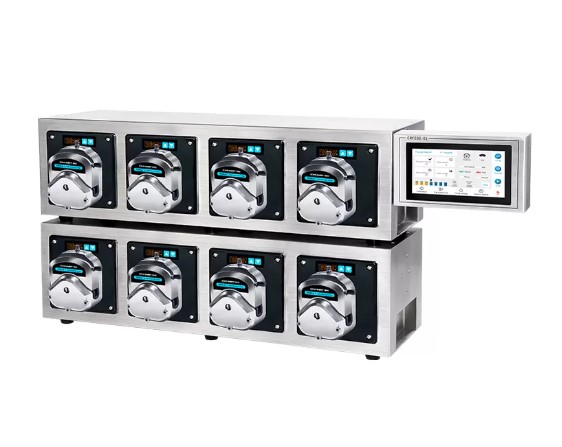

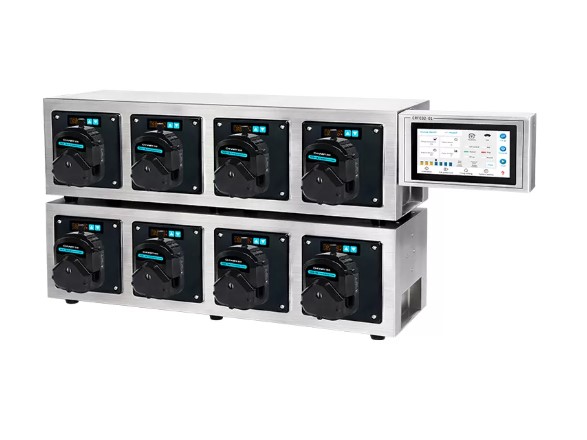

The standard drive unit of the system is 4 channels (2 3 4 5 6) optional and can be expanded to 32 channels at most. It can install various pump heads such as YZ35, YZ35-13, etc.,
and adapt to various specifications of hoses, providing customers with a variety of choices to meet a variety of applications.
The main controller adopts a 7-inch or 10-inch industrial touch screen, the operation is simple, clear, and easy to use, and the functions are rich and easy to use.
Features and Benefits
Adopt a 7-inches or 10-inches industrial touch screen, easy to operate
Support RS485/Modbus communication protocol, which can be used according to customized upon request
One key full speed, realize quickly filling or emptying the tube
Stainless steel housing, adopts stainless steel shell, high strength and corrosion resistant
The transfer direction is controllable, meets more requirements

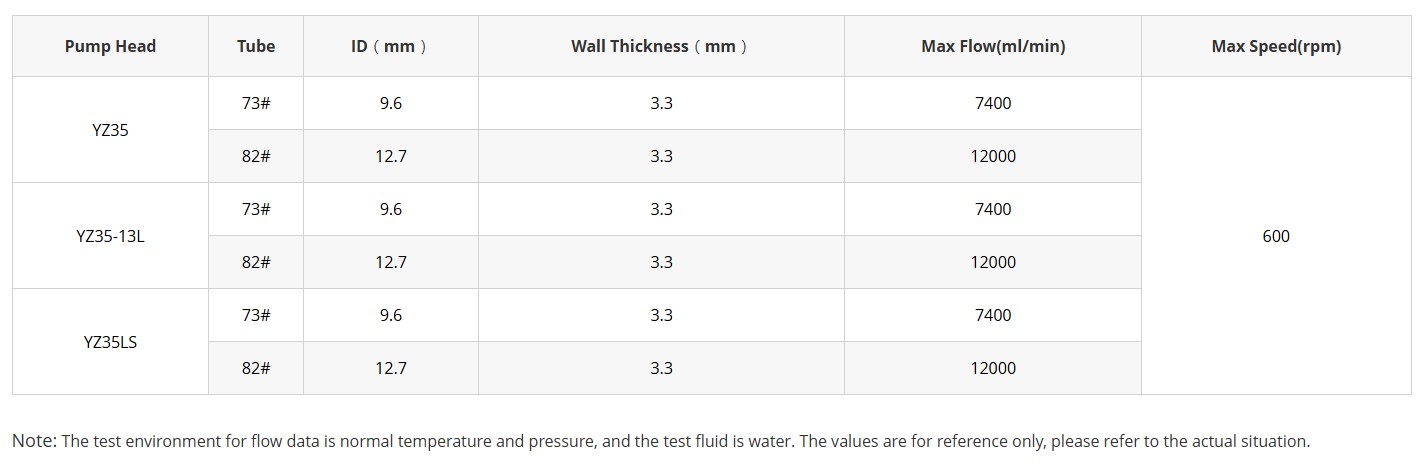

Various pump heads such as YZ35 and YZ35-13 can be installed
Applications
The UTF04 peristaltic pump filling system can handle the transfer and production filling of a variety of liquids:
- Food (e.g. pizza sauce dispensing)
- Beverage supply equipment(e.g. juice,milk production)
- Pharmaceutical production
- Chemical
- Cosmetic dispensing
