Single-channel push-pull syringe pump can be used for two-way circulation.
Suitable for small flow,
high precision,
continuous transmission
안내사항 |
가격 기재가 되지 않은 별도 문의 상품인 경우 반드시 '온라인 견적문의' 혹은 '전화 문의' 후 구매 부탁드립니다. 설치/교육 신청의 경우 별도의 연락 후 직접 납품 드립니다. |

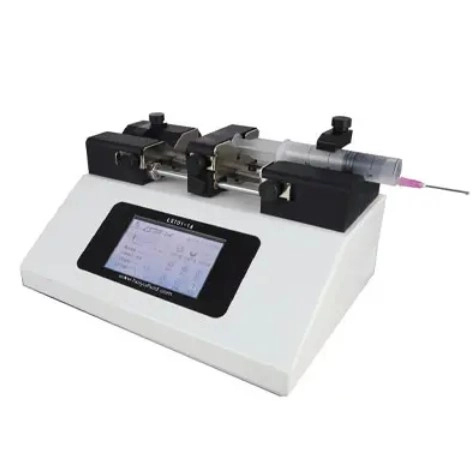

[HUIYU] LST01-1A
[ Laboratory Syringe Pump / single-channel injection pump / touch screen syringe pump ]
Introduction
LST01-1A micro volume touch screen syringe pumps is single channel syringe pump which is mainly used in bio-laboratory. The acceptable syringe specification is from 10 μL to 10 mL. Suitable for high accuracy and small flow rate liquid transferring.
Technical specification
Syringe pump operating modes: push-pull mode
number of syringe：1
Maximum stroke：78mm
Stroke Resolution：0.156μm
Linear velocity range：5μm/min-65mm/min(flow=Line speed×Sectional area of the syringe)
Line speed adjustment resolution：5μm/min
Stroke control accuracy：error≤±0.5%(stroke≥30% of the maximum stroke)
Rated linear thrust：＞90N
Option of syringe：the main syringe models of major manufacrurers for option
Syringe setting：can input the diameter of syringe directly
Flow calibration： more accurate flow of liquid by calibration
Operating parameters setting：dispensing volume and time etc
Parameter to be displayed：volume,flow,line speed
Power off memory：can select if work as the previous status before power off when re-powered
Signal output：2 way OC gate signal output to indicate start/stop status.
Control signal input：2 way start/stop control terminal，1 way go down to control start/sotp by triger signal,
1way TTL level signal to control start/stop
commuication interface：RS485
power supply：AC 90V-260V/15W
Suitable temperature：0℃-40℃
Suitable humidity：relative humidity＜80%

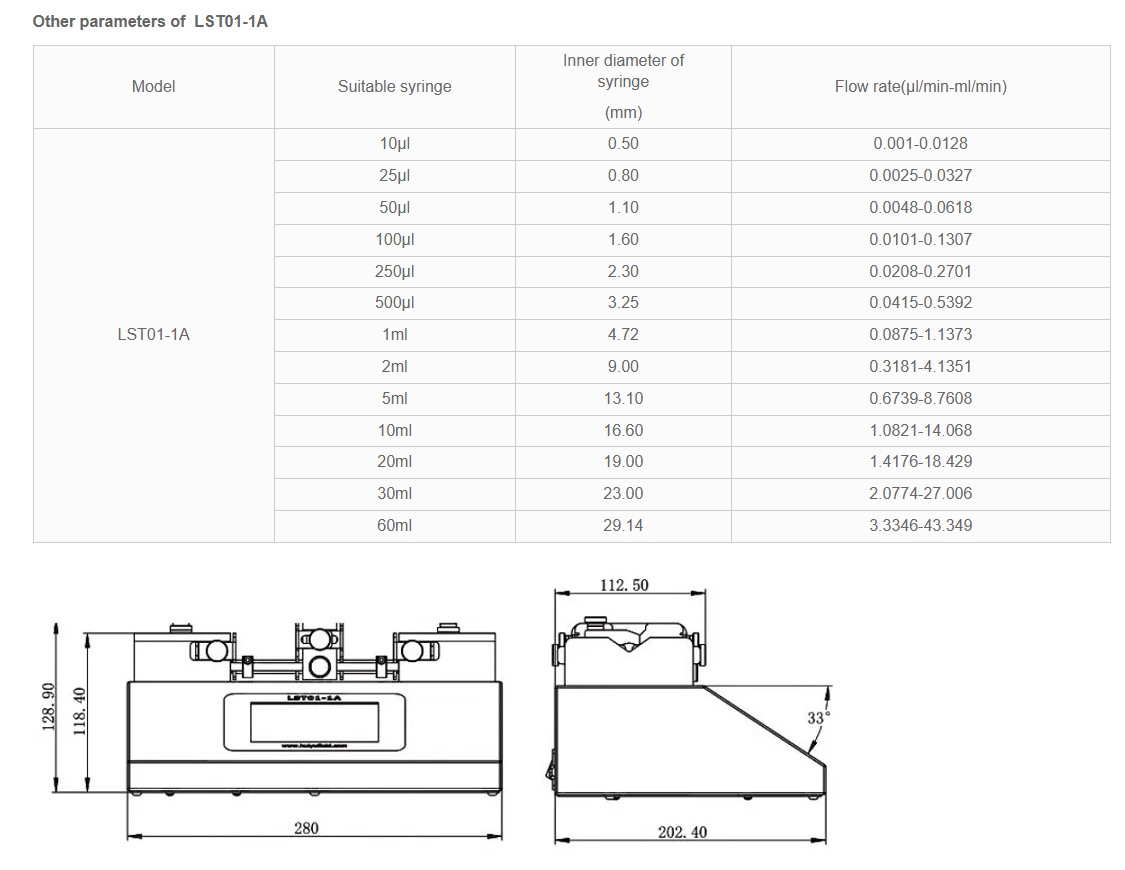

Measurements：280×210×140(mm)
Weight：3.6kg
Function and Features of LST01-1A
Syrige diameter input：can select syringe in list or input the data of diameter directly.
Userfriendly manu：Large LCD screen
Power off memory: 1.EEPROM save the set parameters after power, no need to re-set. 2. Under flow mode when power is restored
can continue to operate according to set parameters after power-up or stop
Jam protection function: When the working process of advancing the syringe pump mechanism is blocked, injection pump will stop
advancing mechanism work issued whistle alarm
RS485 communication with host PC
Exteral control：input / output control function
Flow calibration： more accurate flow of liquid by calibration
Syringe protection function:By adjusting the position of the stopper can prevent damage to the syringe
