high torque output and can stack multi pump heads
128×64 dot matrix LCD display both flow rate and motor speed
Flow rate calibration function
Single flow rate≤380ml/min
Max flow rate:380ml/min
안내사항 |
가격 기재가 되지 않은 별도 문의 상품인 경우 반드시 '온라인 견적문의' 혹은 '전화 문의' 후 구매 부탁드립니다. 설치/교육 신청의 경우 별도의 연락 후 직접 납품 드립니다. |
[HUIYU] BT100L-1A
[ Buy Peristaltic Pump / Intelligent Peristaltic Pump / Lab Peristaltic Pump / Longer Peristaltic Pump / Mini Peristaltic Pump / Peristaltic Hose Pump / Peristaltic Liquid Pump / Peristaltic Metering Pump / Peristaltic Pump Tubing / Peristaltic Tube Pump / Portable Peristaltic Pump ]
product description

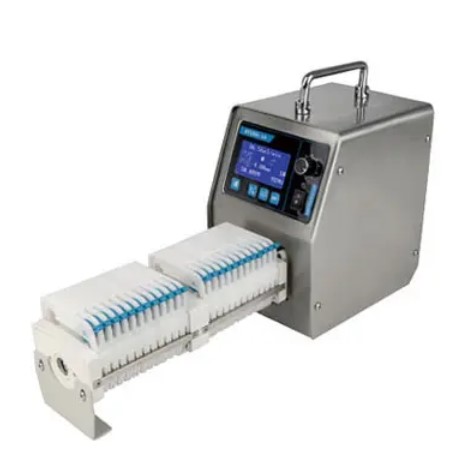

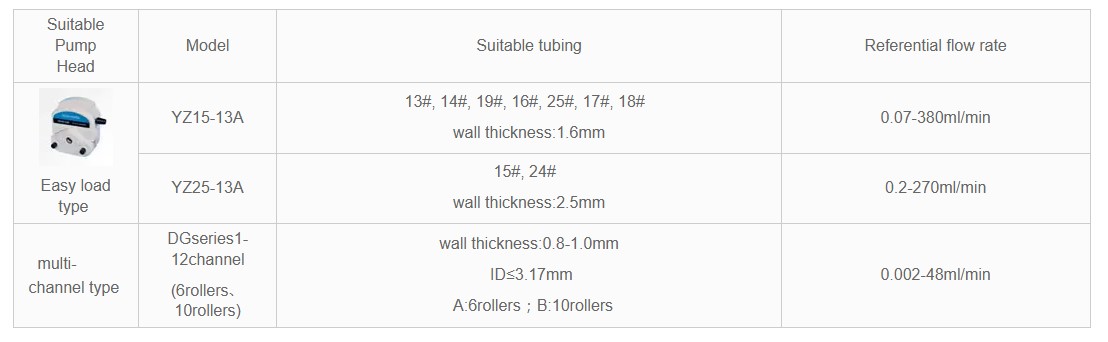

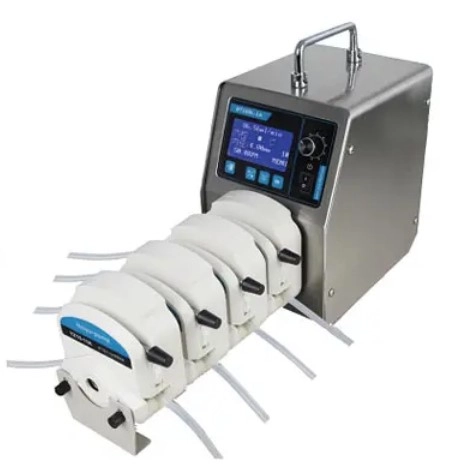

The drive output torque is large, and it can drive various multi-channel pump heads such as YZ series and DG series, which can provide a flow range of 0.02-380ml. The 128×64 dot matrix large-screen liquid crystal display information can simultaneously display the pump flow rate and speed with flow calibration function. it has start/stop, forward/reverse, full speed and other operation control functions. The operation is completed by membrane button and rotary encoder switch.
Features
Membrane button can control start and stop, direction, speed
● Quick filling and emptying function (maximum speed operation)
● Can communicate with the host computer
● External control signal can control start and stop, direction, speed
● Power-down memory function; leakage protection function; overheat protection function
● Replaceable different pump heads
Technical Parameters
Speed range: 1-100rpm, resolution 0.1 rpm
● External control interface: external control start and stop, direction, speed (0-5V/0-10V, 4-20mA)
● Display mode:LCD
●Communication method: RS485
● Output torque: 2Nm
● Applicable power supply: AC 220V ±20% 50~60Hz
● Power consumption: ≤55W
● Working environment: ambient temperature 0 ° C ~ 40 ° C relative humidity <80%

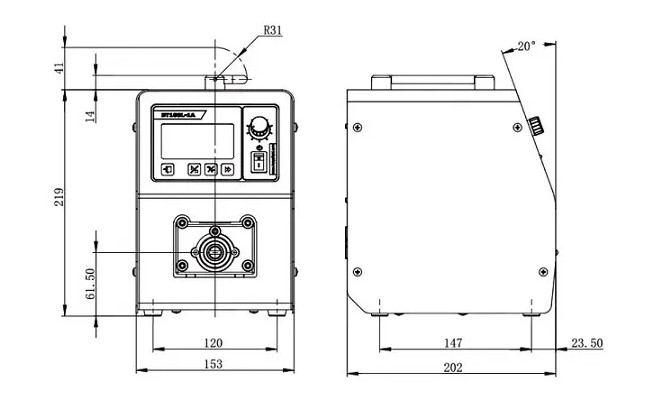

● Dimensions: 200 × 160 × 240 (length × width × height) mm
● Drive weight: 5.5kg
● Protection level: IP31
