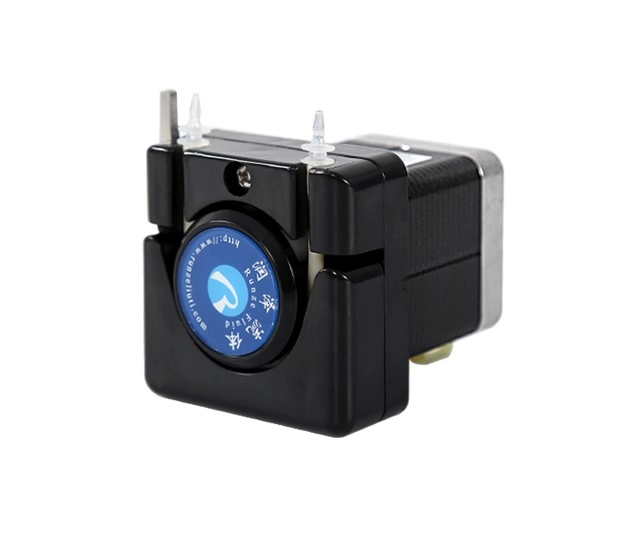

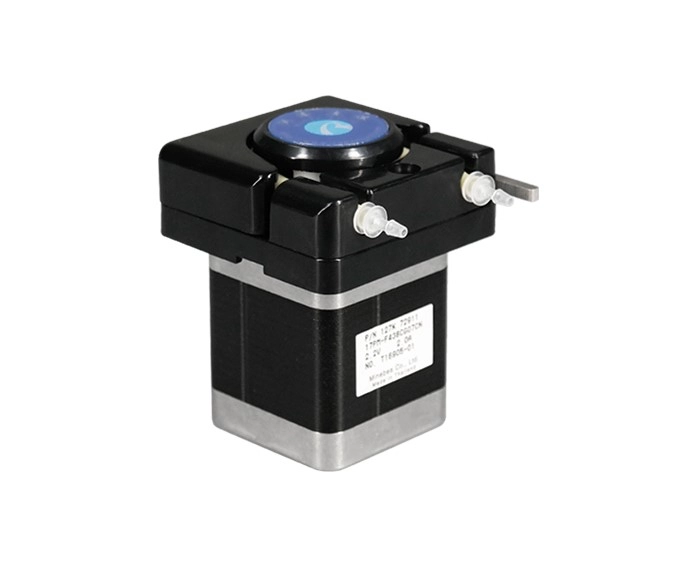

[RUNZE FLUID] RZ1030-4 Mini Peristaltic Pump

Name: [RUNZE FLUID] RZ1030-4 Mini Peristaltic Pump
Brand: RUNZE FLUID
Price: 607090 KRW
Availability: InStock

가격문의(상세정보 참조)

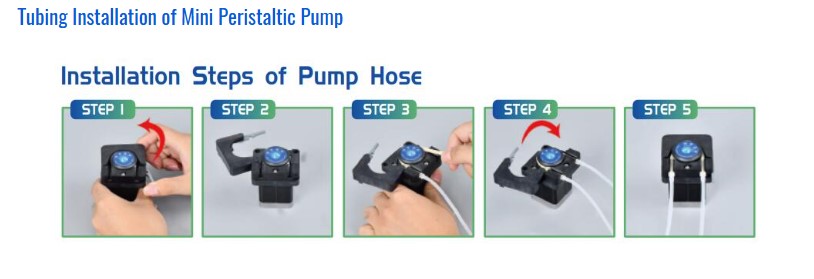

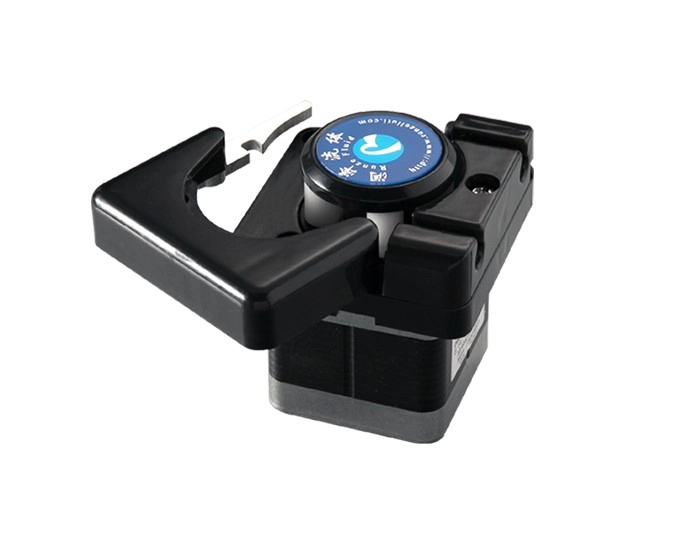

Small peristaltic pump BJ-RZ1030-4 was composed of high precision stepper motor to achieve reliable performance on small flow rate transfer and flip-top mechanism pump head to achieve fast tube loading, one-touch installation and small footprint make it very popular in compact space-saving instrument to dispense few milliliter fluids.

상품

원산지 CHINA

적립

60,709 포인트 적립예정 적립예정

배송

택배 · 기본 4,400원 · 도서산간 배송비 popover

구매평

Q&A

반품/교환

구매평

Q&A

반품/교환

상품이 없습니다.

Model No.	BJ-RZ1030-4	BJ-RZ1030B

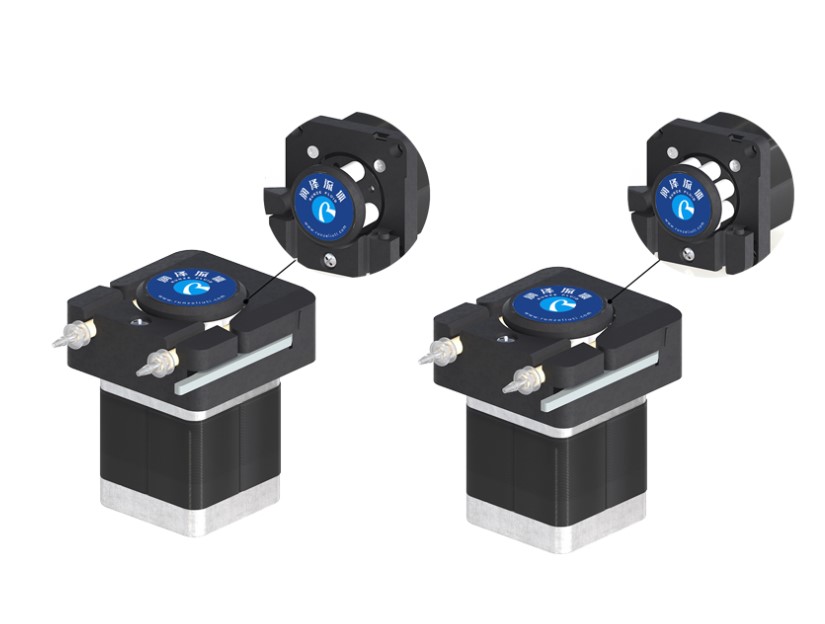

Pump Roller	POM 4 rollers (low pulse)	POM 4 / 8 rollers (low pulse)
Pump Head Material	ABS engineering plastic	PPS
Motor type	NMB 1.8° 42 stepper motor	NMB 1.8° 42 stepper motor
Input voltage	24V DC	24V DC
Rated Current	1.1A	1.1A
Max Power	9.2W	9.2W
Motor Speed	0-400rpm	0-400rpm
Flow Range	12.5-170ml/min	9-183ml/min
Tubing Size	ID0.64-3.0mm WT0.8-1.0mm OD≤5mm	ID0.64-3.0mm WT0.8-1.0mm OD≤5mm

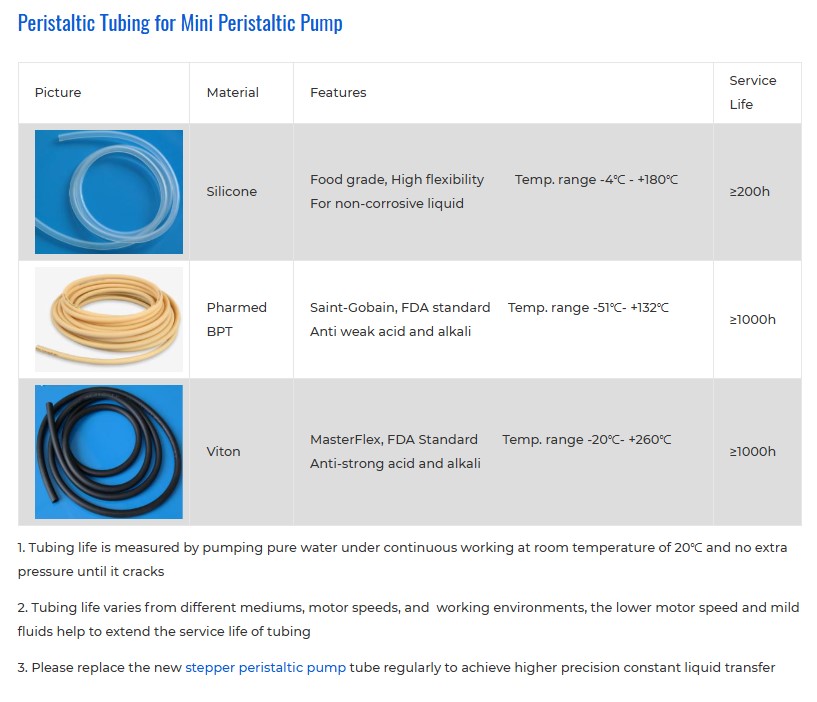

Tubing Life	Silicone≥200H BPT Rubber≥1000H Viton≥1000H	Silicone≥200H BPT Rubber≥1000H Viton≥1000H
Pressure Rating	Up to 2 bar（30psi）	Up to 2 bar（30psi）
Working Environment	0-40℃, ≤80％ non-condensing	0-40℃, ≤80％ non-condensing
Max DB	70db	70db
Suction	About 5 meters	About 5 meters

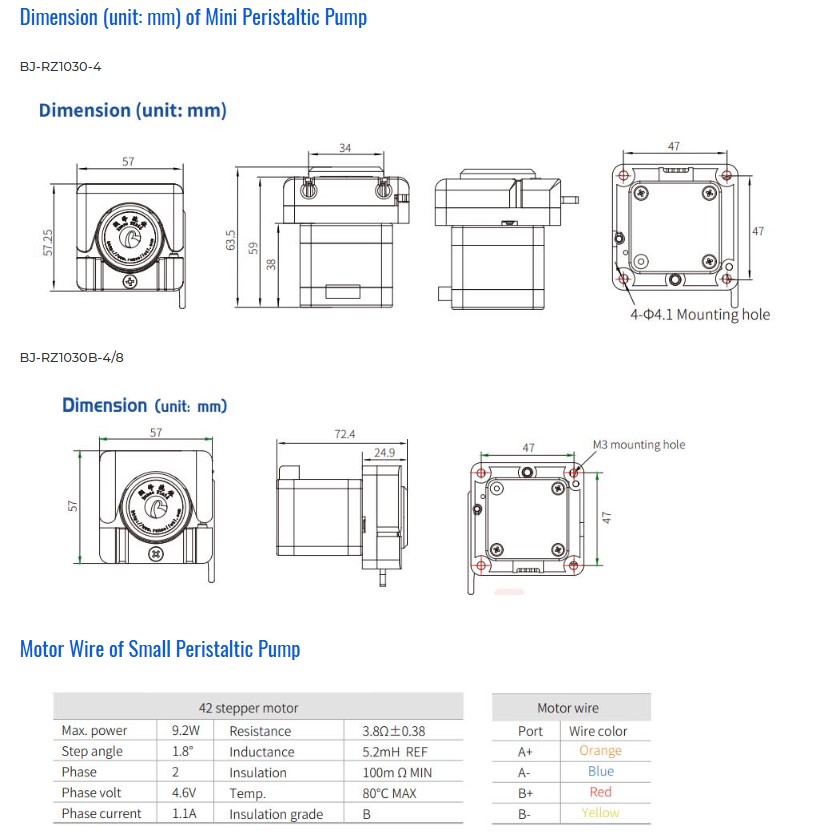

Dimension (LWH)	575763.5mm	575772.4mm
Net Weight	424g	432g

Model	Tubing	BPT Rubber Tube														Silicone Tube
RZ-1030-4	ID(mm)	0.8mm														1.0mm
	WT(mm)	0.64	0.76	0.89	1.02	1.14	1.3	1.42	1.52	1.65	1.85	2.06	2.29	2.54	2.79	1	2	3
	Max flow rate (ml/min)	12.5	17.3	22	28.2	33.4	42.5	51.9	59.4	72.2	89	101.9	112.6	137.6	146.9	26.1	105	170
RZ-1030B	ID(mm)	0.8mm														1.0mm
RZ-1030B	WT(mm)	0.64	0.76	0.89	1.02	1.14	1.3	1.42	1.52	1.65	1.85	2.06	2.29	2.54	2.79	1	2	3
4 rollers	Max flow rate (ml/min)	12	15	18	25	32	38	47	50	56	70	87	94	113	128	24	74	183
8 rollers	Max flow rate (ml/min)	9	14	14	21	27	32	38	42	43	55	61	71	77	81	17	57	114

Model No.	BJ-RZ1030-4	BJ-RZ1030B
Pump Roller	POM 4 rollers (low pulse)	POM 4 / 8 rollers (low pulse)
Pump Head Material	ABS engineering plastic	PPS
Motor type	NMB 1.8° 42 stepper motor	NMB 1.8° 42 stepper motor
Input voltage	24V DC	24V DC
Rated Current	1.1A	1.1A
Max Power	9.2W	9.2W
Motor Speed	0-400rpm	0-400rpm
Flow Range	12.5-170ml/min	9-183ml/min
Tubing Size	ID0.64-3.0mm WT0.8-1.0mm OD≤5mm	ID0.64-3.0mm WT0.8-1.0mm OD≤5mm
Tubing Life	Silicone≥200H BPT Rubber≥1000H Viton≥1000H	Silicone≥200H BPT Rubber≥1000H Viton≥1000H
Pressure Rating	Up to 2 bar（30psi）	Up to 2 bar（30psi）
Working Environment	0-40℃, ≤80％ non-condensing	0-40℃, ≤80％ non-condensing
Max DB	70db	70db
Suction	About 5 meters	About 5 meters
Dimension (LWH)	575763.5mm	575772.4mm
Net Weight	424g	432g

Model	Tubing	BPT Rubber Tube														Silicone Tube
RZ-1030-4	ID(mm)	0.8mm														1.0mm
	WT(mm)	0.64	0.76	0.89	1.02	1.14	1.3	1.42	1.52	1.65	1.85	2.06	2.29	2.54	2.79	1	2	3
	Max flow rate (ml/min)	12.5	17.3	22	28.2	33.4	42.5	51.9	59.4	72.2	89	101.9	112.6	137.6	146.9	26.1	105	170
RZ-1030B	ID(mm)	0.8mm														1.0mm
RZ-1030B	WT(mm)	0.64	0.76	0.89	1.02	1.14	1.3	1.42	1.52	1.65	1.85	2.06	2.29	2.54	2.79	1	2	3
4 rollers	Max flow rate (ml/min)	12	15	18	25	32	38	47	50	56	70	87	94	113	128	24	74	183
8 rollers	Max flow rate (ml/min)	9	14	14	21	27	32	38	42	43	55	61	71	77	81	17	57	114
