Autoclavable, stretchable
Continuous operating temperature -32°C to +240°C
Hardness: 75 A
Meets FDA standard, high sterility
Anti-thermal oxidation, ozone Aging, light aging and weather aging
안내사항 |
가격 기재가 되지 않은 별도 문의 상품인 경우 반드시 '온라인 견적문의' 혹은 '전화 문의' 후 구매 부탁드립니다. 설치/교육 신청의 경우 별도의 연락 후 직접 납품 드립니다. |
[Tubings] Viton tubing Peristaltic tubing, 튜빙펌프용 튜빙
FluorineRubber Material
Viton Tube시리즈

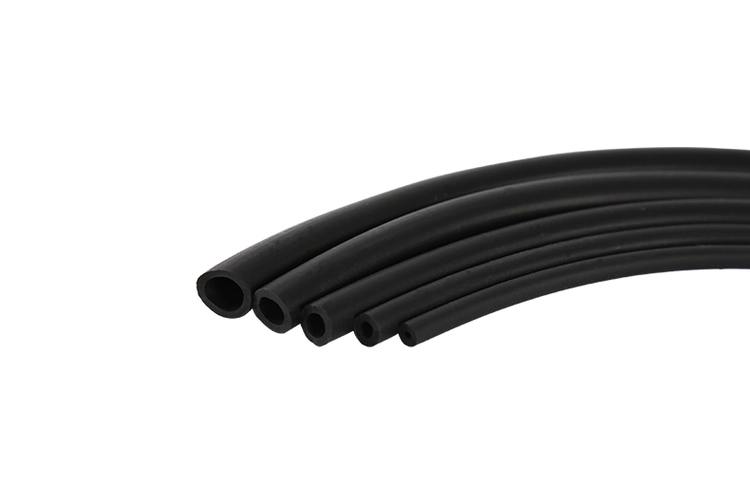

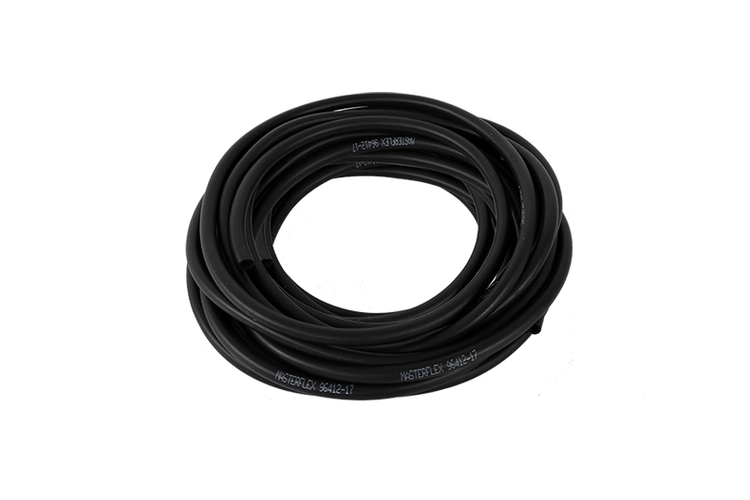

Viton Tube
FDA standards and USP CLASS VI standards compliance Viton tube is a type of black flexible tubing which is mostly used together with the peristaltic liquid pump to works as peristaltic tubing or external transfer tubing in low-pressure fluidic systems, it featured with strong corrosive resistance for chemicals or solvents, black look helps to protect sensitive fluids, mostly used in industrial or medical fields.
If you want to get high-quality Viton rubber tubing at a low price, please contact us! Runze Fluid is a professional and reliable Viton tube supplier that has extensive experience in supplying tubings.
Video of Silicone Tube
Specification of Viton Tube
| Photo | Product Code | Product Name | Model No. (unit:mm) | Specification (CN) (unit:mm) | Unit |
 | 1005020001 | Viton Tube | 9763238（1.65*3.25） | ID1.65*OD3.25*WT0.8*FluorineRubber Material | meter |
| 1005020002 | Viton Tube | 9763246（2.54*4.14） | ID2.54*OD4.14*WT0.8*FluorineRubber Material | meter | |
| 1005020003 | Viton Tube | 96412-16(16#) | ID3.2*OD6.4*WT1.6 | meter | |
| 1005020004 | Viton Tube | 9763242（2.06*3.66） | ID2.06*OD3.66*WT0.8*FluorineRubber Material | meter | |
| 1005020005 | Viton Tube | 96412-14(14#) | ID1.6*OD4.8*WT1.6 | meter | |
| 1005020006 | Viton Tube | 96412-17(17#) | ID6.4*OD9.6*WT1.6 | meter | |
| 1005020007 | Viton Tube | 96412-18(18#) | ID7.9*OD11.1*WT1.6 | meter | |
| 1005020008 | Viton Tube | 96412-25(25#) | ID4.8*OD8*WT1.6 | meter | |
| 1005020016 | Viton Tube | 9763228（1.02*2.62） | ID1.02*OD2.62*WT0.8*FluorineRubber Material | meter | |
| 1005020025 | Viton Tube | 96412-13(13#) | ID0.8*OD4.0*WT1.6*FluorineRubber Material | meter |
Name | Viton tube |

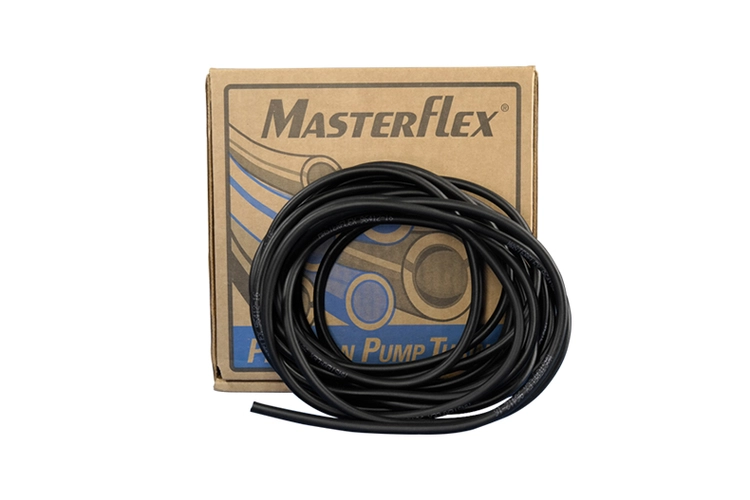

Brand | MasterFlex, USA |
Color | Black |
Temperature | -32℃-204℃ |
Hardness | 75A degree |
Model Number (unit: mm) of Viton Tube
Model No. | Tube No. | ID (inner diameter) | OD (outer diameter) | WT (wall thickness) |
| 96412-13 | #13 | 0.8 | 4.0 | 1.6 |
96412-14 | #14 | 1.6 | 4.8 | 1.6 |
96412-16 | #16 | 3.2 | 6.4 | 1.6 |
96412-25 | #25 | 4.8 | 8.0 | 1.6 |
96412-17 | #17 | 6.4 | 9.6 | 1.6 |
96412-18 | #18 | 7.9 | 11.1 | 1.6 |
| 9763228 | / | 1.02 | 2.62 | 0.8 |
9763238 | / | 1.65 | 3.25 | 0.8 |
9763242 | / | 2.06 | 3.66 | 0.8 |
9763246 | / | 2.54 | 4.14 | 0.8 |
